Configuration sample 3: „dial in“
Enables company LAN access for home office, remote
maintenance reps.
Routing between two networks. A route have to be configured on both PC`s.

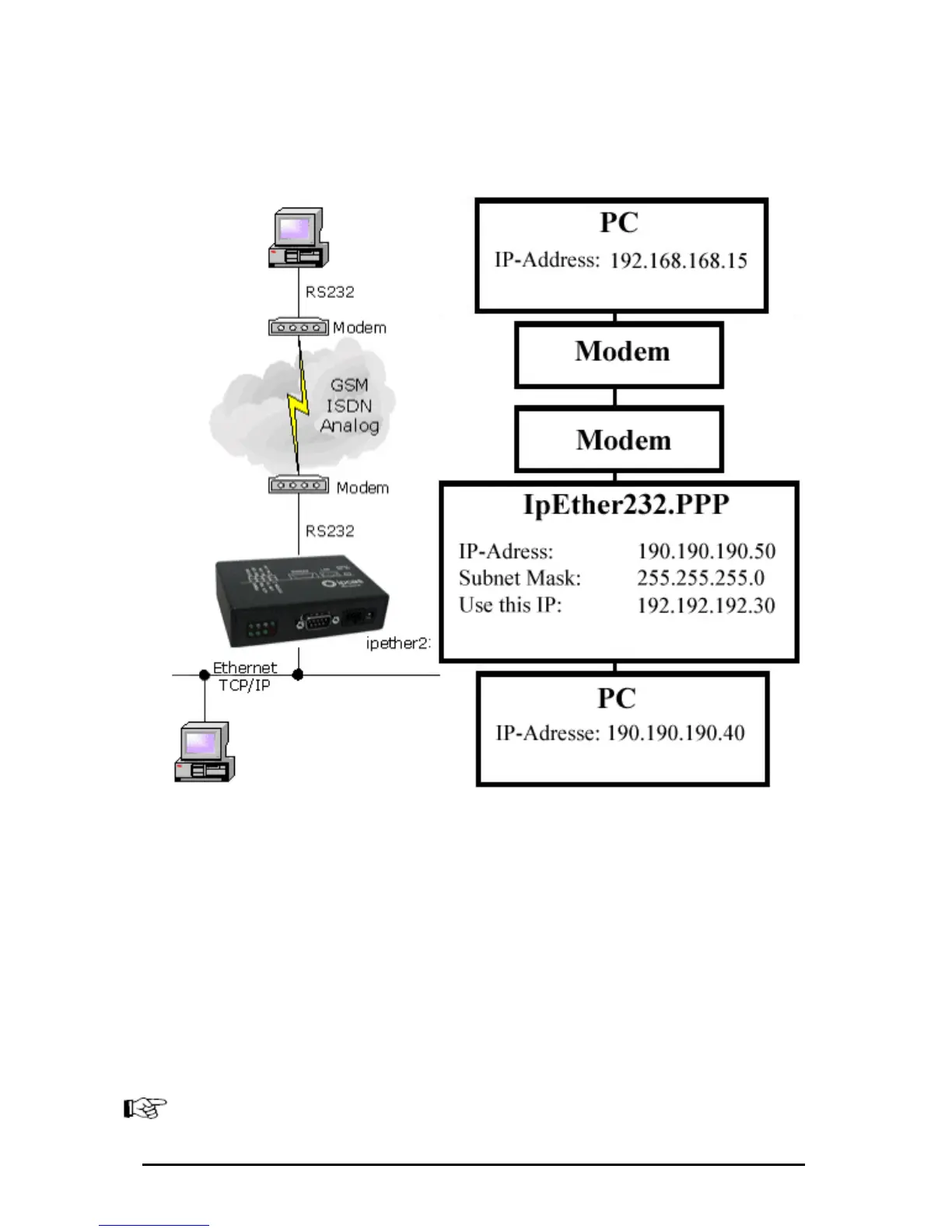

At the example above it would be...
...these commands for Windows NT / 2002:
• For PPP: „route ADD 190.190.190.40 MASK 255.255.255.0 190.190.190.50“
• For PC : “route ADD 190.190.190.50 MASK 255.255.255.0 192.192.192.30”
…these commands for Linux Systems:
• For PPP: „route add –net 190.190.190.40 gw 190.190.190.50
netmask 255.255.255.0 dev ppp0“
• For PC : „route add –net 190.190.190.50 gw 192.192.192.30
netmask 255.255.255.0 dev ppp0“
The Configuration could be tested as follows:
• For PPP: „ping 190.190.190.50 -t“
• For PC : „ping 190.190.190.40 -t“
Both modems have to be configured to „Answer incoming calls“.
(Normally: Register S0=1)
or for field
