6A – 68 GENERAL ENGINE MECHANICAL

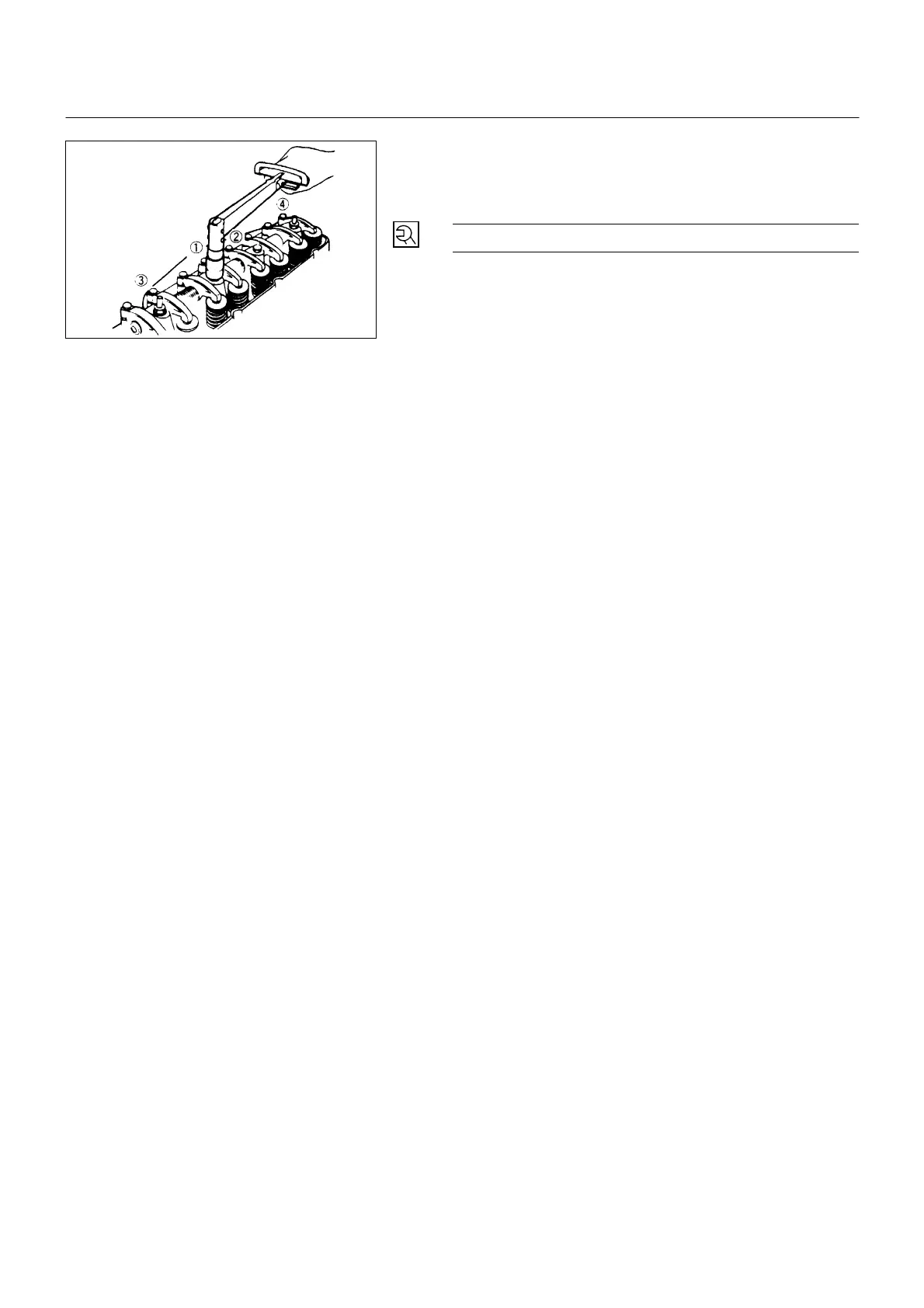

Tighten the rocker arm shaft bracket bolts to the

specified torque in the numerical order shown in the

illustration.

Rocker Arm Shaft Bracket Bolt Torque N∙m (kg∙m/lb∙ft)

54 (5.5/40)

• Valve clearance adjustment.

6A-68-1.tif
