6A1 – 22 4JB1/4JB1T/4JB1TC/4JG2 - ENGINE

Valve Clearance Adjustment

Above works refer to “ROCKER ARM SHAFT

ASSEMBLY” Section in this manual.

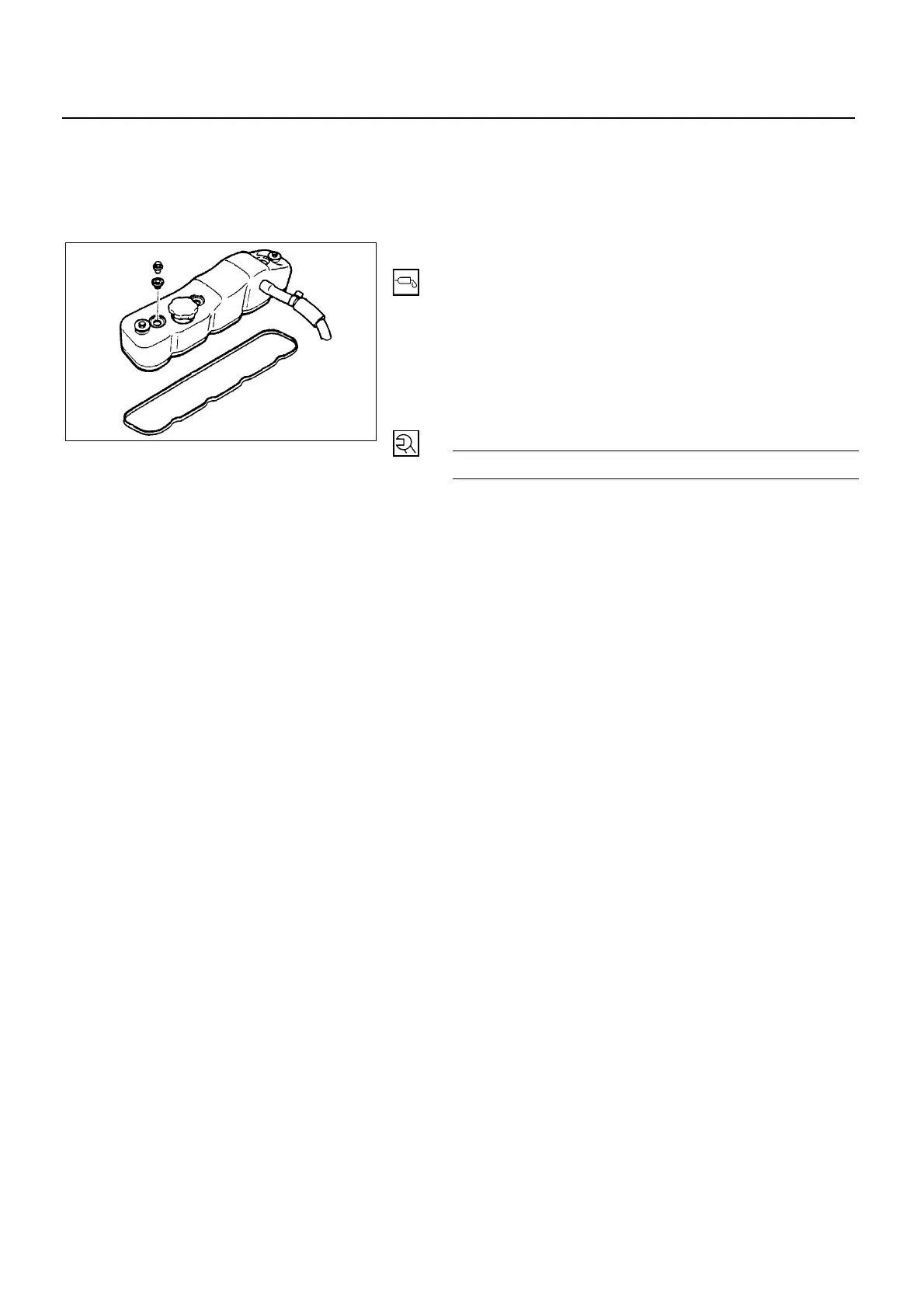

1. Cylinder Head Cover

• Apply engine oil to the rocker arms and the valve

spring.

• Install the cylinder head cover gasket to the cylinder

head cover.

The gasket must be perfectly smooth with no loose

areas.

• Install cylinder head cover and tighten bolt to the

specified torque.

Head Cover Bolt Torque N∙m (kg∙m/lb∙in)

13 (1.3/113)

• Connected PCV hose.

• Connect battery ground cable.

6A1-22-1.tif
