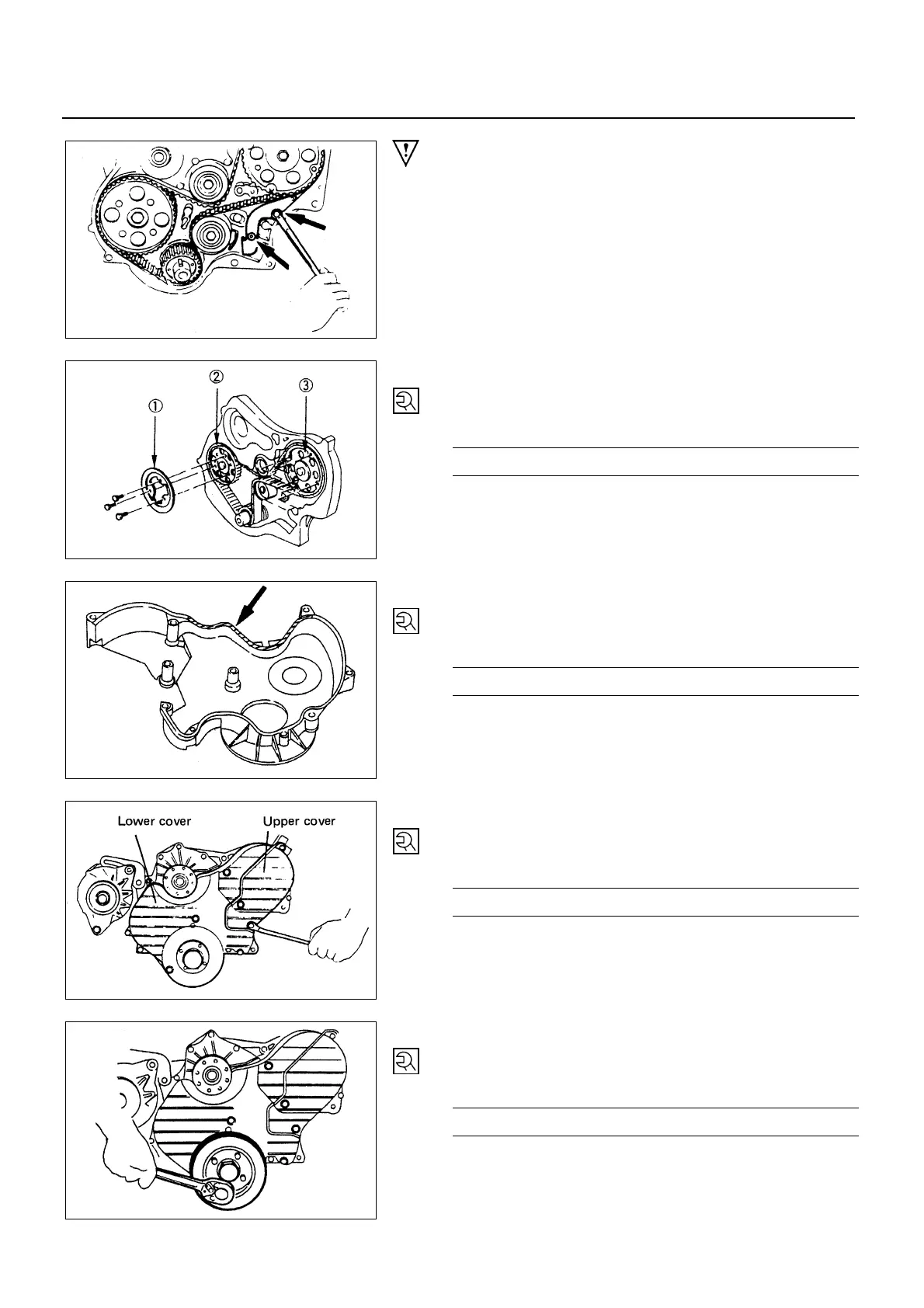

6A1 – 34 4JB1/4JB1T/4JB1TC/4JG2 - ENGINE
CAUTION
• In case where the timing belt has been replaced with
the actuation of warning light, put off the light with
change over switch on the reverse side of meter.
• Refer to Chassis Electrical in Section 8.
• Tighten the tension adjusting lever nut and bolt.
0. Flange; Camshaft Pulley
• Install the timing pulley flange !
to the camshaft
timing pulley
"
.
Flange Bolts Torque N∙m (kg∙m/lb∙ft)
19 (1.9/14)
9. Timing Pulley Lower Cover
• Install timing pulley lower cover and tighten bolt to the
specified torque.
Cover Bolts Torque N∙m (kg∙m/lb∙in)
8 (0.8/69)
8. Timing Pulley Upper Cover
• Install timing pulley upper cover and tighten bolt to the
specified torque.
Cover Bolts Torque N∙m (kg∙m/lb∙in)
8 (0.8/69)
7. Crankshaft Damper Pulley
• Install crankshaft damper pulley and tighten bolt to the
specified torque.
N∙m (kg∙m/lb∙ft)
19 (1.9/14)
6A1-34-1.tif
6A1-34-2.tif
6A1-34-3.tif
6A1-34-4.tif
6A1-34-5.tif
