4JB1/4JB1T/4JB1TC/4JG2 – ENGINE 6A1 – 81
!
Pressure Plate Assembly
• Tighten pressure plate assembly fixing bolts in
numerical order.
Pressure Plate Fixing Bolt Torque N∙m (kg∙m/lb∙ft)
18 (1.8/13)
• Remove the pilot aligner.
NOTE:
In case a new pressure plate assembly is mounted,
after tightening a pressure plate at the specified
torque, be sure to remove the wiring for protection of
a diaphragm spring.
1) Transmission
)
Mounting Bracket
Mounting Bracket Nuts Torque N∙m (kg∙m/lb∙ft)
69 (7.0/51)
(
Transmission Assembly
• Support the transmission with mission jack.
CAUTION:
To prevent the falling of the transmission, tie it
securely to the jack with a chain or belt.
• Shift transmission into high gear.
• Align transmission with engine slope.
• Turn output parking brake drum to aid clutch spring
engagement.
Clutch Housing to Flywheel
Hosing Bolts Torque N∙m (kg∙m/lb∙ft)
M10 : 46 (4.7/34)
M12 : 91 (9.3/67)
• Raise engine and transmission up into rear
transmission mount.
Engine Rear Mounting Nuts
and Bolts Torque N∙m (kg∙m/lb∙ft)
M10 : 40 (4.1/30)
M12 : 69 (7.0/51)

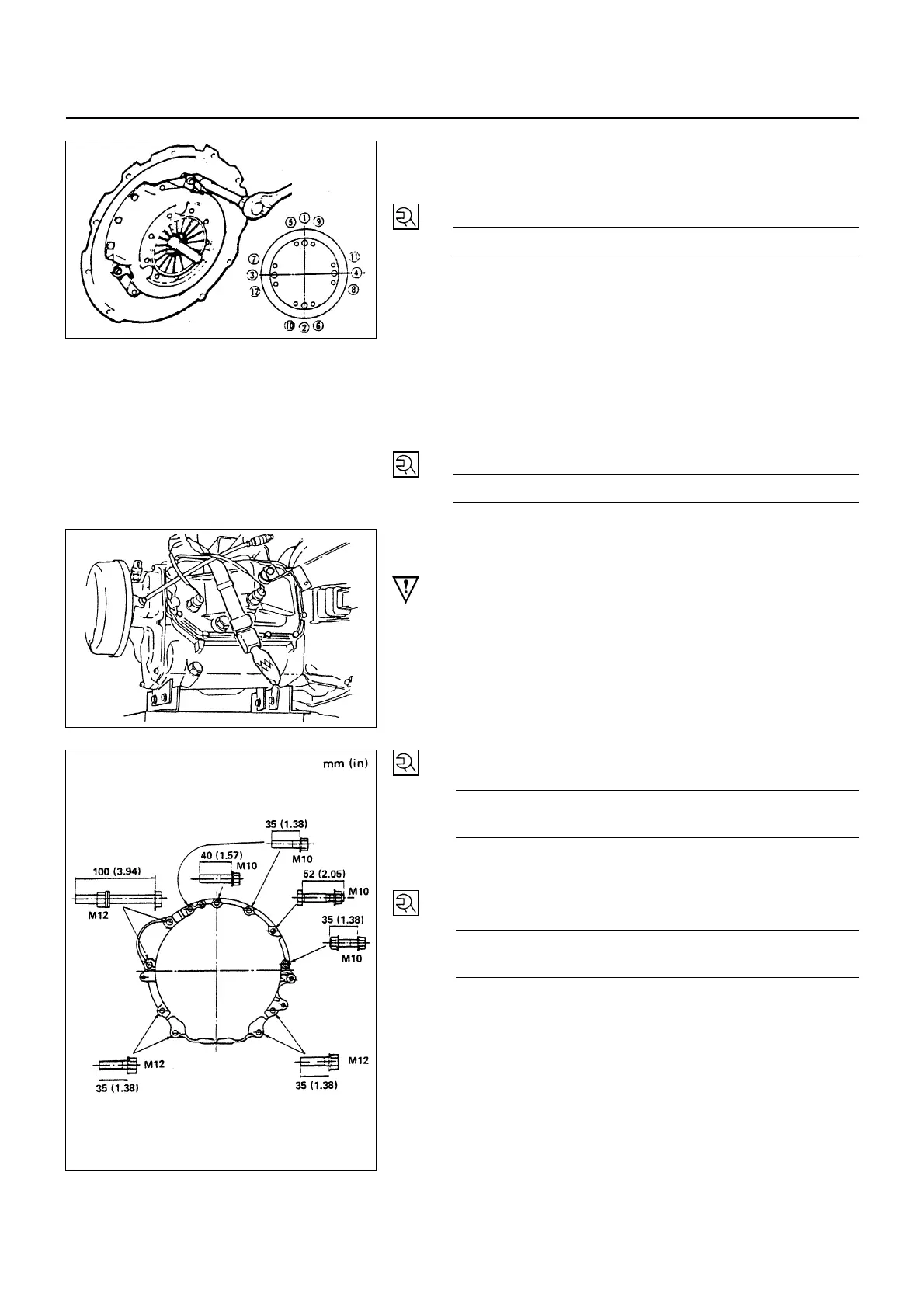

6A1-81-1.tif
6A1-81-2.tif
6A1-81-3.tif
