4JB1/4JB1T/4JB1TC/4JG2 – ENGINE 6A1 – 99
• Remove the nuts of the transmission mounting bracket
on the crossmember side.
• Engine and transmission angles may need to be
adjusted for removal.
• Hold the rear section of the engine by the jack or hoist.
CAUTION:
When lifting the engine by the jack, use wood blocks
to prevent any possible damage to the oil pan.
• Remove transmission fastening bolts.
• Pull out the transmission assembly rearward.
)
Mounting Bracket
2) Clutch
• Raise vehicle and support with suitable safety stands.
CAUTION:
Do not let clutch fluid remain on a painted surface,
Wash it off immediately.
!

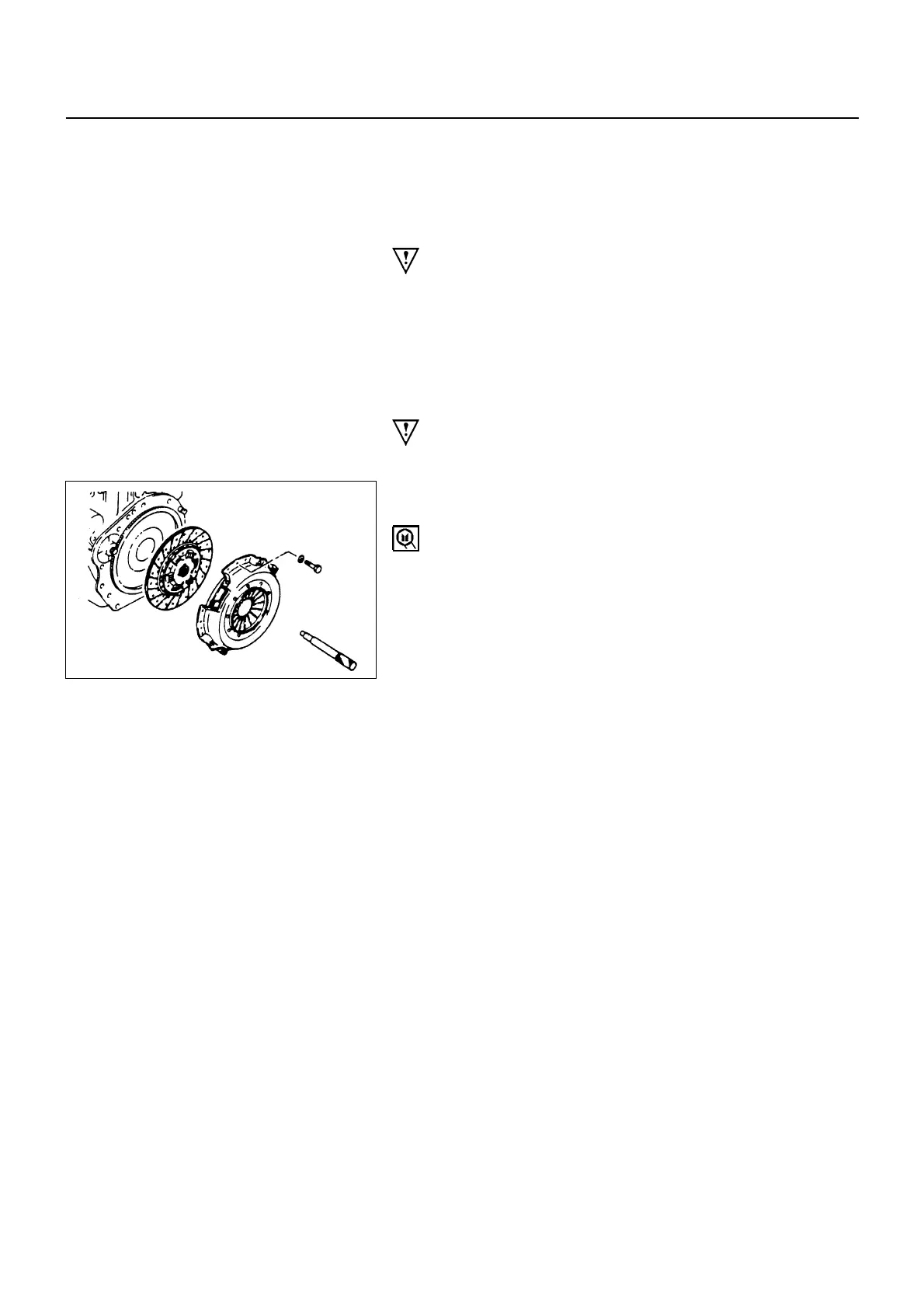

Pressure Plate Assembly
"
Driven Plate Assembly
• Use the pilot aligner to prevent the driven plate
assembly from falling free.
Pilot Aligner: 5-5825-3001-0
• Mark the flywheel and pressure plate lug for alignment
when installing.
• Loosen the pressure plate assembly fixing bolts.
6A1-99-1.tif
