4JB1/4JB1T/4JB1TC/4JG2 – ENGINE 6A1 – 101
10. Power Steering Pump & Bracket Assembly (Power
Steering Model)
1) Loosen the idler pulley lock nut.
2) Loosen the adjust bolt then remove the drive belt.
3) Remove the pipe bracket fixing bolt and clip.
4) Remove the power steering pump fixing bolts pump to
chassis frame side use the wire.
11. Actuator Vacuum Hose (Exh. Brake Model)
Disconnect the vacuum hose from actuator side.
12. Vacuum Pump Hose (Exh. Brake Model)
Disconnect the vacuum hose from vacuum tank side
and magnetic valve side.
13. Front Exhaust Pipe
Remove the exhaust pipe fixing bolts from exhaust
manifold.
Remove the exhaust pipe stay bolt.
Remover the fixing nuts from front pipe.
14. Support Rubber
1) Right Hand
Remove two fixing nuts at the crossmember side.

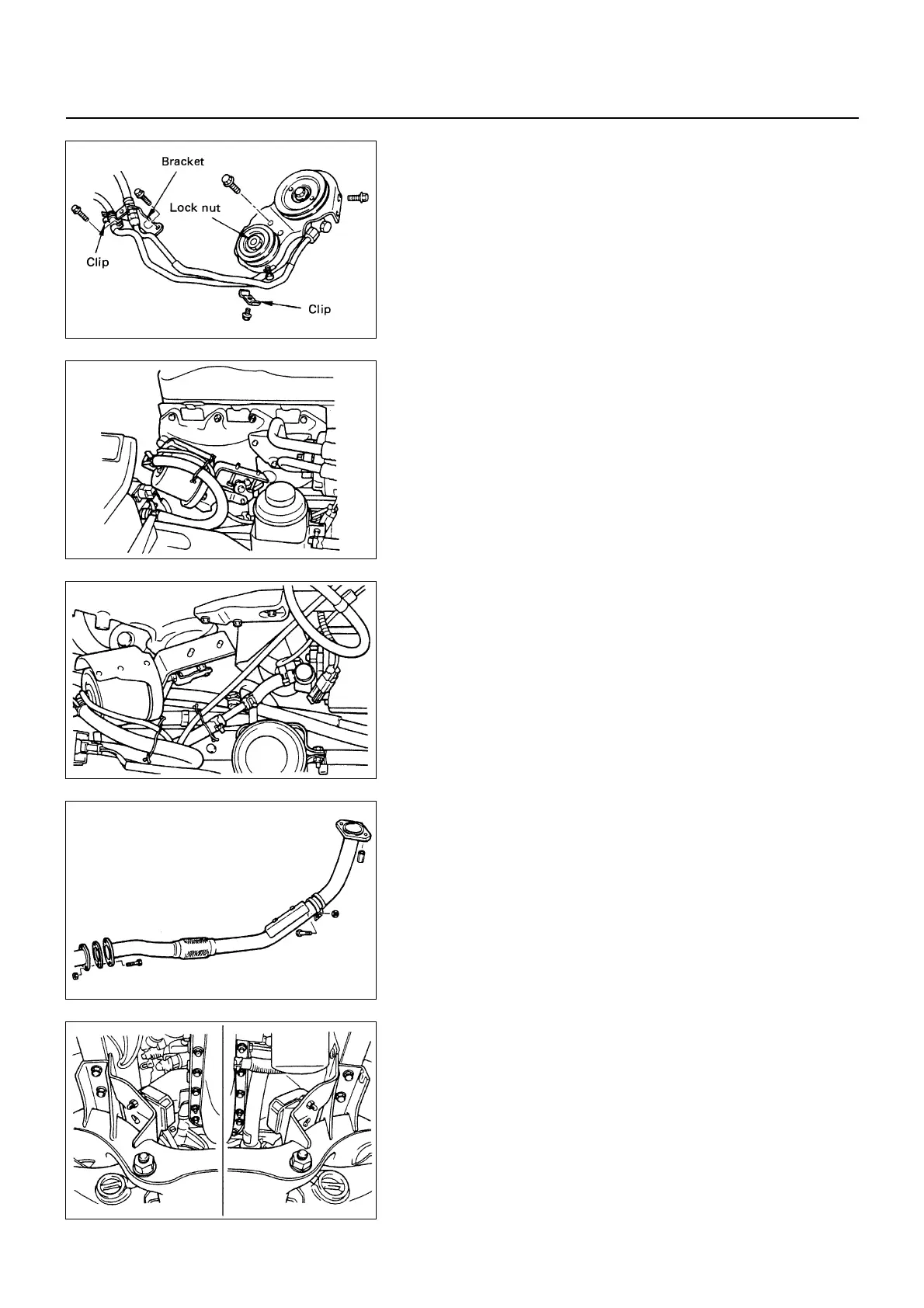

6A1-101-1.tif
6A1-101-2.tif
6A1-101-3.tif
6A1-101-4.tif
6A1-101-5.tif
