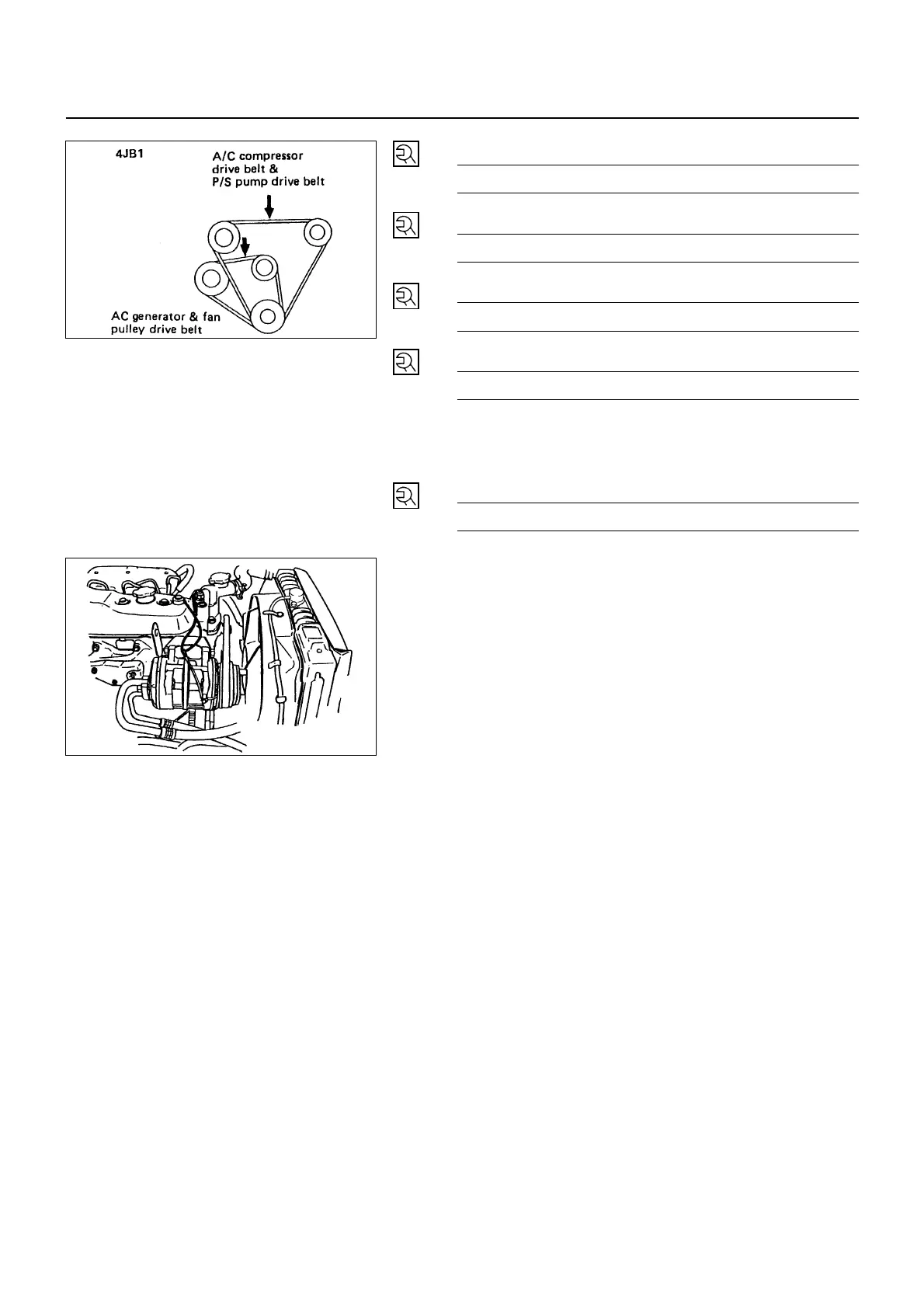

ENGINE COOLING 6B - 9
Generator Fixing Belt Torque N∙m (Kg∙m/lb∙ft)
40 (4.1/30)
Adjust Plate Fixing Belt Torque N∙m (Kg∙m/lb∙ft)
19 (1.9/14)
A/C Idler Pulley Lock Nut Torque N∙m (Kg∙m/lb∙ft)
27 (2.8/20)
P/S Idler Pulley Lock Nut Torque N∙m (Kg∙m/lb∙ft)
27 (2.8/20)
2. Cooling Fan Assembly
• Mount fan pulley and cooling fan assembly on the
water pump and tighten to the specified torque.
Fan Pulley Nut Torque N∙m (Kg∙m/lb∙in)
8 (0.8/69)
1. Fan Shroud
• Install the fan shroud and reservoir tank hose and
bypass hose.
• Connect the battery ground cable.
• Pour coolant.
• Start the engine and check coolant leakage.
6B-8-1.tif
6B-8-2.tif
To Next Page
