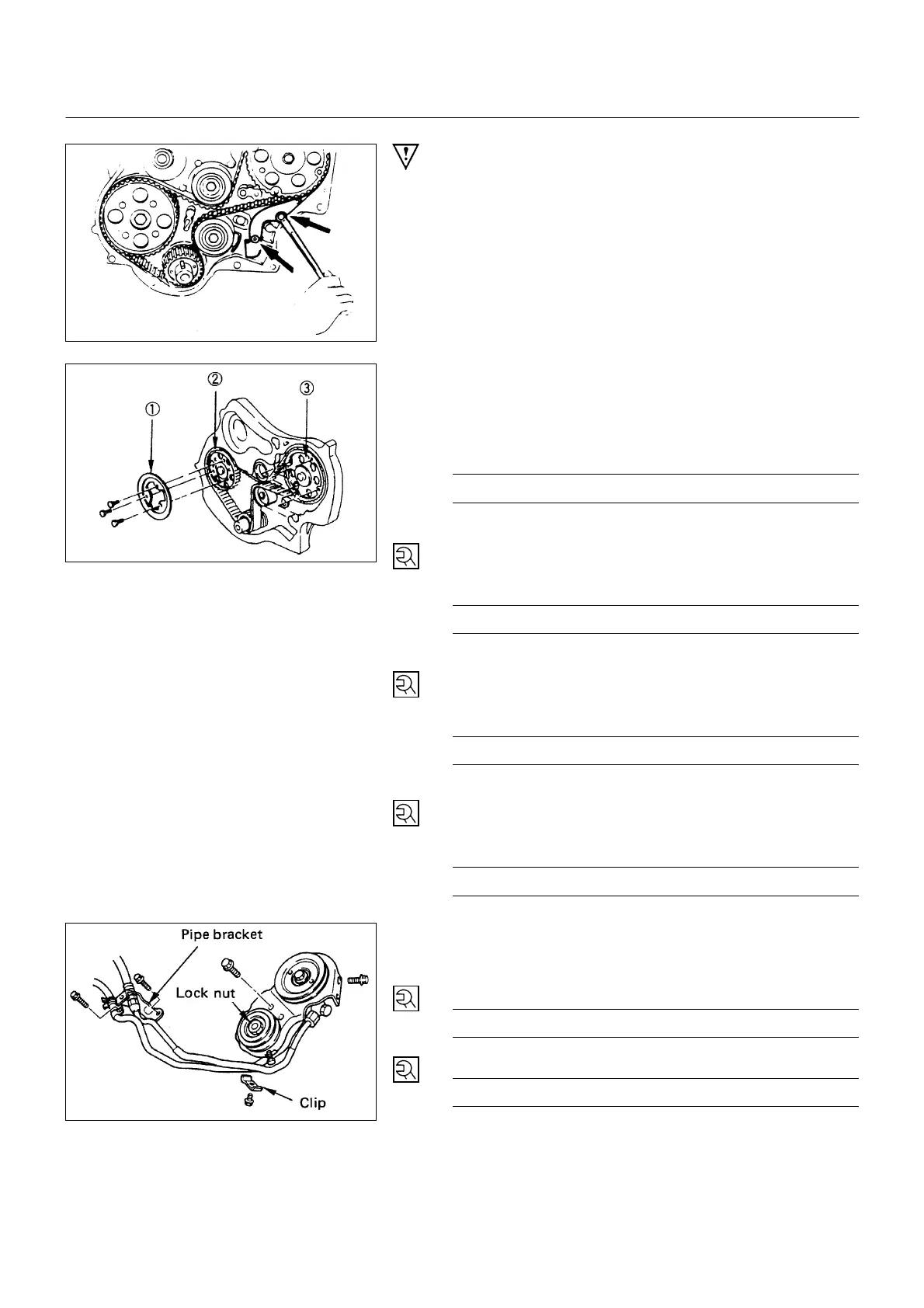

6C - 38 ENGINE FUEL
CAUTION
• In case where the timing belt has been replaced with
the actuation of warning light, put off the light with
change over switch on the reverse side of meter.
• Refer to Chassis Electrical in Seetion 8 .
• Tighten the tension adjusting lever nut and bolt.
10. Flange; Camshaft Pulley
• Install the timing pulley flange
!
to the camshaft
"
.
• Tighten the timing pulley flange bolts to the specified
torque.
N∙m (Kg∙m/lb ft)
19 (1.9/14)
9. Timing Pulley Lower Cover
• Install timing pulley lower cover and tighten bolt to the
specified torque.
N∙m (Kg∙m/lb in)
8 (0.8/69)
8. Timing Pulley Upper Cover
• Install timing pulley upper cover and tighten bolt to the
specified torque.
N∙m (Kg∙m/lb in)
8 (0.8/69)
7. Crankshaft Damper Pulley
• Install crankshaft damper pulley and tighten bolt to the
specified torque.
N∙m (Kg∙m/lb ft)
19 (1.9/14)
6. Power Steering Pump & Bracket Assembly (P/S Model)
• Install the pipe bracket, clip and tighten bolts to the
specified torque.
Pipe bracket bolts N∙m (Kg∙m/lb ft)
19 (1.9/14)
Pipe clip bolts N∙m (Kg∙m/lb ft)
10 (1.0/7)
6C-37-1.tif
6C-37-2.tif
6C-37-3.tif
To Next Page
