6D2 – 6 STARTING SYSTEM

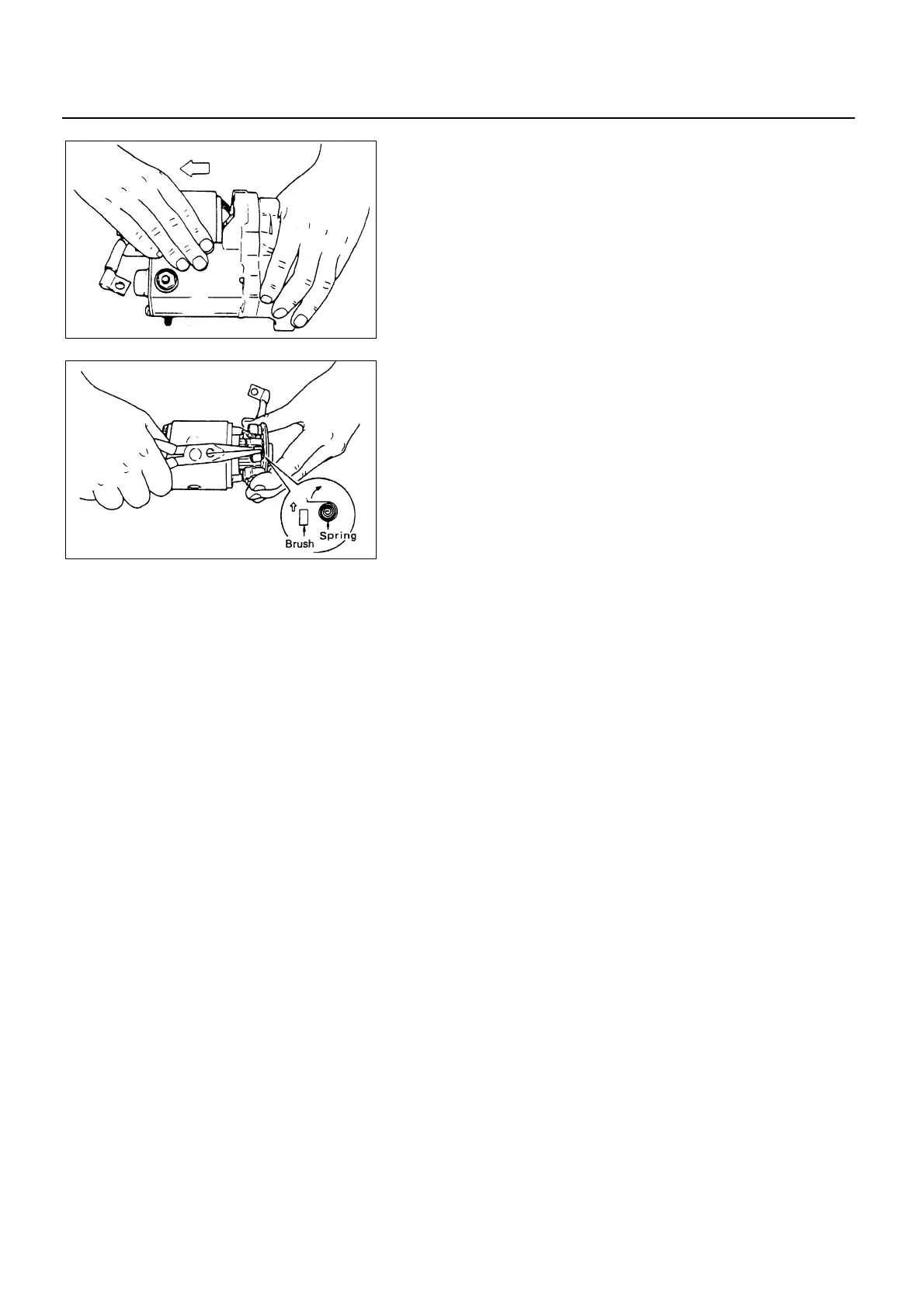

3. Yoke Assembly

Separate the yoke from the solenoid switch.

4. Yoke Cover

5. Brush and Brush Holder

Remove (pull out) the brushes and the brush holder from

the armature with a pair of long-nose pliers.

6. Armature

7. Drive Side Housing

6D2-6-1.tif

6D2-6-2.tif
