6G – 8 TURBOCHARGER
Important wheel shaft end play and bearing clearance
standards and limits are included below for your reference.
Wheel Shaft End Play
Use a dial indicator to measure the wheel shaft end play. Apply
a force of 1.2 kg (2.6 lb/11.8N) alternately to the compressor
wheel end and the turbine wheel end.
Wheel Shaft End Play mm (in)
Standard Limit
0.02 - 0.08
(0.0008 - 0.0031)
0.09 (0.0035)
Wheel Shaft and Bearing Clearance
Use a dial indicator to measure the wheel shaft and bearing
clearance.
Wheel Shaft and Bearing Clearance mm (in)
Standard Limit
0.07 - 0.12
(0.0028 - 0.0047)
0.16 (0.0063)

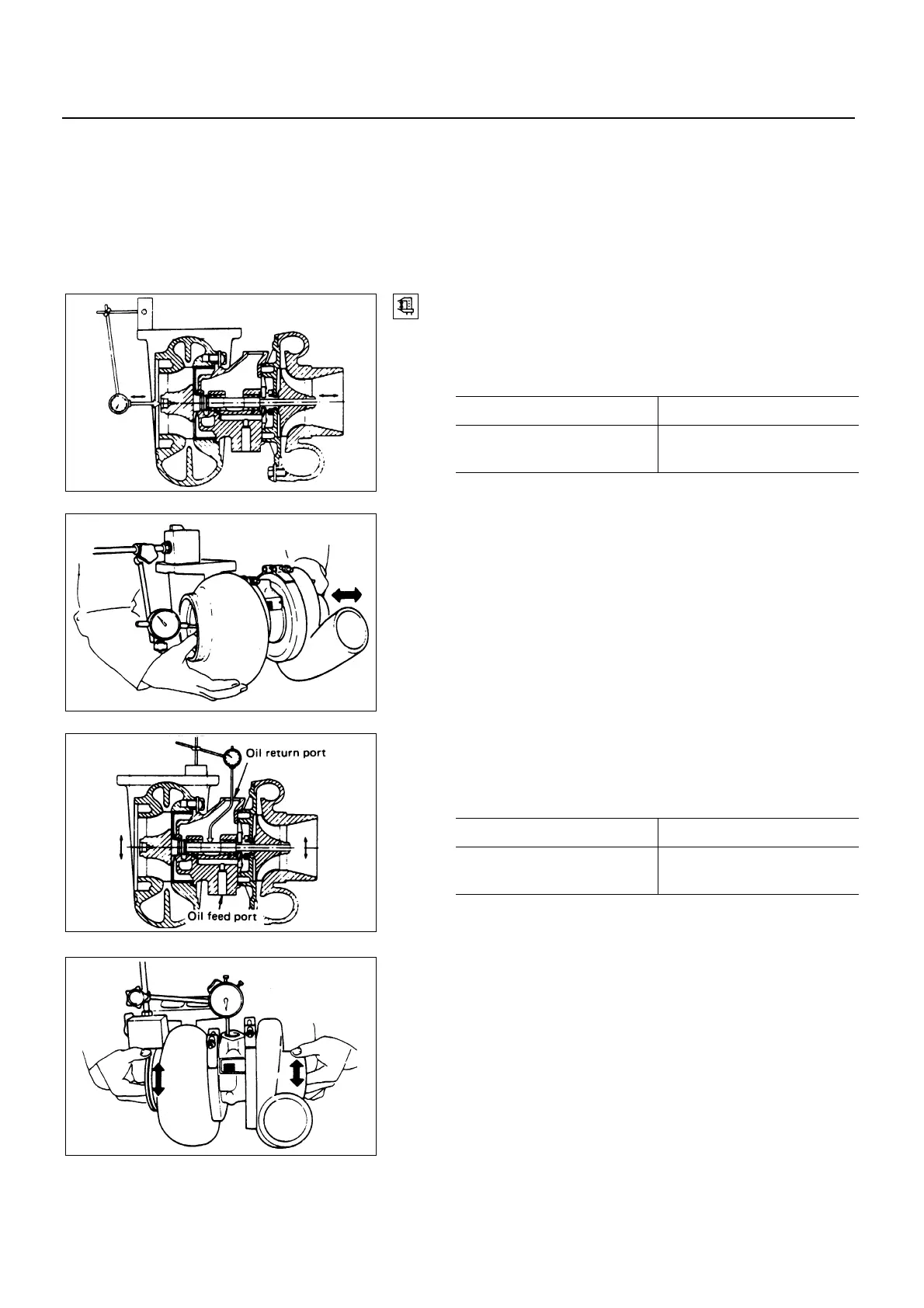

6G-8-1.tif
6G-8-2.tif
6G-8-3.tif
6G-8-4.tif
