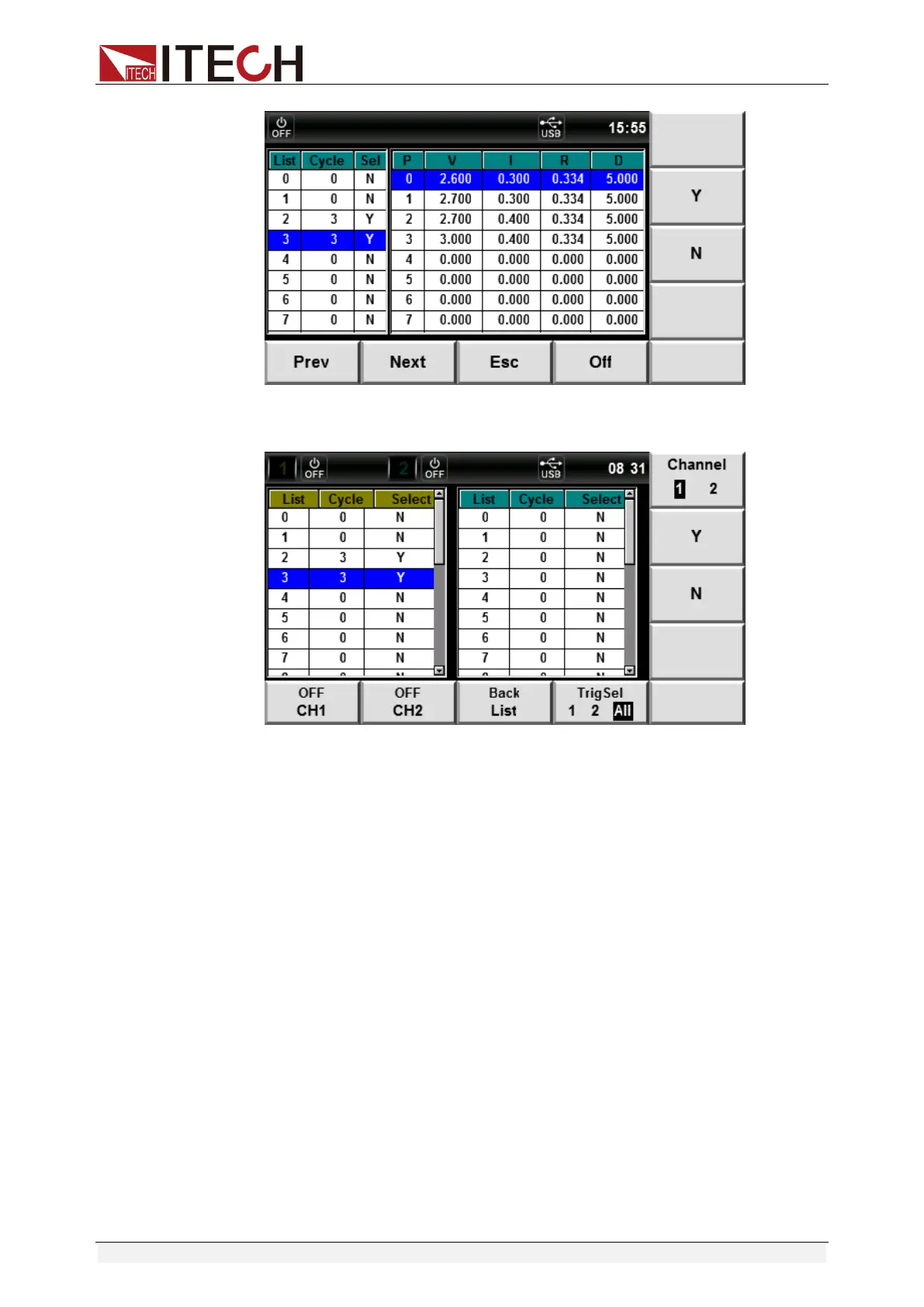

List Function
Copyright © Itech Electronic Co., Ltd. 70
⚫ IT6402/IT6412/IT6412S
Run List
After editing of List, the power supply will start running after receipt of one
trigger signal till completion of the List operation or receipt of another trigger
signal.
Operating procedures are as below:
1. Edit List in successive based on the above steps and select the edited List.
2. Press the [Trig Sel 1/2/All] soft key to select the channel to be triggered.
When [Trig Sel 1/2/All] is pressed once, the channels that can be
triggered by the [Trig] key will be switched among 1/2/All one by one.
(Only IT6402/IT6412/IT6412S contain this step.)
3. On the Sequence Selection and Configuration interface, press the [OFF
CH1] soft key to configure the List status as ON and switch on the List
function.
⚫ IT6411/IT6431/IT6432/IT6433/IT6411S/IT6432S
