ITech IT7900P Series - Constant Current +Constant Resistance (CC+CR)

Operation and Application
Copyright ©ITECH Electronic Co., Ltd. 78
Phase shift: Phase shift of voltage and current. Phase shift range within -
90°~90°. If programmed is positive it will be a leading power factor. If
programmed is negative it will be a lagging power factor.
Programming the load value (CS)
The user can press [Set] and set the input resistance value in the main interface
of CS mode. Directly set the present value through the knob or press numeric
keys to input the value. In case of wrong input by numeric keys, press
to delete the present input.
6.3.5 Constant Current +Constant Resistance (CC+CR)
The electronic load simulates the waveform distortion of some inverters by
sinking a nonlinear constant current and a resistor to meet their efficiency test
requirements.

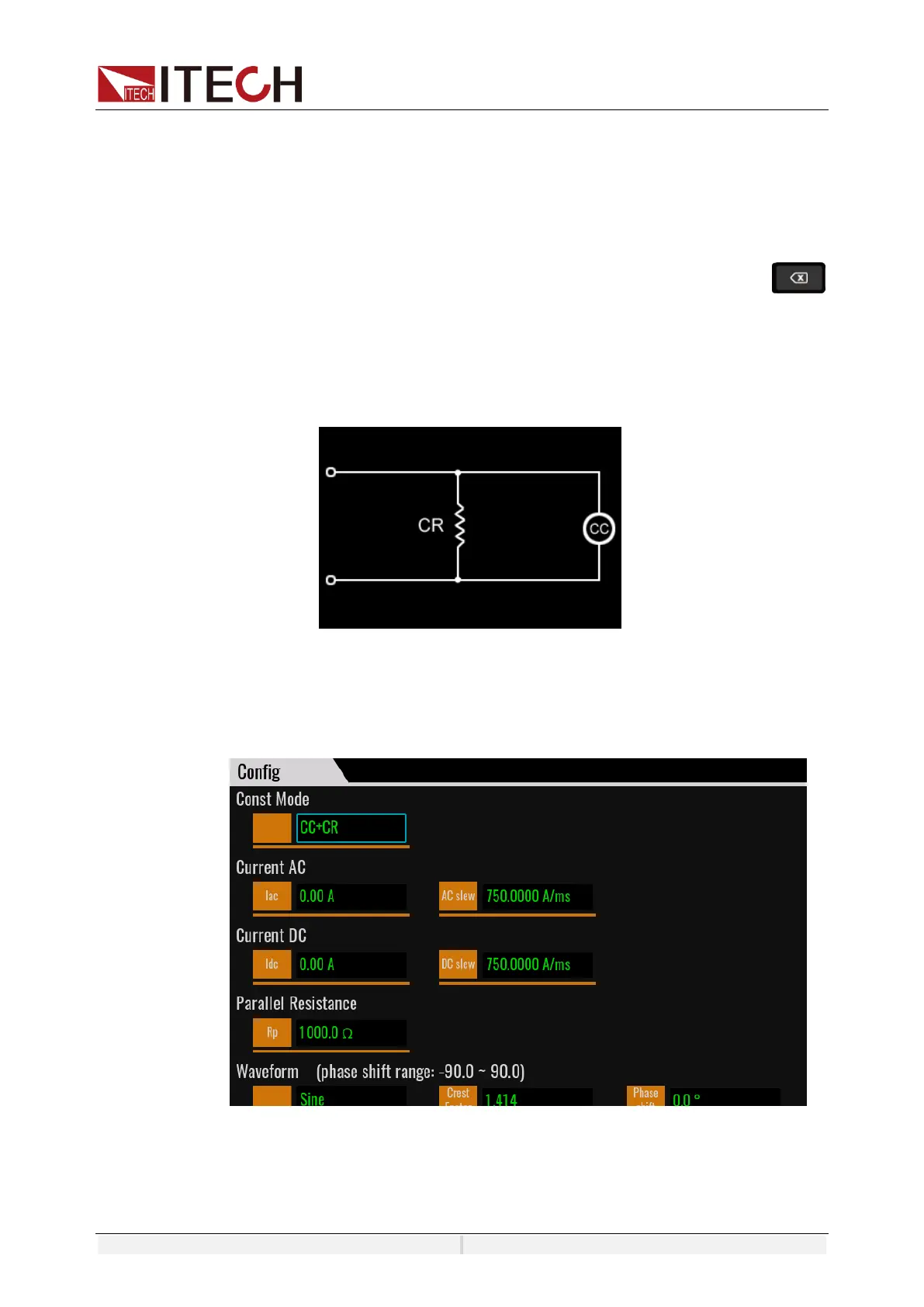

CC+CR mode schematic diagram
Select CC+CR mode
Press [Config] and enter to the configuration menu. Select constant mode to
CC+CR.
Under the config menu interface, the user can select Const Mode item and set
the mode to CC+CR.
⚫ Const Mode: load mode
