End: Set the final waveform, with the following options available:
⚫ Off: directly off the input after operation.
⚫ Normal: return to normal after operation.
⚫ Last: keep the last waveform input unchanged after operation.
No.: step number of list. Click the numer, you can operate such as
copy/paste/cut/insert/delete.
ACrms A: Voltage RMS value
Slew A/ms: current slope.
Time S: width time
More: other settings, click … and setup the slew rate, waveform,phase and so
on
Export: Export the internal List file of the instrument to an external USB flash
drive.
Save: Save the list file.
Config: configure the list file to make it effective.
Clear all: delete all of step information
Trig source: select trigger source

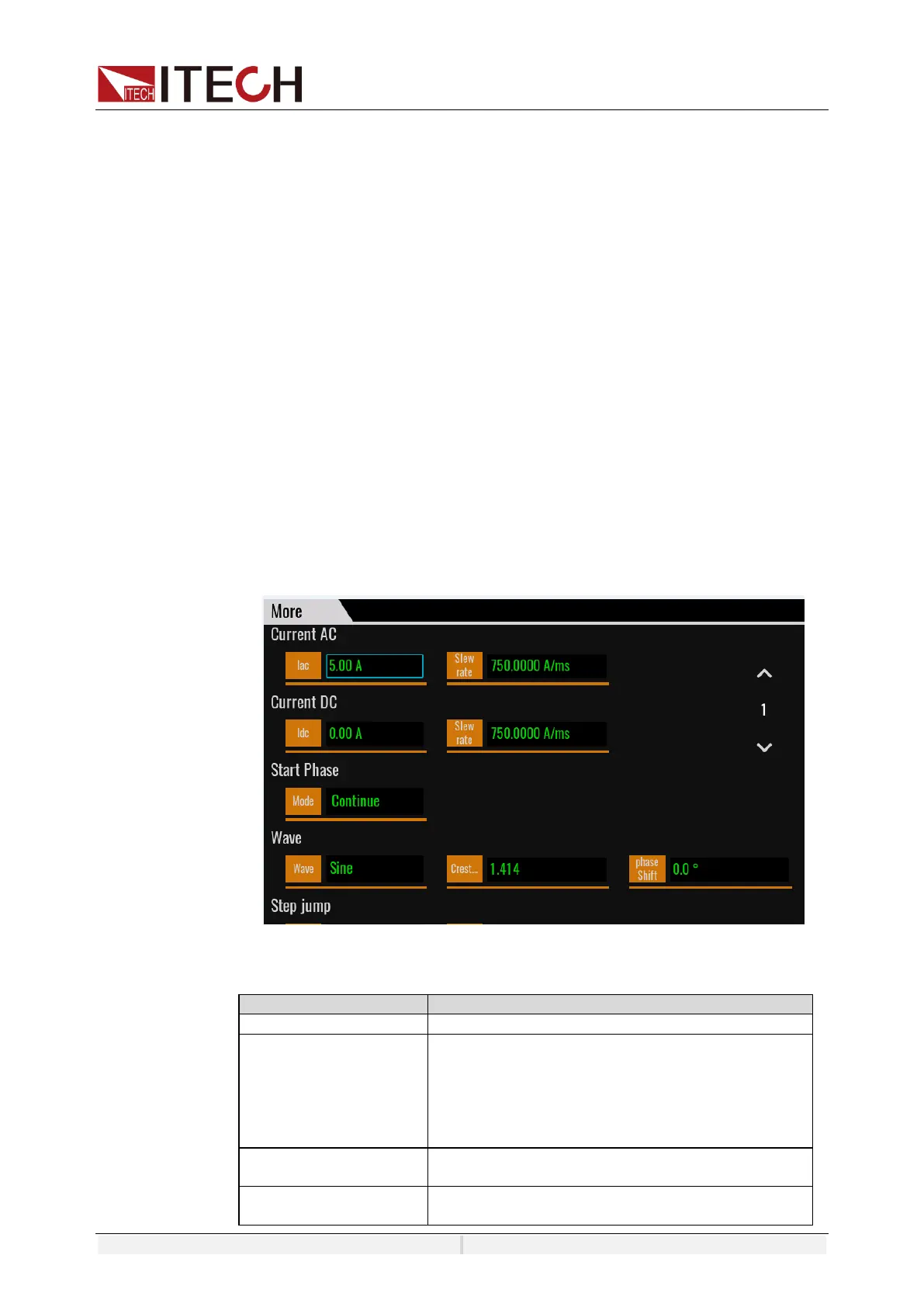

3. Click (More)… enter to advanced menu of list file.
List parameters description：
Start phase setting, displayed in AC mode.
By default, the program automatically calculates
this value (which is guaranteed to be continuous
with the previous step). If the user modifies this
parameter, the user set value is used without
guarantee of continuity.
Waveform type, every basic waveform can be
selected, only displayed in AC mode.
