52
IT10151 - IT12151
OPERATING AND MAINTENANCE HANDBOOK
Platform extension
The platform has equipped with a manually-operated extension.
To extend the platform it is necessary:
•To be positioned on the xed platform.

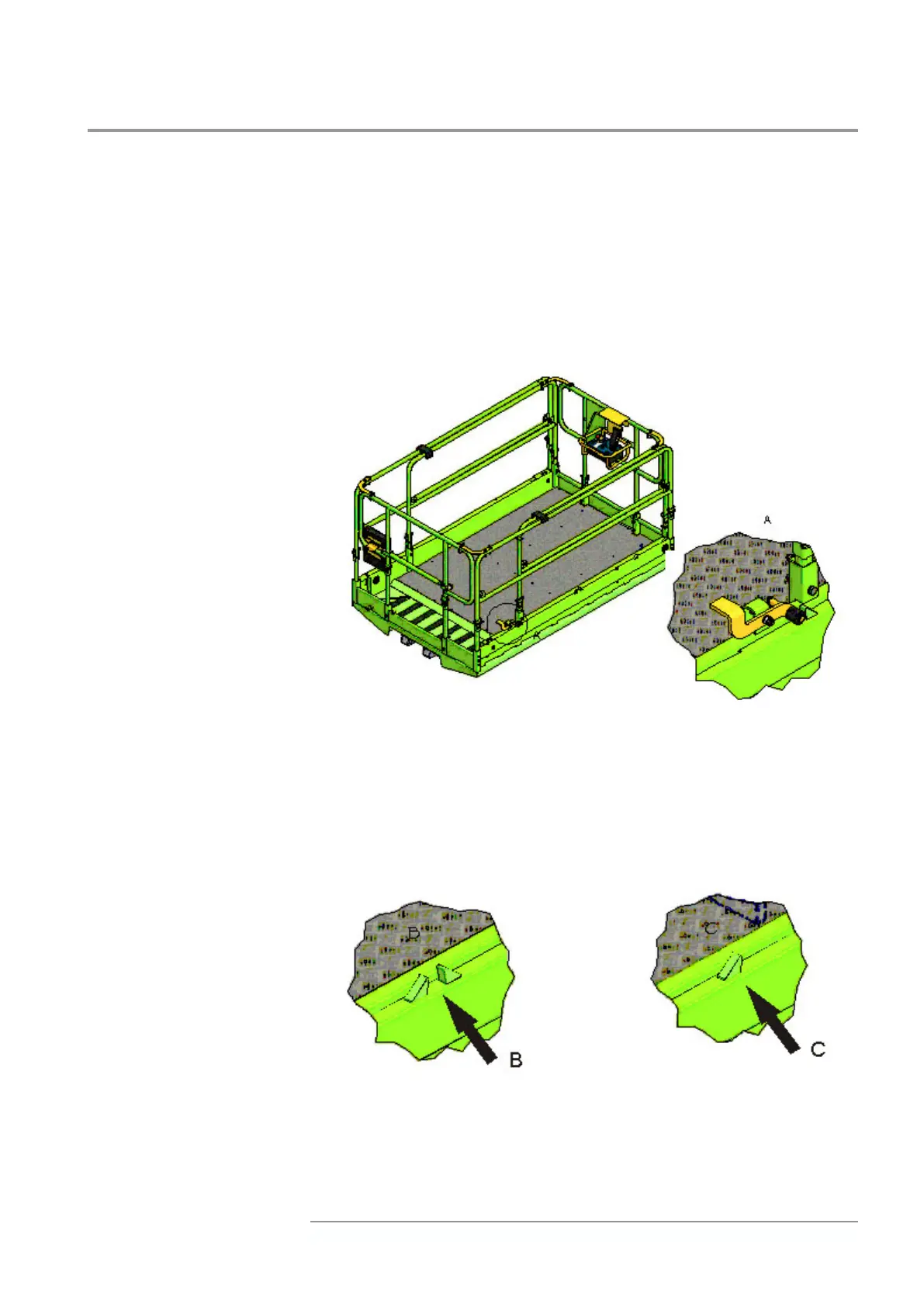

•Press with right foot on the pedal (part. A) placed on the platform
and grip the mobile railing.
•Push the platform until the pedal pivot arrives above the lock (part.
B-C).
•Release the pedal and make sure that the pin is blocked by the rel-
evant lock.
