MV & LV SERIES ENGINEERED DRY CHEMICAL FIRE EXTINGUISHING SYSTEM
OPERATION, DESIGN, & SERVICE MANUAL
REV C
Document # DOC324
Issued: April 26, 2018
Revised: March 22, 2022
UL FILE # EX27541
Section 4 System Installation
Table 4.1.1a
Mv Cylinder Dimensions
200 lbs 600 lb
in mm in mm
H1 46.26 1175 50.79 1290
H2 39.98 1015 44.5 1130
H3 19.8 503 21.5 546
W1 16.0 406 24.0 610
W2 20.5 521 29.0 737
W3 17.88 454 25.9 658
Bracket P/N 18535 18536

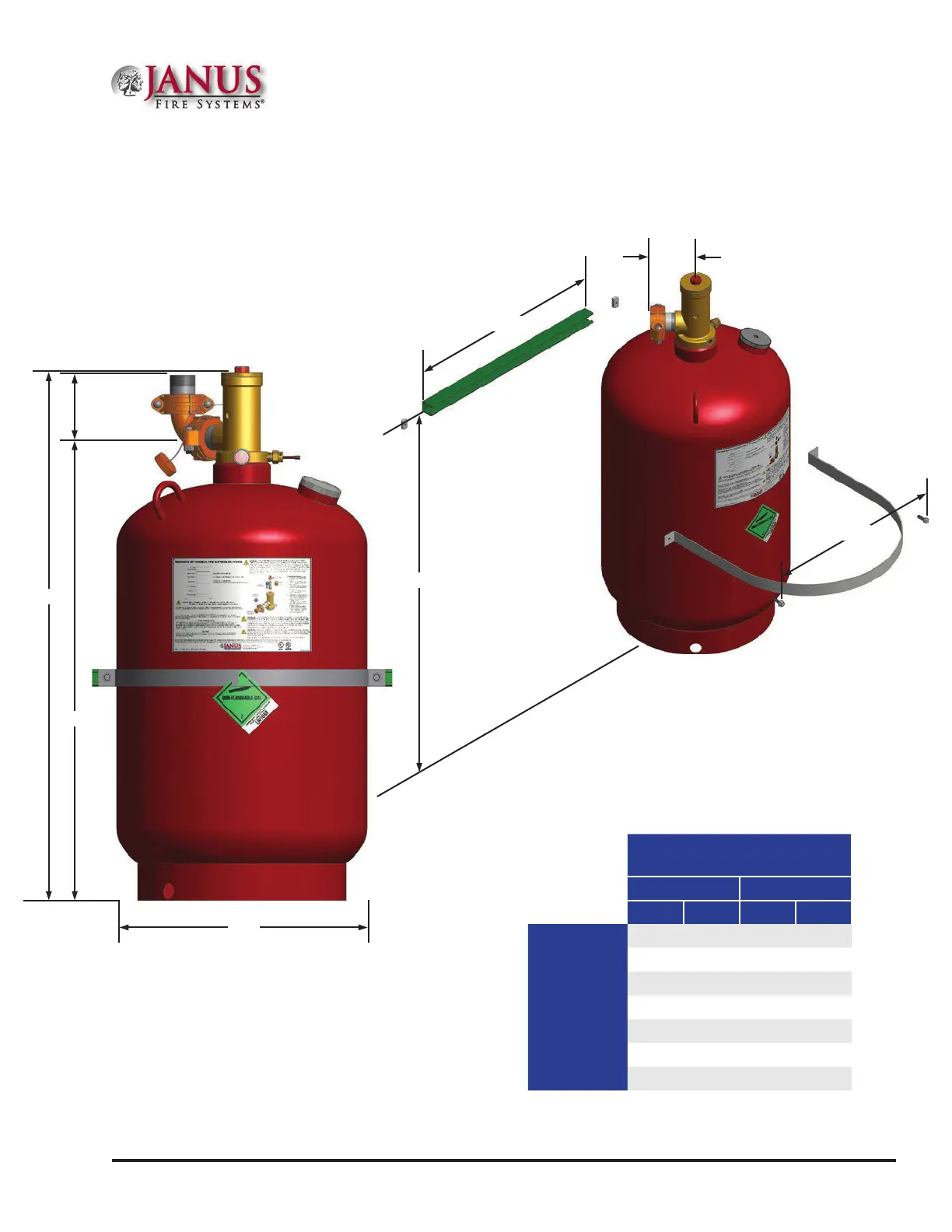

Figure 4.1.1a Mv Cylinder Bracket & Dimensions
H1
H2
W1
6.0 in
(152 mm)
Bracket Assembly includes:
(2) 3/8" twirl nuts (P/N 18811)
(2) 3/8"-16 1-1/4" cap screws (P/N 18606)
(1) strap (200 lb: P/N 18597; 600 lb: P/N 18598)
back channel (200 lb: P/N 98253; 600 lb: P/N 98252)
H3
W2
W3
5.72 in
(145 mm)
