Janus Mv Series User Manual

Page: 72
MV & LV SERIES ENGINEERED DRY CHEMICAL FIRE EXTINGUISHING SYSTEM
OPERATION, DESIGN, & SERVICE MANUAL
REV C
Document # DOC324
Issued: April 26, 2018
Revised: March 22, 2022
UL FILE # EX27541
Section 4 System Installation
H1

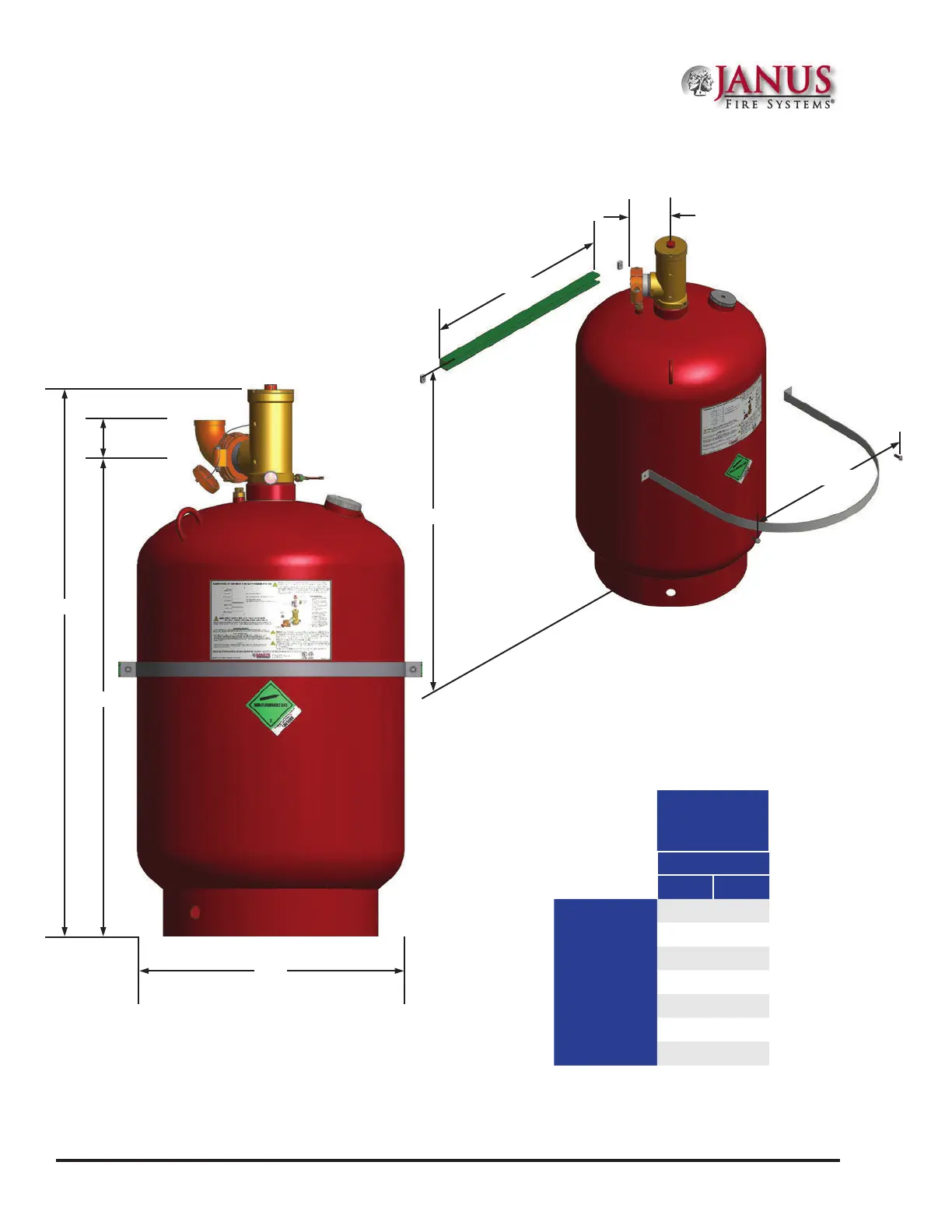

Figure 4.1.1b Lv Cylinder Bracket & Dimensions
H2
4.25 in
(108 mm)
W1
Table 4.1.1b
Lv Cylinder
Dimensions
1000 lb
in mm
H1 61.38 1559
H2 53.73 1365
H3 30.0 762
W1 30.0 762
W2 34.0 864
W3 31.9 810
Bracket P/N 18537
Bracket Assembly includes:
(2) 3/8" twirl nuts (P/N 18811)
(2) 3/8"-16 1-1/4" cap screws (P/N 18606)
(1) strap (P/N 18599)
back channel (P/N 98251)
H3
W2
W3
6.34 in
(161 mm)
