MV & LV SERIES ENGINEERED DRY CHEMICAL FIRE EXTINGUISHING SYSTEM
OPERATION, DESIGN, & SERVICE MANUAL
REV C
Document # DOC324
Issued: April 26, 2018
Revised: March 22, 2022
UL FILE # EX27541

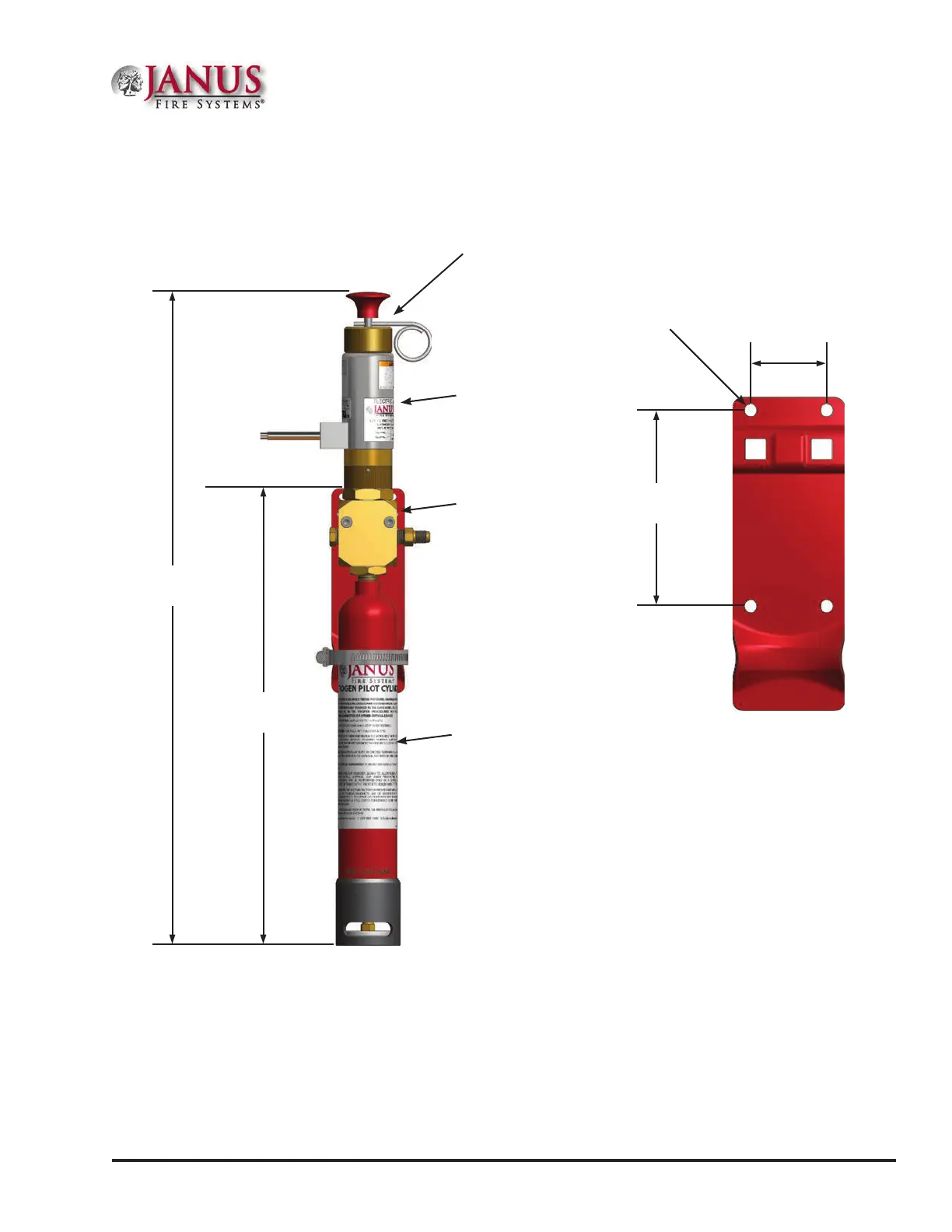

Figure 4.1.6.4a Remote Actuation Kit/Bracket Dimensions
Section 4 System Installation
22.4 in
(569 mm)
4.38 in
(112 mm)
1.69 in
(43 mm)
Diameter
0.28 in
(7.11 mm)
15.68 in
(399 mm)
Manual Valve Actuator
(P/N 17001)
Electric Valve Actuator
(P/N 20722)
Remote Pneumatic
Actuation/Bracket Kit
(P/N 97643)
Remote Nitrogen
Actuation Cylinder
(P/N 26311)
