Page: 82
MV & LV SERIES ENGINEERED DRY CHEMICAL FIRE EXTINGUISHING SYSTEM
OPERATION, DESIGN, & SERVICE MANUAL
REV C
Document # DOC324
Issued: April 26, 2018
Revised: March 22, 2022
UL FILE # EX27541
Manual Valve Actuator
(P/N 17001)
STANDARD EXPLOSION-PROOF
Lever-Pull Manual
Actuator
(P/N 19589)
Electric Valve Actuator
(P/N 20722)
Manual/Pneumatic
Valve Actuator
(P/N 98533)
Remote Pneumatic
Actuation/Bracket Kit
(P/N 97643)
Low-Pressure Supervisory
Switch Assembly
(P/N 22946)
Remote Pneumatic
Actuation/Bracket Kit
(P/N 97643)
Remote Nitrogen Actuation Cylinder
w/ Supervisory Connection
(P/N 26310)
Remote Nitrogen Actuation Cylinder
w/ Supervisory Connection
(P/N 26310)
XP Low-Pressure Supervisory Switch
Assembly
(P/N 98302)

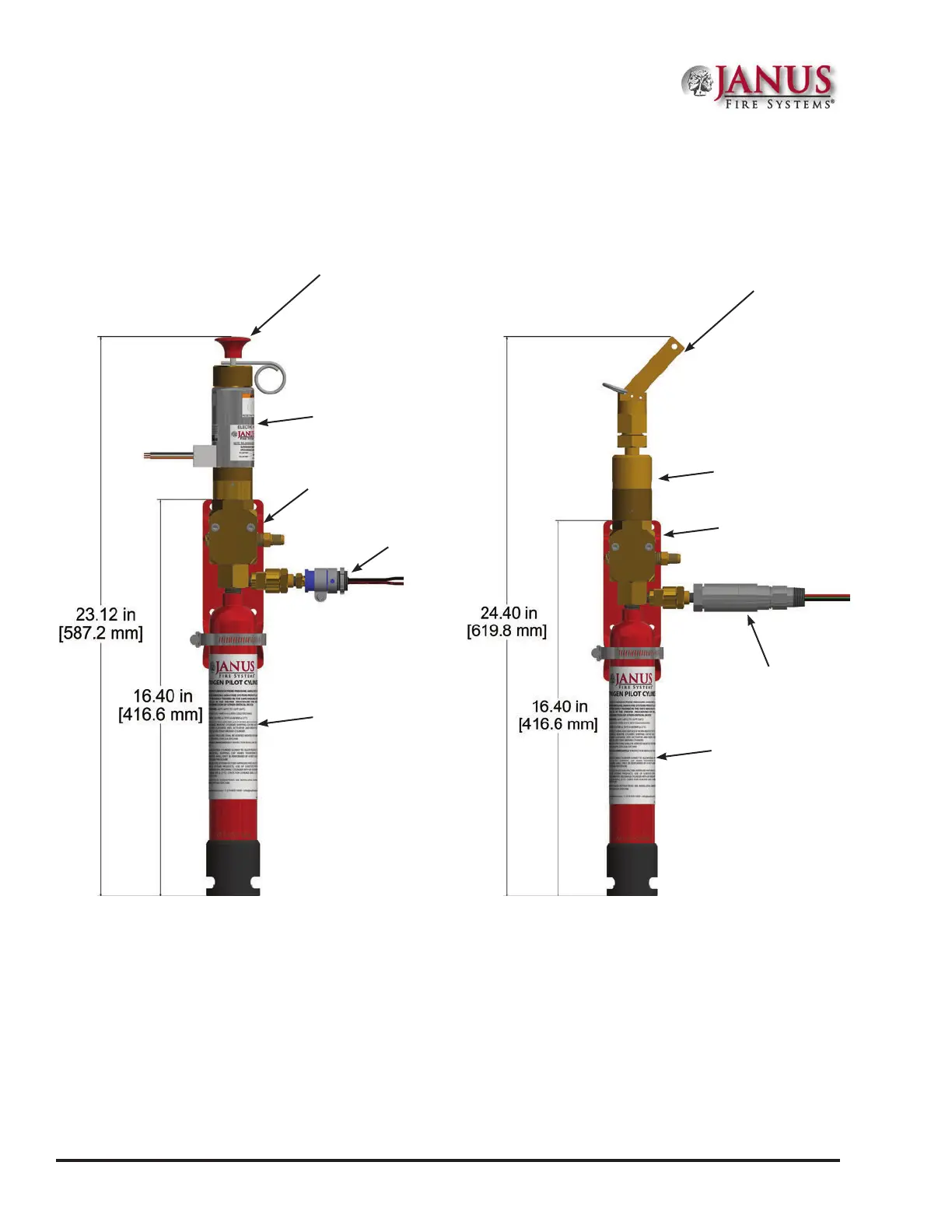

Figure 4.1.6.4b Remote Actuation Cylinder w Supervisory Connection Dimensions
