Additional or special function:
0 : standard
x : special (equipment definition
covered by a customisation
sheet)
U R R C B
3.2- URR receiver
- The complete reference of the receiver is given by a main reference encoded on 9 digits and a
complementary reference encoded on 3 digits.
- The receiver comes with 6 function relays + 2 safety relays + 1 "On/Horn" relay
- The receiver is delivered with an electronic key (the transmitter button configuration must be supplied
during the receiver order)
Example : URR0C40-B - 012
= URR radio receiver (433-434 MHz bands) 3+6 relays,
- without option,
- Power supply = 12-24VDC,
- without additional or special function,
- no interlocking,
- if exist on transmitter, "BPDV" button type, control 3 relays,
- if exist on transmitter, "COM3" and "COM3R" button type are of the 1-OFF-2 type.
Delivered with an electronic key containing the receiver identity code and the associated transmitter
button configuration.

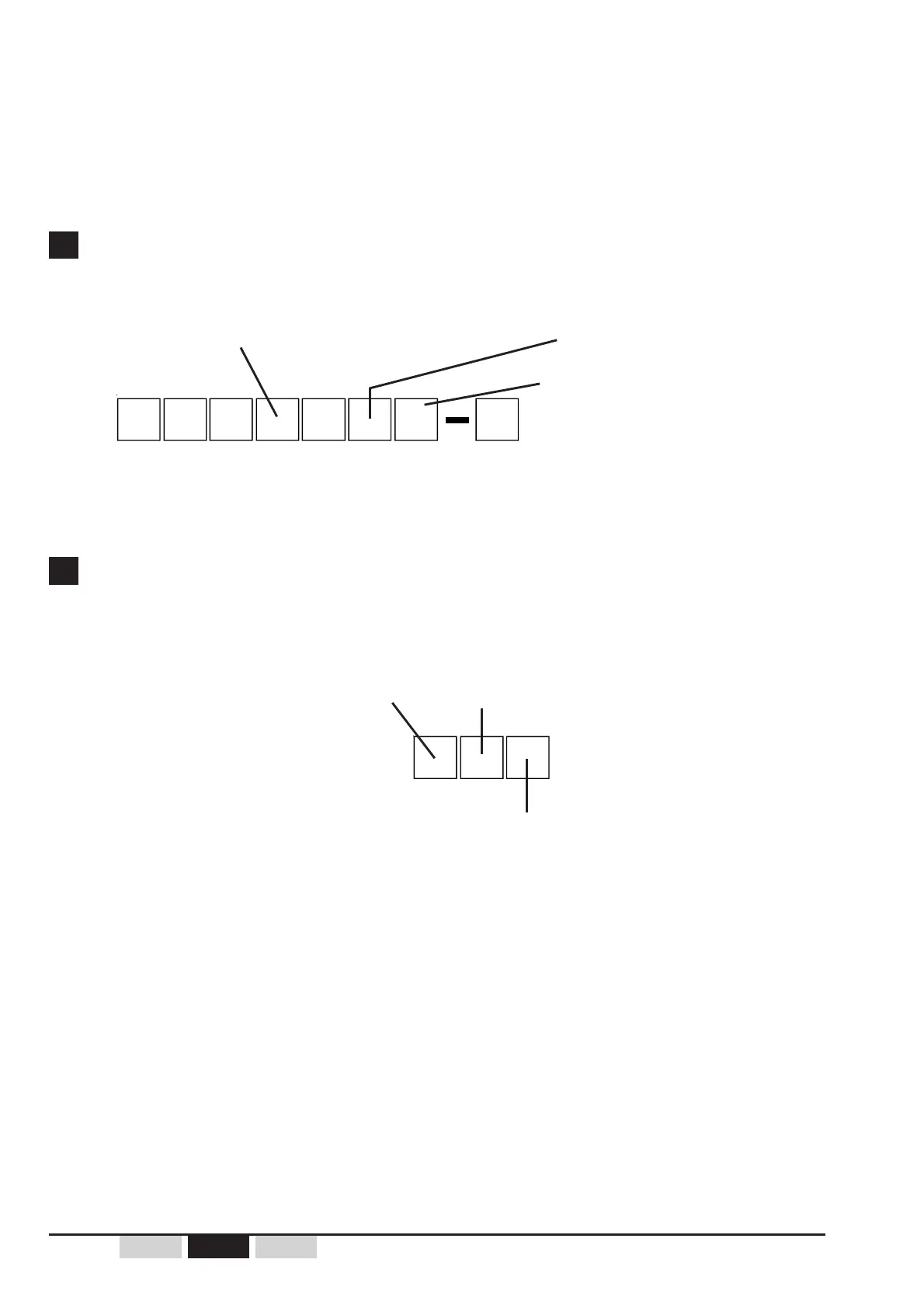

Main reference :
3 additional reference digits :
Type of communication and version :
0 : Radio, 433-434 MHz bands
1 : Radio, 433-434 MHz bands + option "starting up by infrared
validation"
Power supply :
4 : 12 - 24 VDC
A : 24 - 48 VAC
B : 115 - 230 VAC
(1)
= This only includes the required programming for the receiver, the UDF IR module must be ordered separately.
Programming of transmitter pushbuttons (BPSV
and BPDV type) interlocking, between button n°1/
n°2 and button n°3/n°4 :
0 : no interlocking
1 : interlocking with output relays set to OFF state
2 : interlocking with priority on left button (n°1, n°3)
3 : interlocking with priority on right button (n°2, n°4)
Programming of button - relay correspondence :
Number of relays controlled by BPDV button pairs
1 : 3 relays / or no BPDV
2 : 4 relays
X : special (equipment definition covered by a
customisation sheet)
Programming of button - relay correspondence :
Type of control for COM3 and COM3R
1 : 1, 1+2, 2 or no COM3, COM3R
2 : 1, OFF, 2
X : special (equipment definition covered by a
customisation sheet)
