Operation
Operating Levers/Pedals
84 84
9811/9950-1

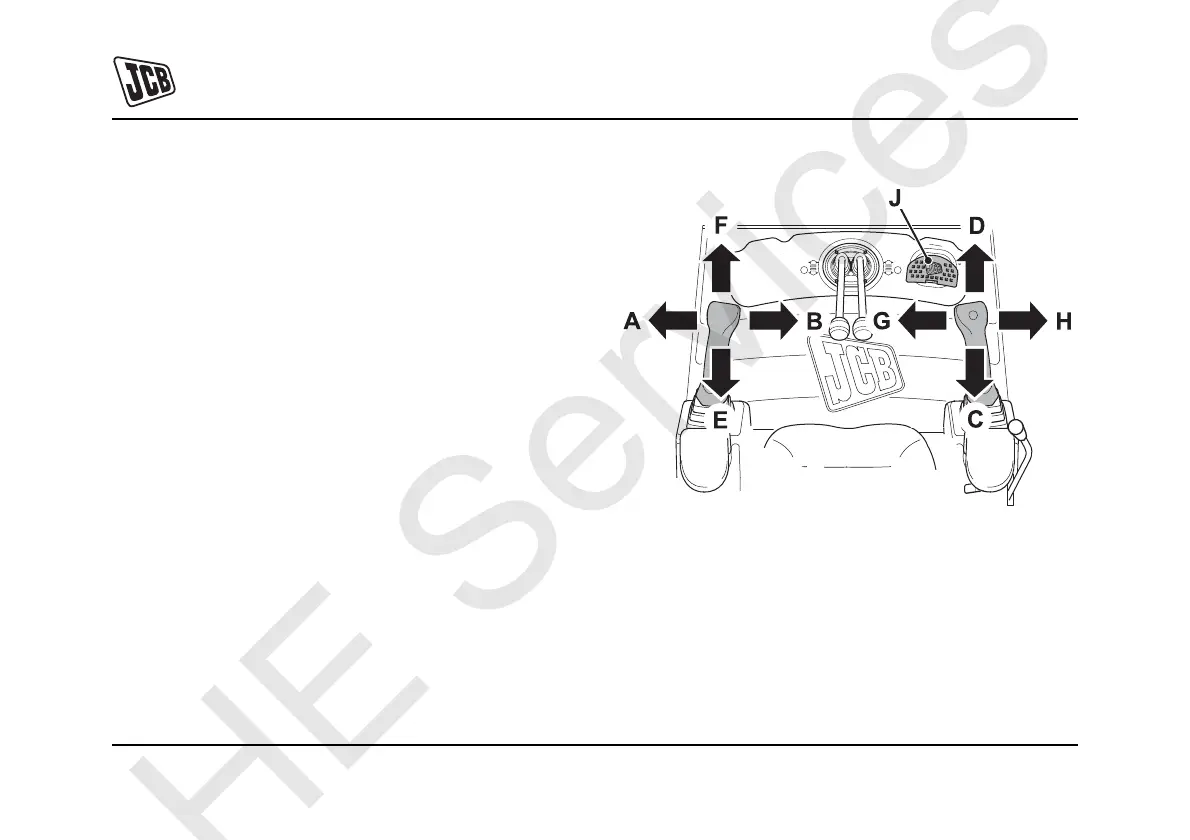

Excavator Levers (ISO Control Pattern)
731911-11
Fig 35.
A Slew cab left
B Slew cab right
C Raise boom
D Lower boom
E Dipper in
F Dipper out
G Close bucket (to gather a load)
H Open bucket (to dump a load)
J Swing boom. Refer to Swing Pedal.
