Buckets

274 274

9811/9950-1

Installing a Bucket on a Quickhitch

See Bucket Selection.

1 Position the Bucket

Set the bucket on firm level ground. Use safe and

correct lifting equipment to move the bucket.

2 Position the machine

a Position the machine so that the Quickhitch and

bucket are correctly aligned for connection as

shown.

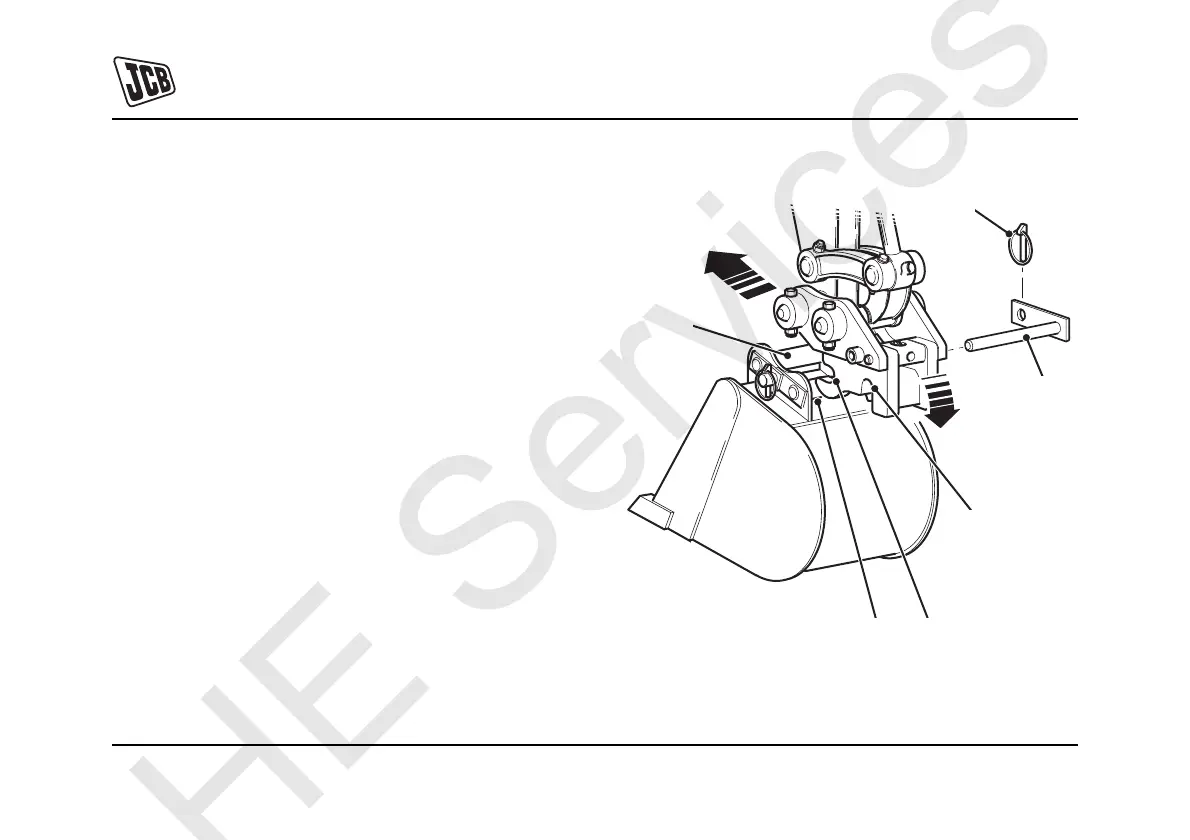

b Use the excavator controls to engage jaw A of the

Quickhitch with the pivot pin B of the bucket.

Fig 110.
