Optional Attachments
Quickhitch Rockbreaker
282 282
9811/9950-1
!MWARNING
Always fit the Quickhitch latch hook locking pin.
Failure to fit the pin will result in possible failure of the
latching mechanism. Such a failure would result in the
sudden release of an attachment from the machine;
you or others could be killed or seriously injured.
3-4-1-9
Operation
!MCAUTION
When the Quick-Hitch is installed and its attachment
fitted, there is a danger of the attachment hitting the
underside of the boom. Operate the boom and dipper
carefully when the Quick-Hitch and its attachment are
fitted.
2-4-4-2
The attachment is operated by a floor mounted pedal.
Make sure that the swing/auxiliary switch is set to
`auxiliary'.
The double acting ball valve should be open for single
acting attachments and closed for double acting
attachments.

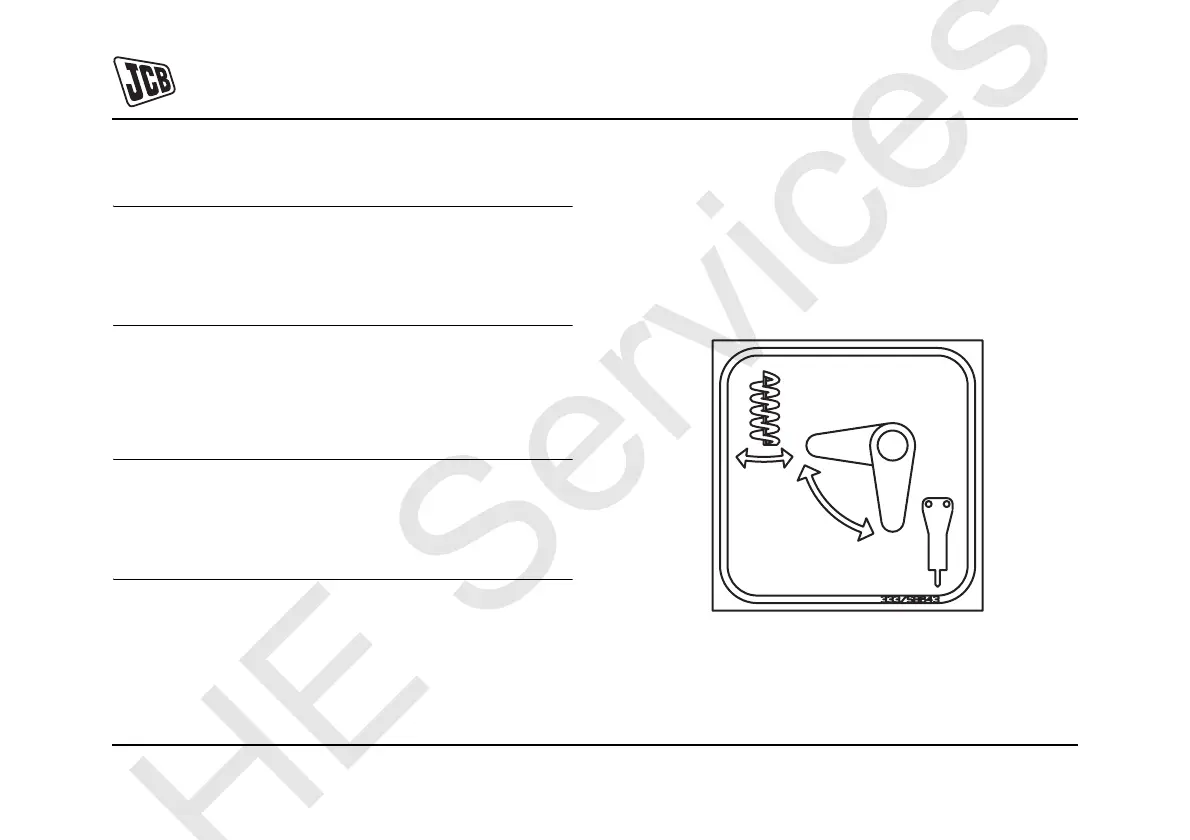

333/s8643-1
Fig 113.
