Routine Maintenance
Electrical System
220 220
9811/9950-1
Fuses
Introduction
!MCAUTION
Fuses
Always replace fuses with ones of correct ampere
rating to avoid electrical system damage.
8-3-3-5
The electrical circuits are protected by fuses. If a fuse
blows, find out why before fitting a new one.
Two primary fuses A and B are located in the battery
compartment below the cab door. K
Fig 80. ( T 220).
The secondary fuses are in the fuse box located below the
operator's seat. K
Fig 81. ( T 221).
Open panel C using the starter key. Pull off the cover to
gain access to the fuses.

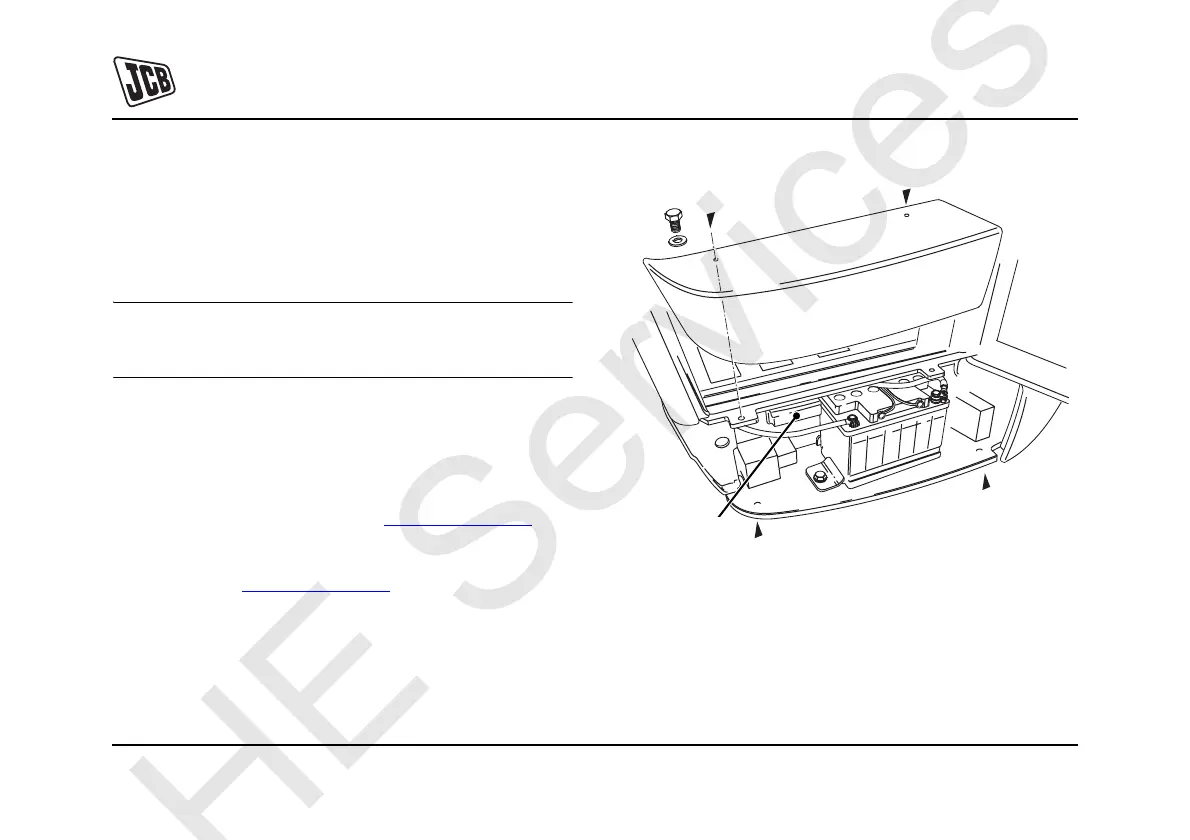

Fig 80. Primary Fuses
A,B
