Routine Maintenance
Electrical System
216 216
9811/9950-1
Battery Isolator (if fitted)
To disconnect the battery from the machine electrics a
battery isolator switch has been installed.
!MCAUTION
Before carrying out arc welding on the machine,
disconnect the battery and alternator to protect the
circuits and components. The battery must still be
disconnected even if a battery isolator is fitted.
INT-3-1-13
To disconnect the machine electrics:
1 Open the tool storage cover. K Toolbox (if
fitted) ( T 191).
2 Insert the key A, then turn the battery isolation switch
to the off position. K
Fig 79. ( T 216).
To connect the machine electrics:
1 Turn the battery isolation switch A to the on position
and remove the key.
2 Close the tool storage cover.

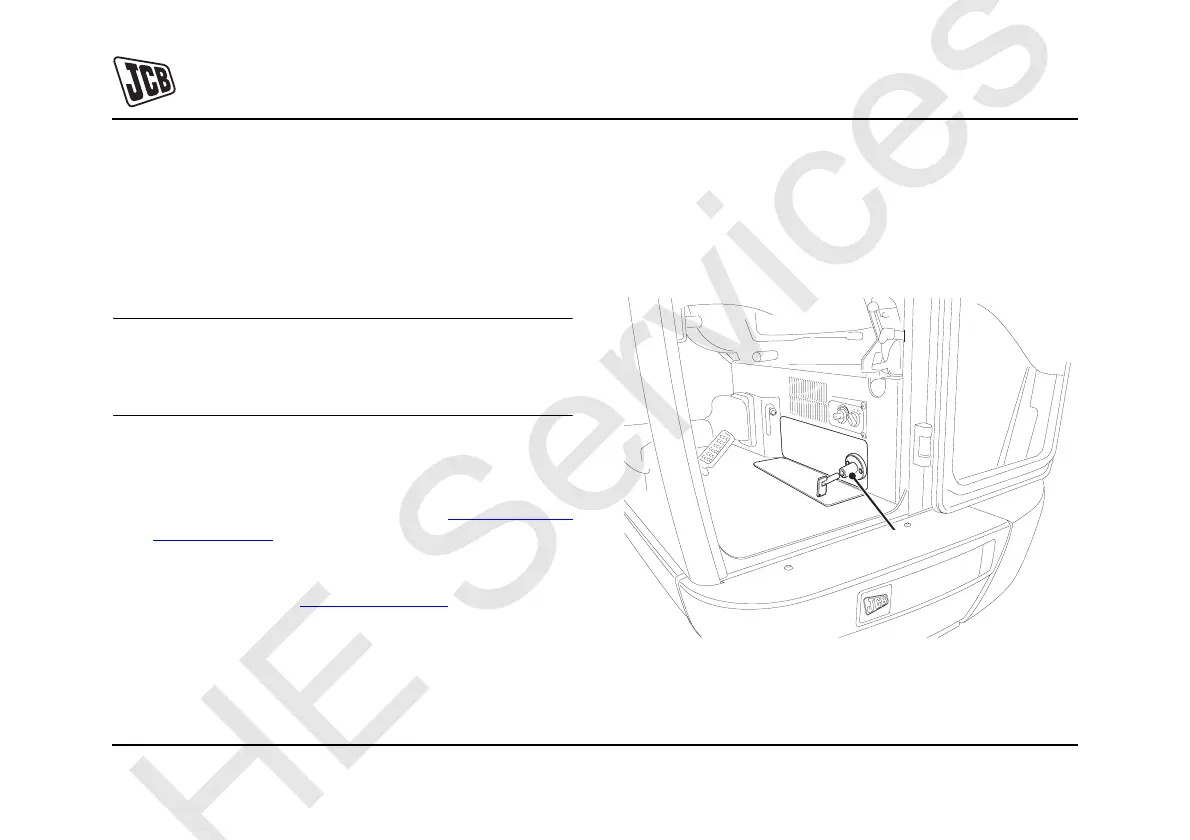

T034130
Fig 79.
A
