Routine Maintenance
Hydraulic System
244 244
9811/9950-1
Replacing the Hydraulic Filter
1 Open the engine cover and hydraulic bay cover.
K Access Panels ( T 209).
2 Unscrew cap B and spring C. K

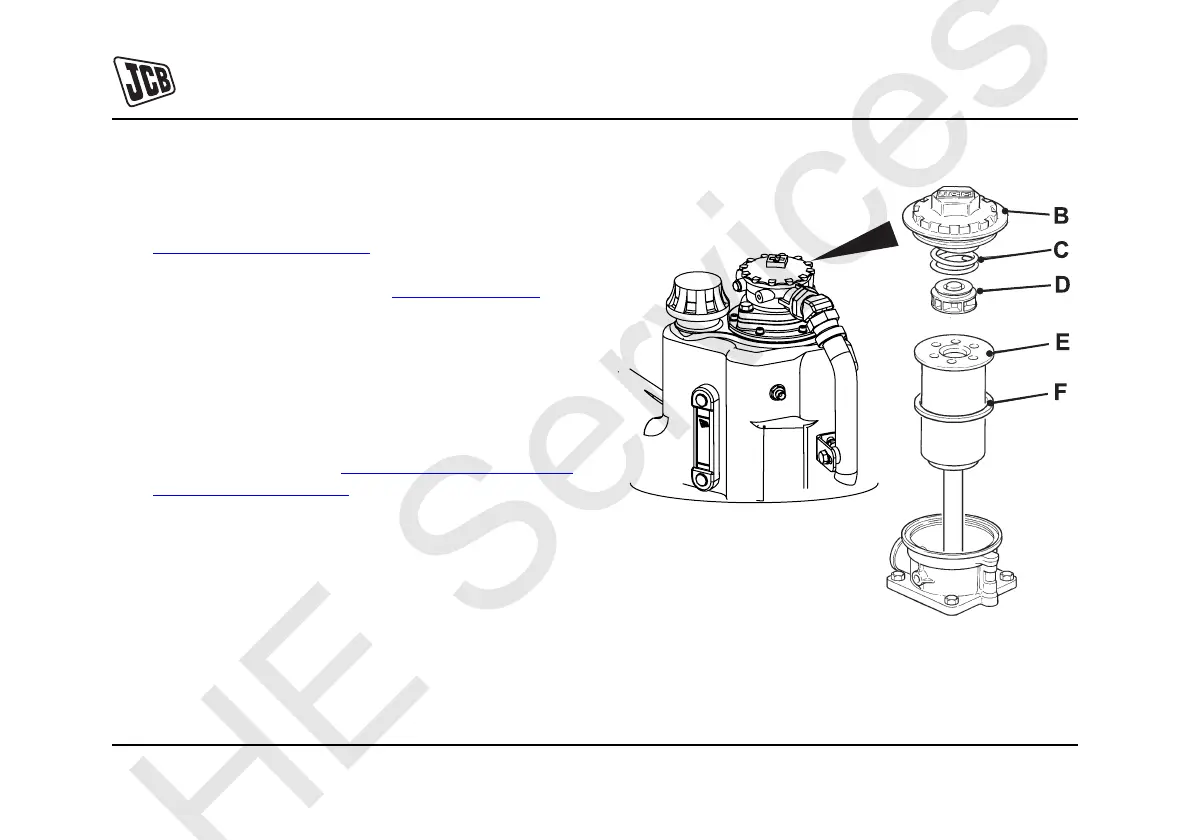

Fig 95. ( T 244).
3 Withdraw bypass valve D, cartridge filter E and seal
F.
4 Clean all metal parts. Reassemble using new
cartridge filter E and seal F.
5 Top up hydraulic fluid. K
Checking and Adjusting
the Fluid Level ( T 243)
6 Replace bypass valve D, spring C and cap B.
Fig 95.
