Introduction

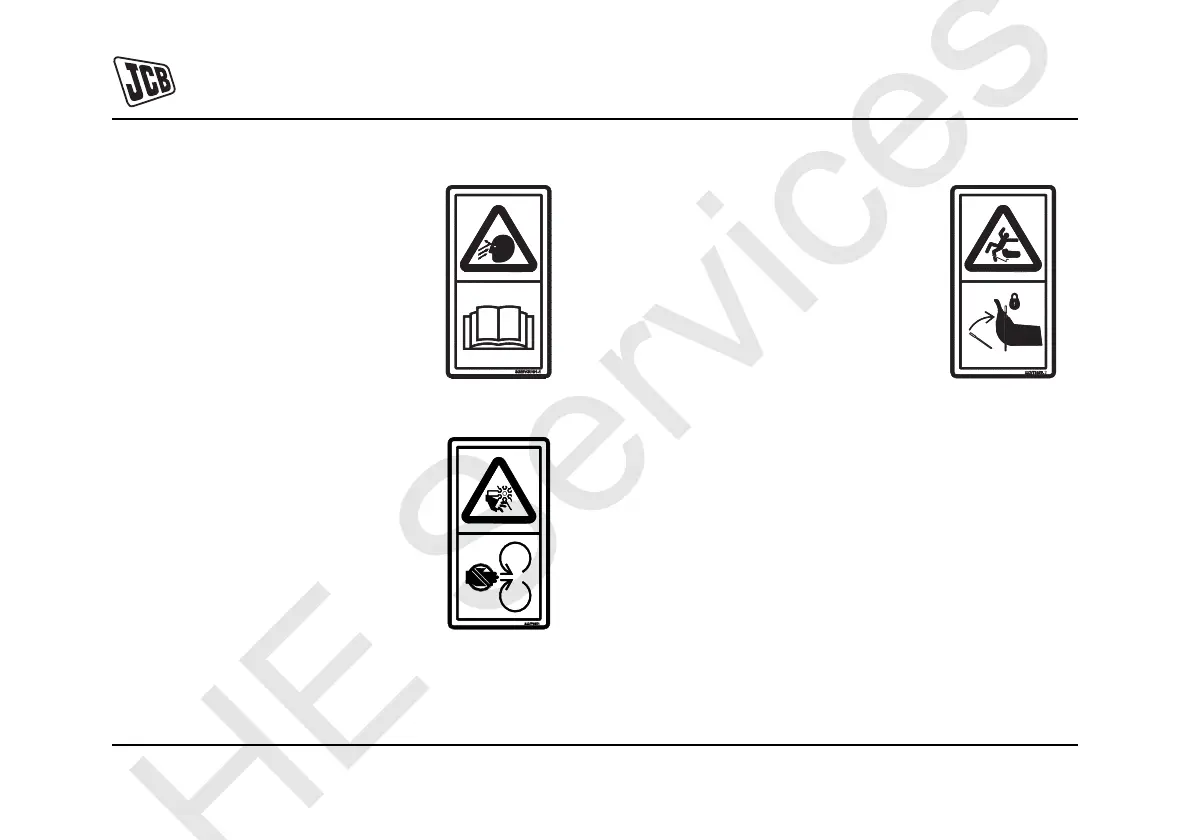

Safety Labels

36 36

9811/9950-1

ISO-15E

332-V3761-1

Part Number: 332/V3761

Description: Flying debris warning.

Refer to Optional Attachments.

ISO-09A

332-P4581-1

Part Number: 332/P4581

Description: Severing of hands or

fingers. Keep clear of/do not reach

into the moving parts. Stop the engine

and remove the starter key before you

start maintenance work. Refer to

Making the Machine Safe (Routine

Maintenance Section).

ISO-11A

332-T9356-2

Part Number: 332/T9356

Description: Falling hazard. Lift the

lever lock.
