Operation
Doors and Windows
56 56
9811/9950-1
C035130

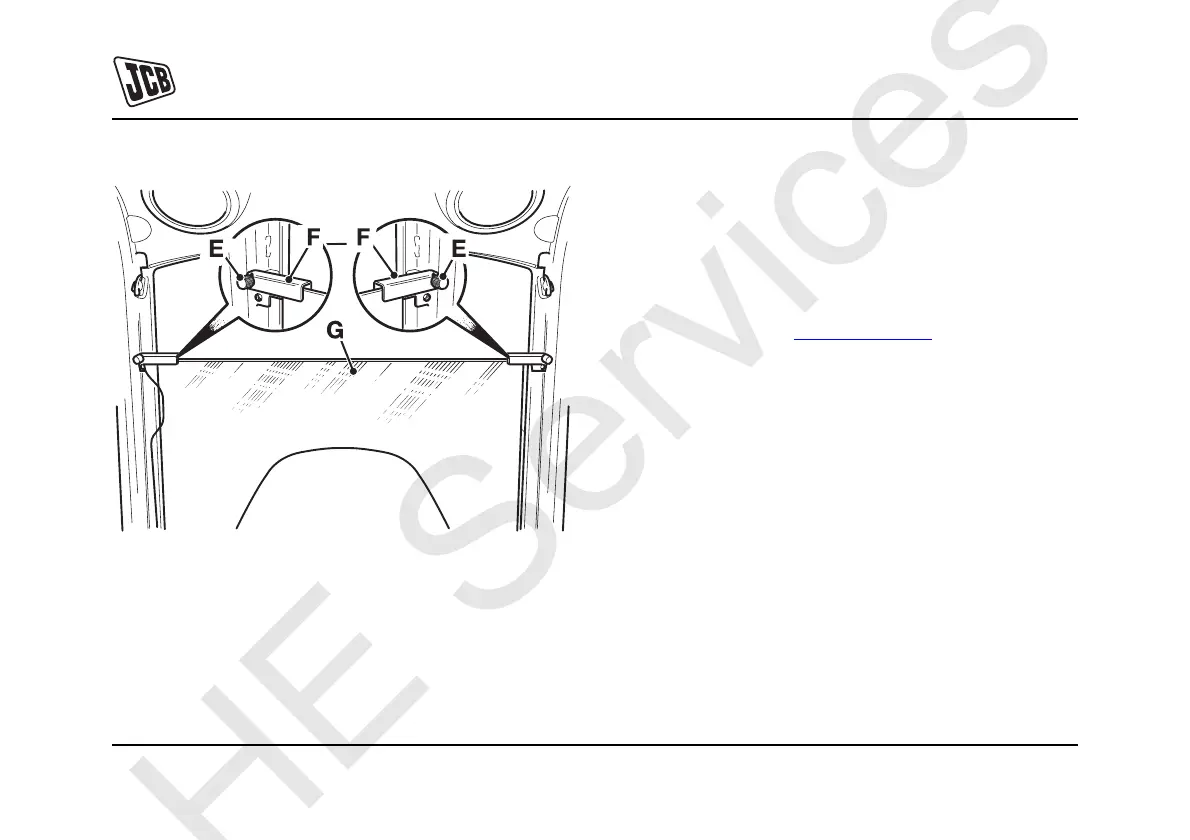

Fig 14.
Slacken screws E and turn retainers F to the raised
position.
Carefully lift out the windscreen lower panel and stow it
next to the rear window as shown at G. Turn retainers F to
secure the panel and tighten screws E.
To refit the windscreen lower panel, reverse the removal
procedure. Make sure the right hand edge of the panel is
located firmly in the groove on the windscreen pillar before
fitting retaining bar D. K
Fig 13. ( T 55).
