Operation
Drive Controls, Switches and Instruments
77 77
9811/9950-1
Digital LCD Fuel Gauge
T2-008_2
Shows the amount of fuel in the fuel tank. Functions only
with the starter switch set to ON.

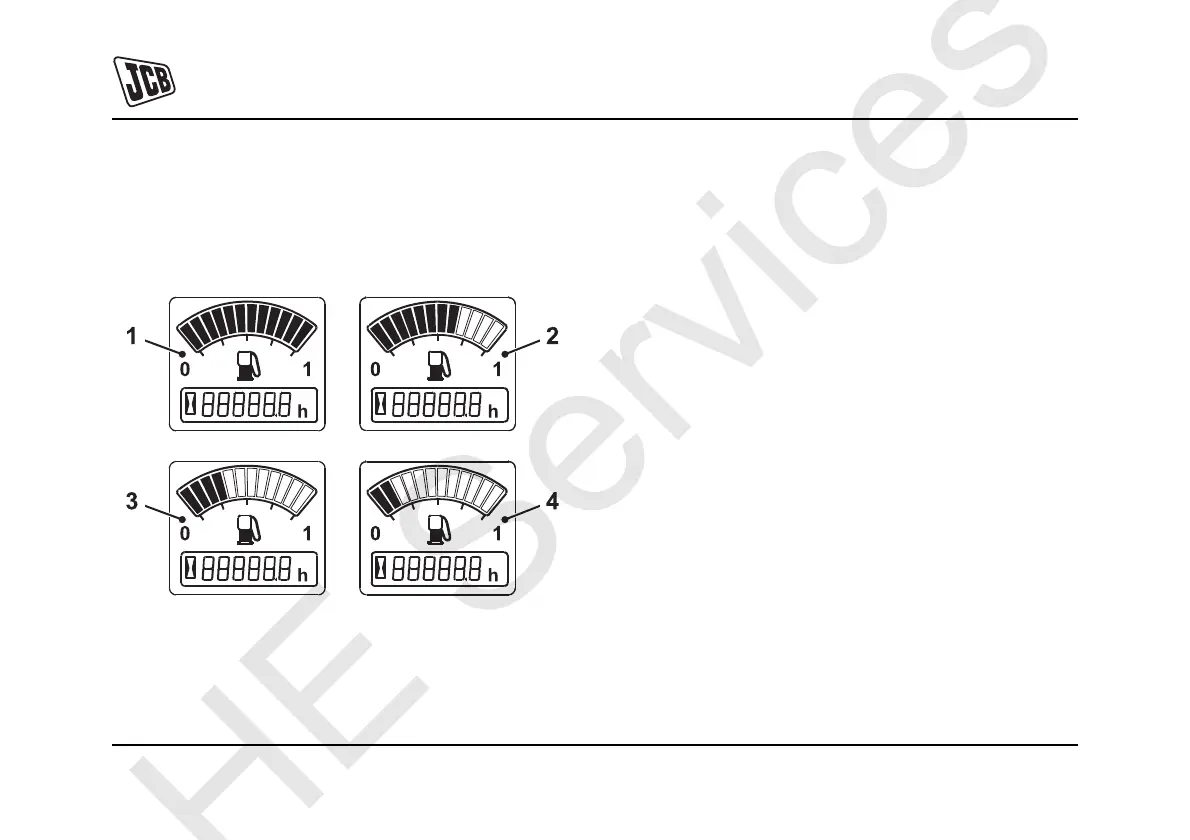

Fig 31.
1 Full Tank
All bars illuminated. Pump symbol illuminated
2 4 bars to Full
Pump symbol illuminated. All bars illuminated and
reducing as level drops ie. 11 bars, 10 bars, 9 bars
etc.
3 4 bars to 3 bars
Buzzer gives 3 short beeps. Pump symbol starts to
flash.
4 3 bars to 1 bar
Pump symbol remains flashing. 1 bar illuminated
(nearly empty). 0 bars illuminated (tank empty).
Note: The flashing of all fuel level bars and the filler pump
symbol indicates a fault in the fuel sender circuit. Contact
your JCB dealer.
