JCM EBA Series - Environmental Specifications; Electrical Specifications; Structural Specifications; Table 5 EBA-40 Environmental Specifications

P/N 960-000173R_Rev. A {EDP #229278} © 2013, JAPAN CASH MACHINE CO., LTD.
7
EBA
®
Series Banknote Acceptor (EBA-40) Integration Guide
Environmental Specifications
Electrical Specifications
Structural Specifications

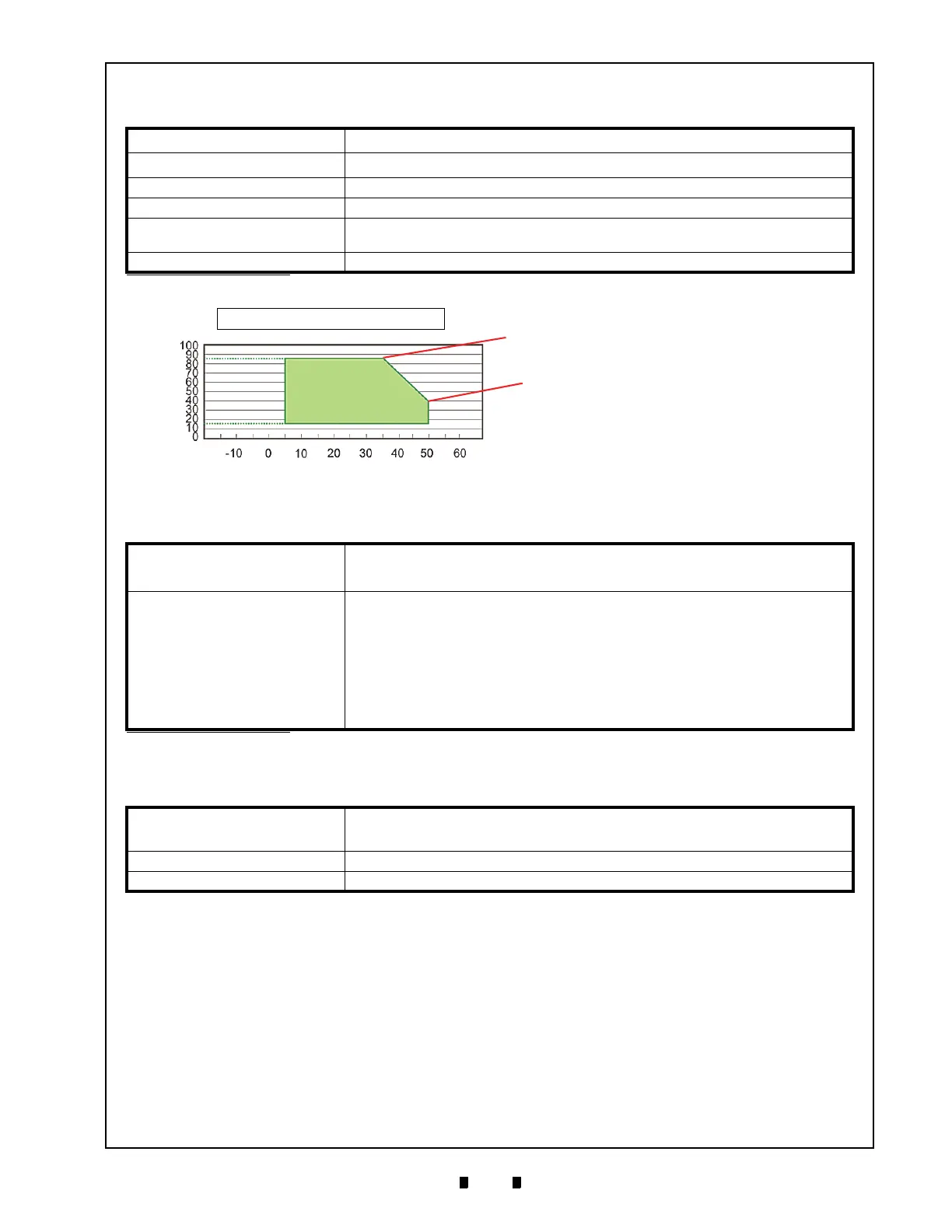

Table 5 EBA-40 Environmental Specifications
Operating Temperature:
5ºC to +50ºC (41ºF to 122ºF)
*
*. Depends on hydrothermal conditions.
Storage Temperature:
-20ºC to +60ºC (-4ºF to 140ºF)
*
Relative Operating Humidity: 30% to 85% RH (non-condensed)
Relative Storage Humidity: 30% to 85% RH (non-condensed)
Visible Light Sensitivity:
Avoid contact with direct sunlight
(Interior lighting must be incandescent with a
Radiant Angle of 15 Degrees or more having an Illu
mination index of 3000 Lux or less)
Installation: Indoors Only
Table 6 EBA-40 Electrical S
pecifications
Supply Voltage:
12V DC ±5% (Greater than 3A)
24V DC ±5% (Greater than 1.6A)
*
*. Use a Current Source Limiting Power Supply
Current Consumption:
12V DC
• Standby = 180mA
• Operation = 1.0A
• Peak = 3.0A
24V DC
• Standby = 110mA
• Operation = 0.6A
• Peak = 1.6A
Table 7 EBA-
40 Structural Specifications
Weight:
With the SD3 Stacker: Approximately 2.5kg (5.51lbs.)
Without the SD3 Stacker: Ap
proximately 1kg (2.2lbs.)
Mounting: Horizontal
Outside Dimensions: See “Entire Unit Outside Dimensions” on page 33 of this Manual
Hydrothermal Condition Table
Humidity [%RH]
Temperature [ºC]
Allowable
and Humidity Range
Operating
Temperature
50ºC/40RH%
35ºC/80RH%
