JCM EBA Series - 9 Unit Dimensions; Entire Unit Outside Dimensions; Head Assembly Outside Dimensions; Figure 29 EBA-40 Banknote Acceptors Outside Dimensions

P/N 960-000173R_Rev. A {EDP #229278} © 2013, JAPAN CASH MACHINE CO., LTD.
33
EBA
®
Series Banknote Acceptor (EBA-40) Integration Guide
9 UNIT DIMENSIONS
E NTIRE U NIT O UTSIDE D IMENSIONS

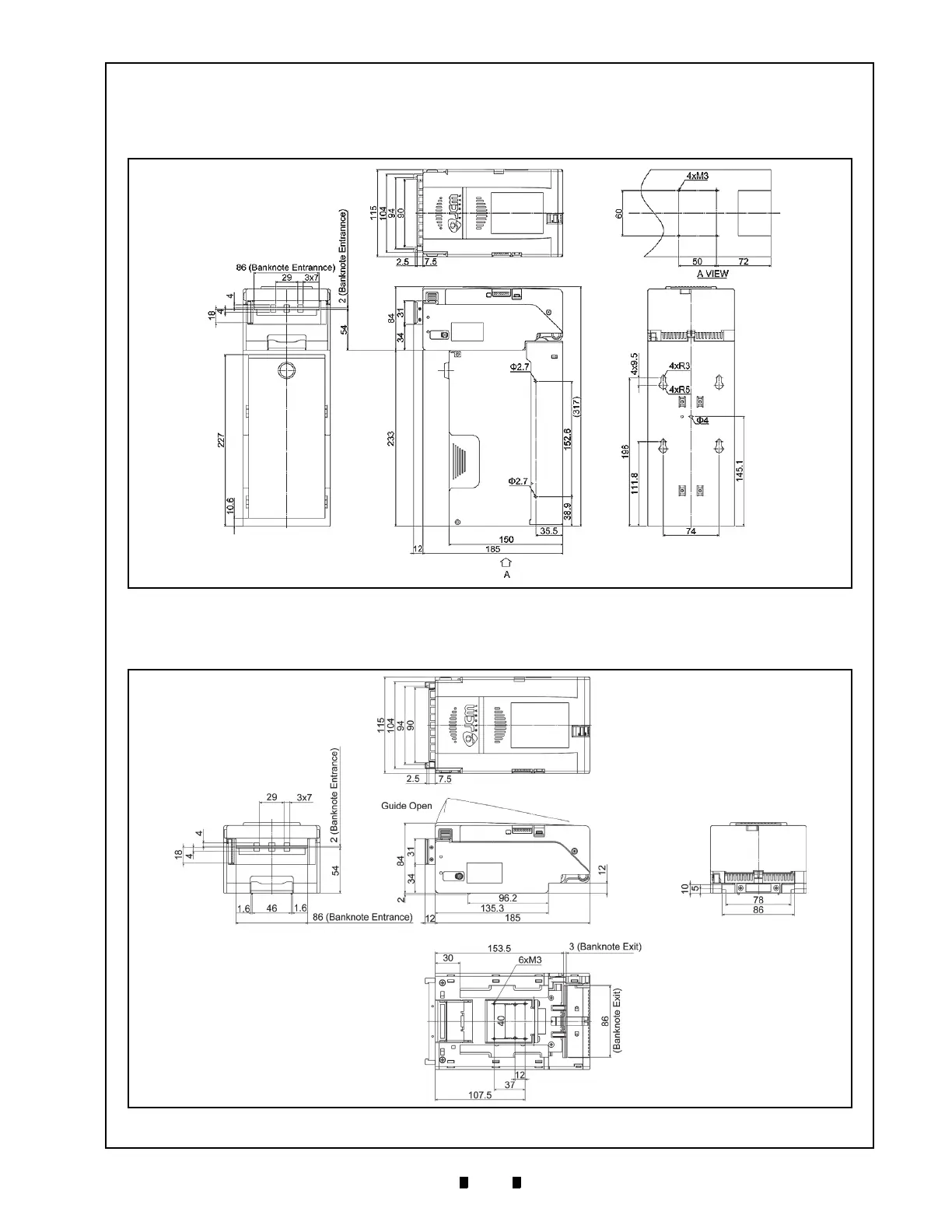

Figure 29 illustrates the EBA-40 Unit’s outside dimensions with the SD3 Stacker.
H EAD A SSEMBLY O UTSIDE D IMENSIONS
Figure 30 illustrates the EBA-40 Head Assembly’s outside dimensions (without the SD3 Stacker).
NOTE: All dimensions in millimeters
Figure 29 EBA-40 Banknote Acceptor’s Outside Dimensions
NOTE: All dimensions in millimeters
Figure 30 EBA-40 Banknote Acceptor’s Outside Dimensions
