22
EBA
®
Series Banknote Acceptor
(EBA-40) Integration Guide
ST
ANDARD INTERF
ACE CIRCUIT SCHEMA
TICS (Continued 2)

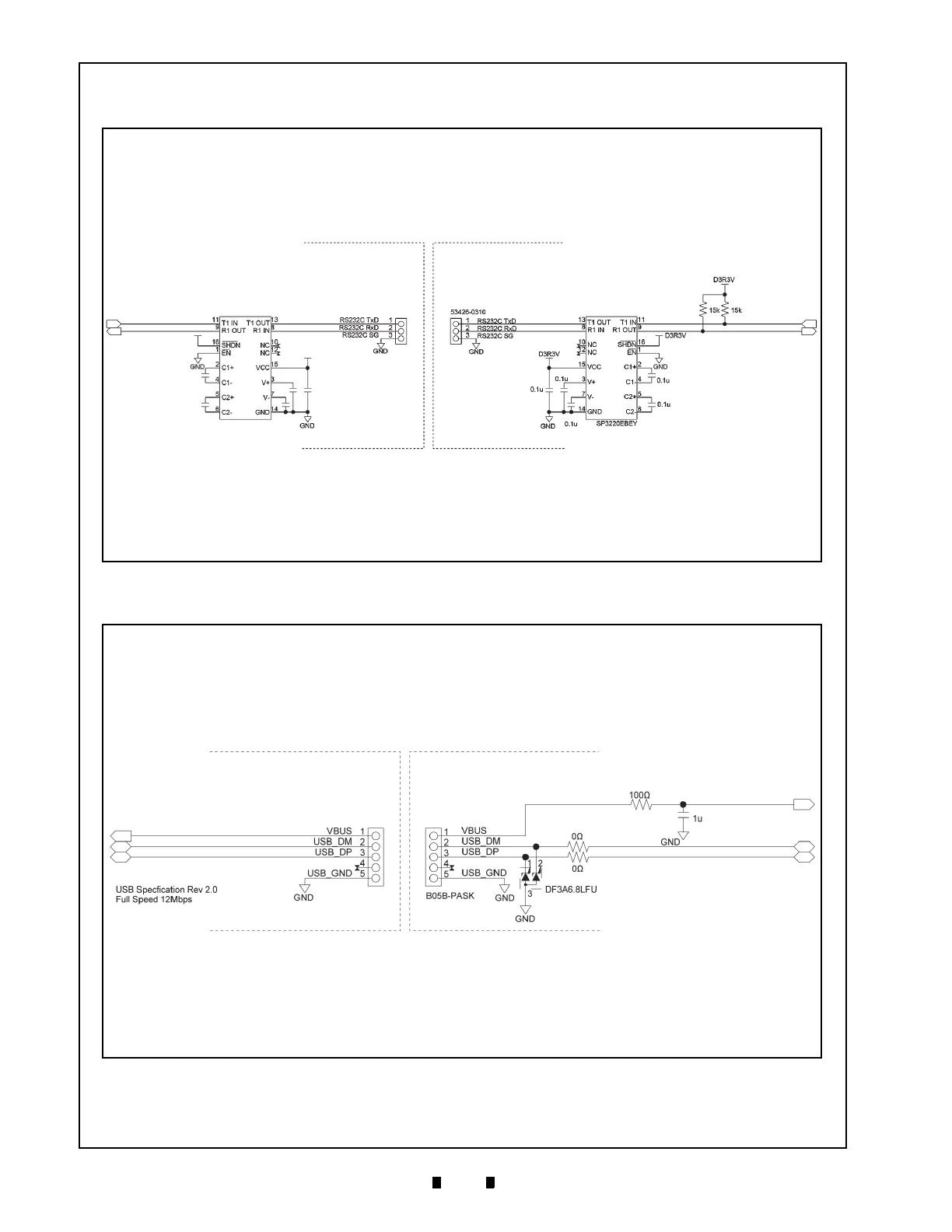

Figure 23
illustrates the EBA-40 RS232C
Interface Schematic Diagram.
Figure 24
illustrates the EBA-40 USB Interface Schematic Diagram..
CONTROLLER SIDE
EBA SIDE
Figure 23
EBA-40 RS232C Interfac
e Schematic Diagram
CONTROLLER SI
DE
EBA SIDE
Figure 24
EBA-40 USB Interface Schematic Diagram
