P/N 960-000173R_Rev. A {EDP #229278}
© 2013, JAPAN CASH MACHINE CO., LTD.
20
EBA
®
Series Banknote Acceptor
(EBA-40) Integration Guide
6
S
TANDARD INTERFACE CIRCUIT SCHEMATICS

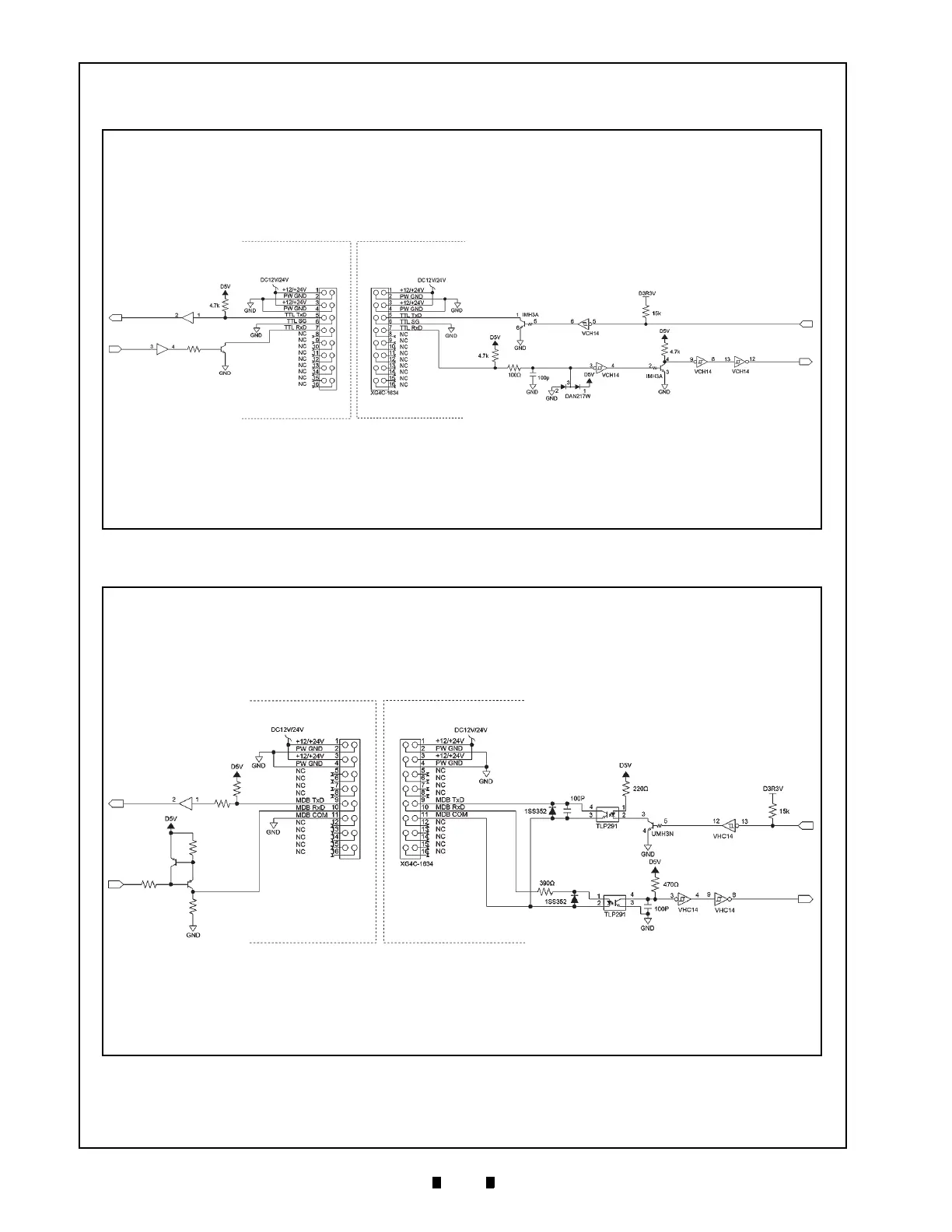

Figure 19
illustrates the EBA-40 TTL
Interface Schematic Diagram.
Figure 20
illustrates the EBA-40 MDB
Interface Schematic Diagram.
CONTROLLER SIDE
EBA SIDE
Figure 19
EBA-40 TTL In
terface Schematic Diagram
CONTROLLER SIDE
EBA SIDE
Figure 20
EBA-40 MDB Interface Schematic Diagram
27
29
