Series Banknote Acceptor (EBA-40) Integration Guide
Perform the following steps to install the EBA-40
Acceptor Head Assembly without the Mounting
Bracket:
1. Confirm the six (6) installation holes (See Figure
10 a
1
through a
6
) on the Lower Cover (See Figure
10 b) located on the
bottom side of the EBA-40
Acceptor Head Assembly.
2. Place the EBA-40 Acceptor Head Assembly in its
int
ended mounting location.
3. Bolt the Lower Cover of the
EBA-40 Acceptor
Head Assembly into its intended location using
six (6) M3 Screws (See Figure 10 c
1
through c
6
)
from the bottom side of the Frame when this
mo
unting configuration is preferred.
Lock Installation
One security lock can be installed onto the EBA-40
SD3 Stacker. When installing a security lock, the
following attachment accessories may be required:
• Tang
Choose a Lock that fits a standard 17.4 mm cylin-
der length format. This is the only format that
is
supported. (See Figure 12).
Bottom View
3
7
m
m
2
5
m
m
c
1
-c
6
1
2
m
m
4
0
m
m
4
2
m
m
Attention
Do not use screws
longer than 5mm
JCM GLOBAL
b
a
1
-a
6

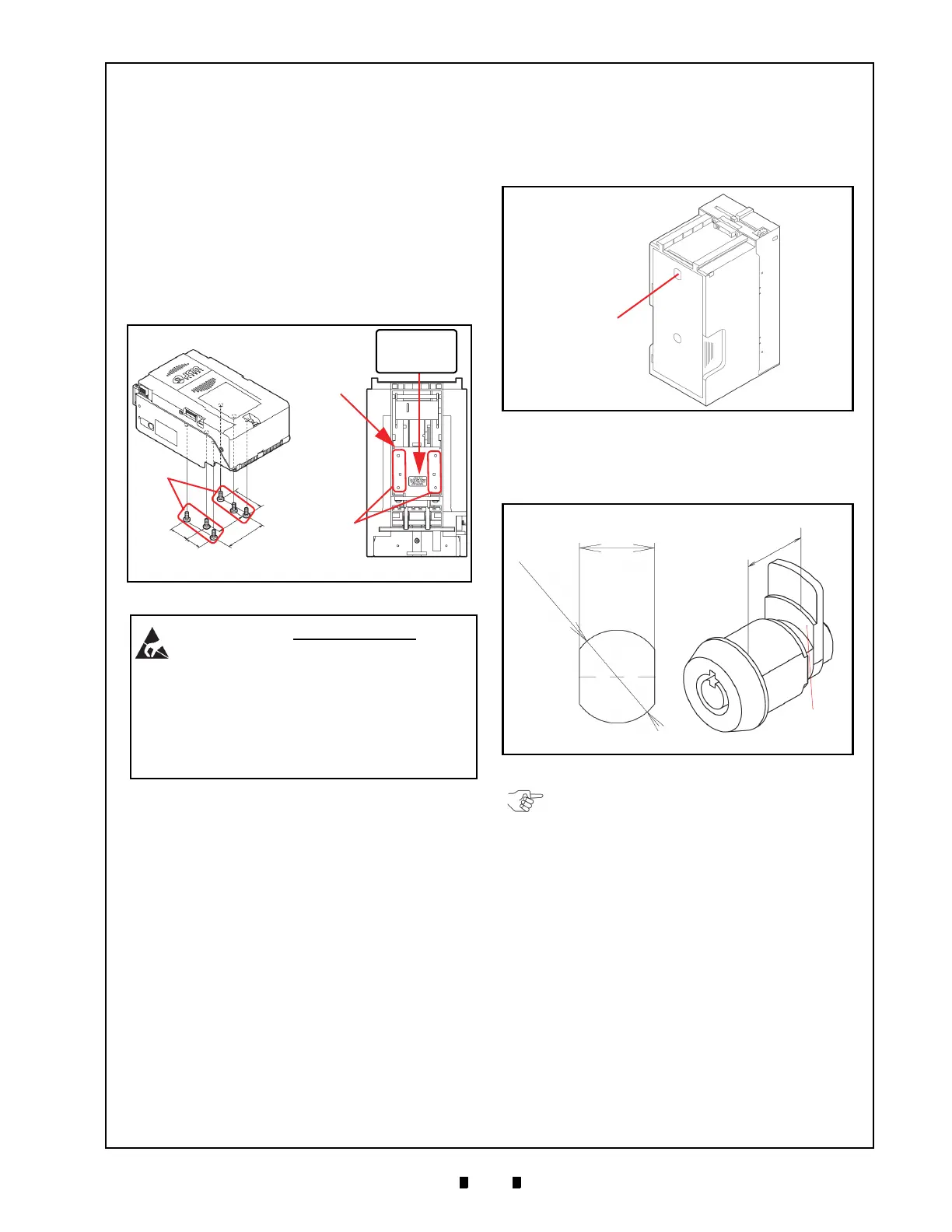

Figure 10 M3 Screw Locations (Rear & Bottom)
WARNING: The maximum length of the
M3 Screws should be selected
considering the Cabinet or Mounting
Bracket thickness. The Mounting
Screws’ length should not extend more
than 4mm upward from the bottom of
the SD3 Stacker Box Frame and the
Lower Cover.
Figure 11 Key Hole Location
1
7
.
4
m
m
15.8 mm
Ø1
9
.
5
Tang
(Front)
Figure 12 Lock Dimension & Cylinder Length
NOTE: Make sure the Tang is correctly installed,
as illustrated in Figure 12.
To Next Page
