JCM EBA Series User Manual

P/N 960-000173R_Rev. A {EDP #229278} © 2013, JAPAN CASH MACHINE CO., LTD.
24
EBA
®
Series Banknote Acceptor (EBA-40) Integration Guide
7 OPERATIONAL FLOWCHART

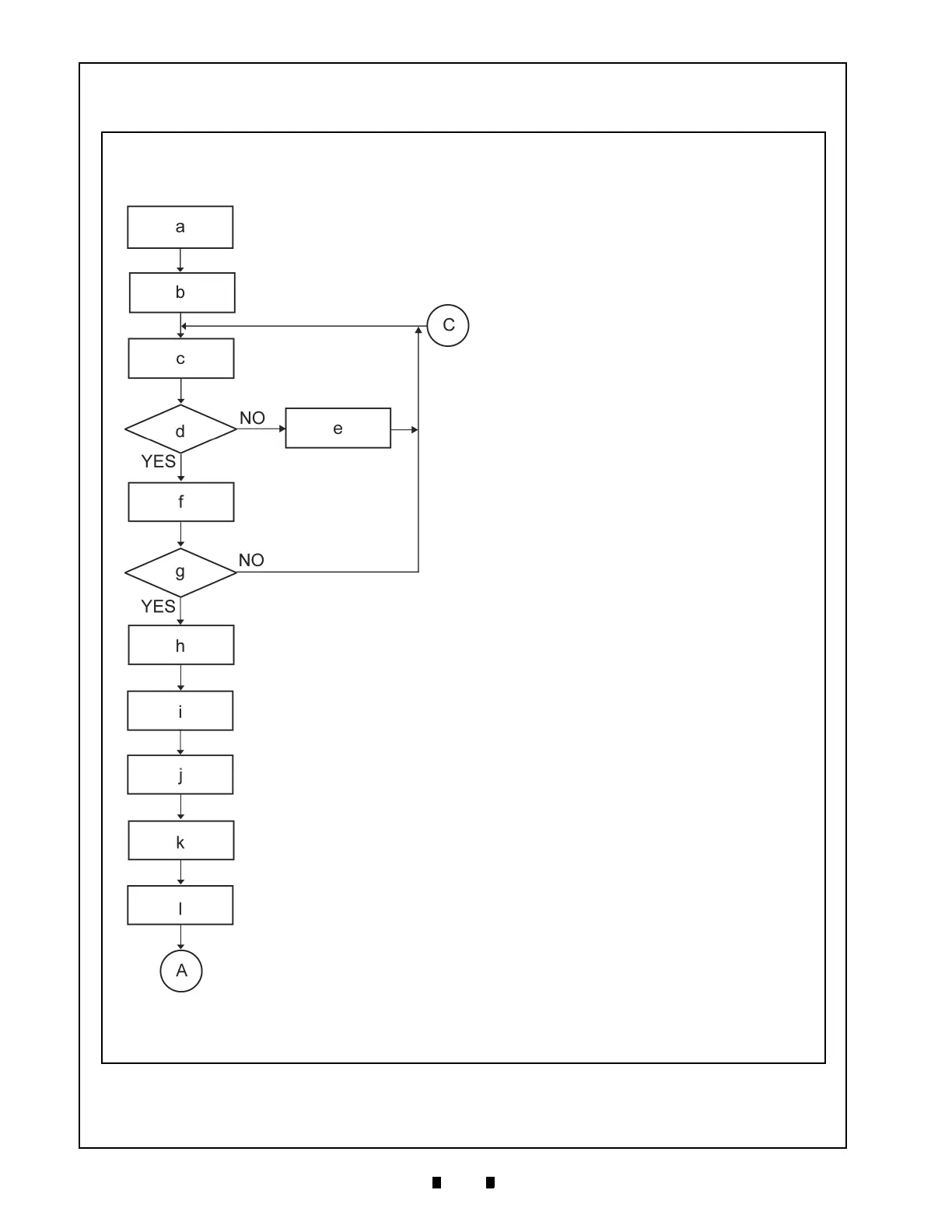

Figure 26 depicts Part One of a typical EBA-40 Initialization Banknote acceptance flow process.
b) Initializing
c) Stand-by
d) Enable Acceptance?
f) External LED Display shows Enable Accept
Pattern
g) Inserted the Banknote?
h) Intake the Banknote
i) Centering the Banknote
j) Start Transporting the Banknote
k) Sampling the Banknote Data
A) To “Validation” Flow (See Figure 27)
l) Stop Transporting the Banknote
C) Return from “Stacking” Flow (See Figure 28)
a) Apply Power to the Unit.
e) External LED Display shows No Accept
Pattern
Figure 26 EBA-40 Operational Flowchart (Initializing)
