JCM EBA Series User Manual

P/N 960-000173R_Rev. A {EDP #229278} © 2013, JAPAN CASH MACHINE CO., LTD.
10
EBA
®
Series Banknote Acceptor (EBA-40) Integration Guide

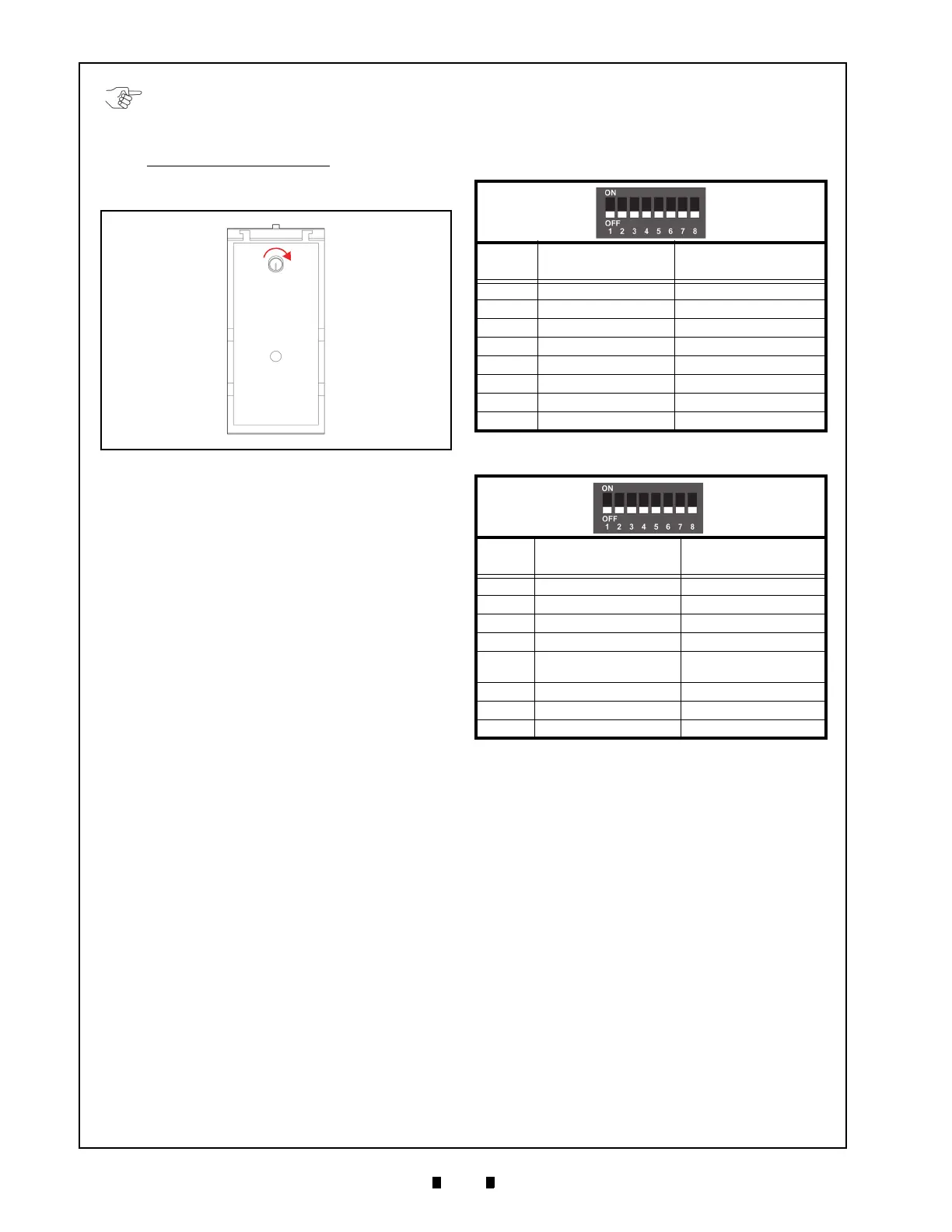

DIP Switch Configurations
This section provides the denomination DIP Switch
Block 1 (DS1) and 2 (DS2) Settings for the
EBA-40 Unit.
NOTE: There are many lock designs. Locks vary
greatly in price, security, keying policies, etc..
The customer is responsible for selecting a lock
that is appropriate for the intended purpose.
JCM does not test or endorse any commercially
available brand of lock for its security
characteristics.
Figure 13 Key Unlock Rotation Requirement
Unlock
Table 8 DIP Switch Block 1 Settings
Switch
No.
Switch ON Switch OFF
1
VEND 1 INHIBIT VEND 1 ACCEPT
2
VEND 2 INHIBIT VEND 2 ACCEPT
3
VEND 3 INHIBIT VEND 3 ACCEPT
4
VEND 4 INHIBIT VEND 4 ACCEPT
5
VEND 5 INHIBIT VEND 5 ACCEPT
6
VEND 6 INHIBIT VEND 6 ACCEPT
7
VEND 7 INHIBIT VEND 7 ACCEPT
8
TEST MODE FUNCTION
Table 9 DIP Switch Block 2 Settings
Switch
No.
Switch ON Switch OFF
1
With SD3 Stacker Without SD3 Stacker
2
Key Switch Enabled Key Switch Disabled
3
ccTalk (Encrypted) ccTalk (Non-Encrypted )
4
RS232C Interface Other Interface
5
With Barcode Sensor
Board
Without Barcode Sensor
Board
6
Reserved Reserved
7
Reserved Reserved
8
Reserved Reserved
DS1
DS2
