S ENSOR AND R OLLER L OCATIONS

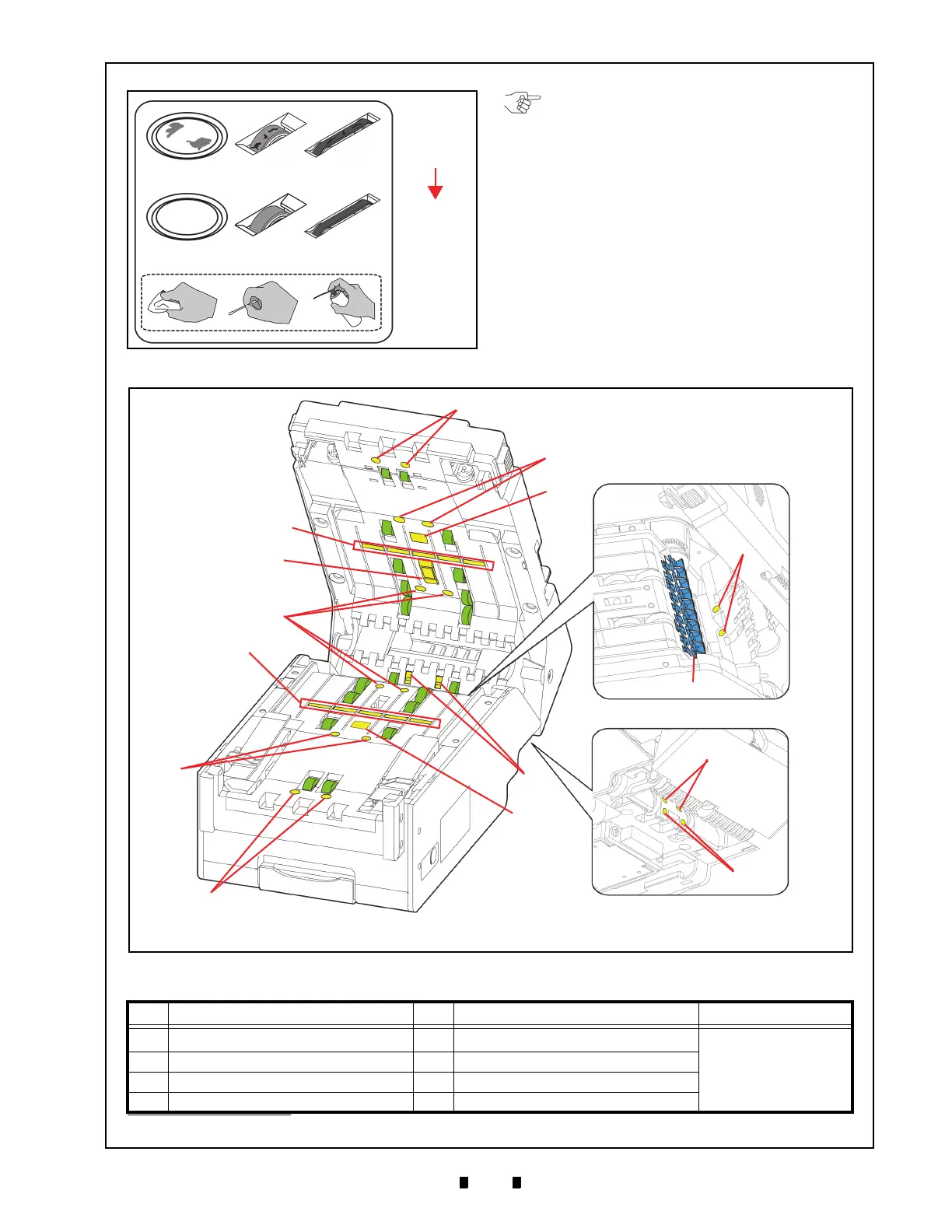

Figure 18 illustrates the various EBA-40 Unit’s
sensor cleaning locations. Table 19 lists the
EBA-40 sensor type cleaning methods.
Lens
Roller
Lint-free Cloth Cotton Swab Air Jet
Before
Cleaning
After
Cleaning
Belt
Figure 17 Sensor Cleaning
NOTE: Calibration is recommended after
cleaning.
Table 19 EBA-40 Sensor Type Cleaning Methods
Sym. Sensor/Roller Type Sym. Sensor/Roller Type Cleaning Method
a
Entrance Sensor
e
Barcode Sensor (Option)
*
Wipe clean using a
soft lint-free cloth or
blow clean using
compressed air.
b Centering Guide Timing Sensor f Magnetic Sensor
c Validation Sensor g Anti-Pullback Exit Sensor
d Anti-Pullback Entrance Sensor h Exit Sensor
*. Either the Upper or Lower Barcode Sensor is required.
Figure 18 EBA-40 Sensor and Roller Cleaning Locations
h
e
g
a
d
f
b
a
b
e
c
Anti-Pullback System
c
Note: Clean Rollers using a damp, lint-free, Micro-fiber Cloth.
Note: Clean the Anti-pullback
System with Compressed Air.
h
g
