P/N 960-000173R_Rev. A {EDP #229278} © 2013, JAPAN CASH MACHINE CO., LTD.
11
EBA
®
Series Banknote Acceptor (EBA-40) Integration Guide

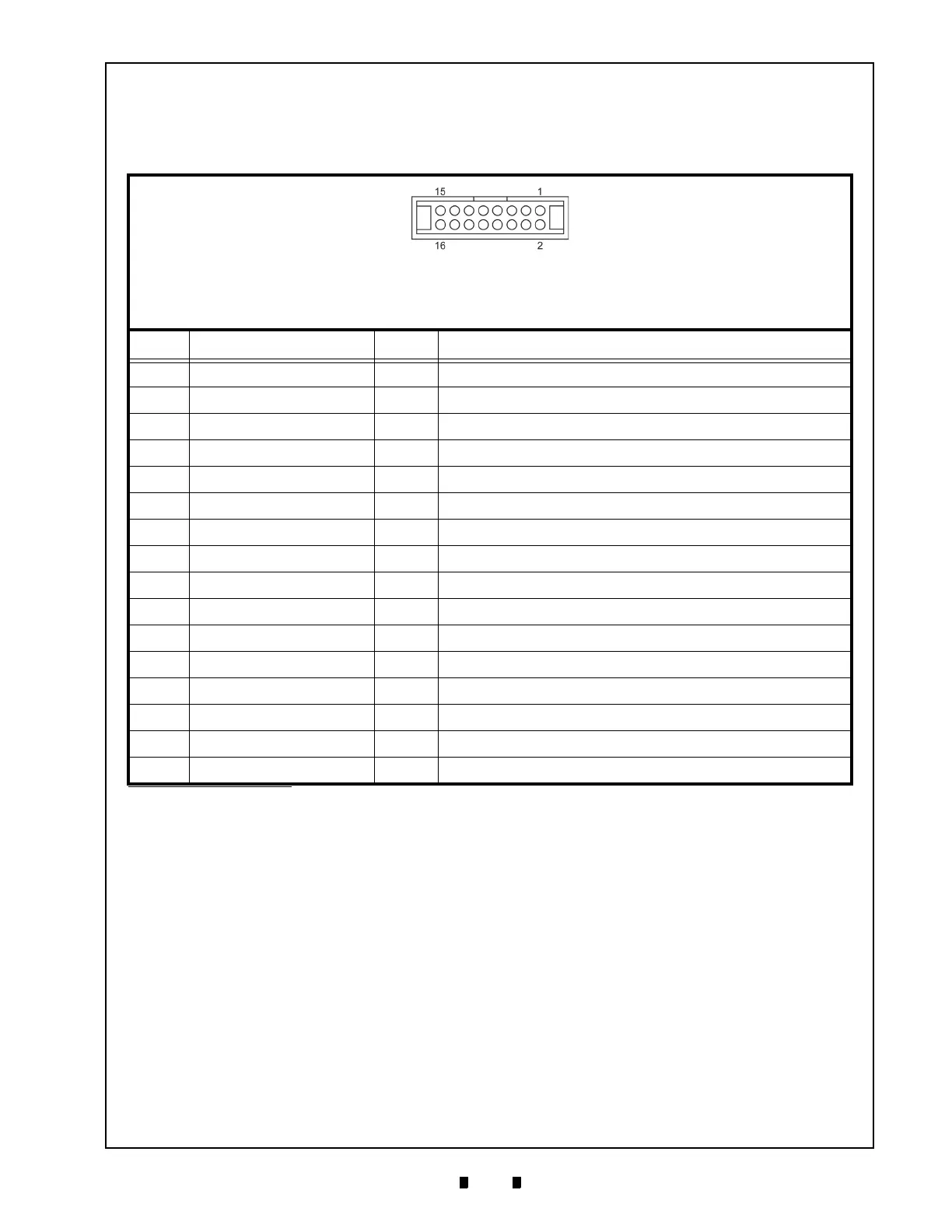

4 CONNECTOR PIN ASSIGNMENTS
Table 10 through Table 18 list the EBA-40 Unit’s pin assignments.
Table 10 lists the EBA-40 TTL Interface Pin Assignments.
Table 10 EBA-40 TTL Interface Pin Assignments
Header: XG4C-1634 (OMRON)
Housing: XG5M-1635-N Slit Wire (OMRON)
Recommended Wire: UL1007 AWG#26-28
OR
Housing: XG4M-1630-T Flat Cable (OMRON)
Recommended Wire: UL2651 AWG#28
Pin No. Signal Name
I/O
*
*. I/O (input/output) is the terminal as viewed from the Banknote Acceptor’s backside.
Function
1 +12V/+24V -
Power Supply
2 GND
-
GND
3 +12V/+24V
-
Power Supply
4 GND
-
GND
5 TTL - TXD
OUT
TTL Communication Output Signal Line
6 SG
-
Signal GND
7 TTL - RXD
IN
TTL Communication Input Signal Line
8 ccTalk TXD/RXD
IN/OUT
No Connection
9 MDB - TXD
OUT
No Connection
10 MDB - RXD
IN
No Connection
11 MDB COM
-
No Connection
12 I/F 12V No Connection
13 PC - TXD
OUT
No Connection
14 I/F GND
-
No Connection
15 SW - IN
IN
No Connection
16 PC - RXD
IN
No Connection
