Series Banknote Acceptor (EBA-40) Integration Guide
Operational Flowchart (Continued 1)

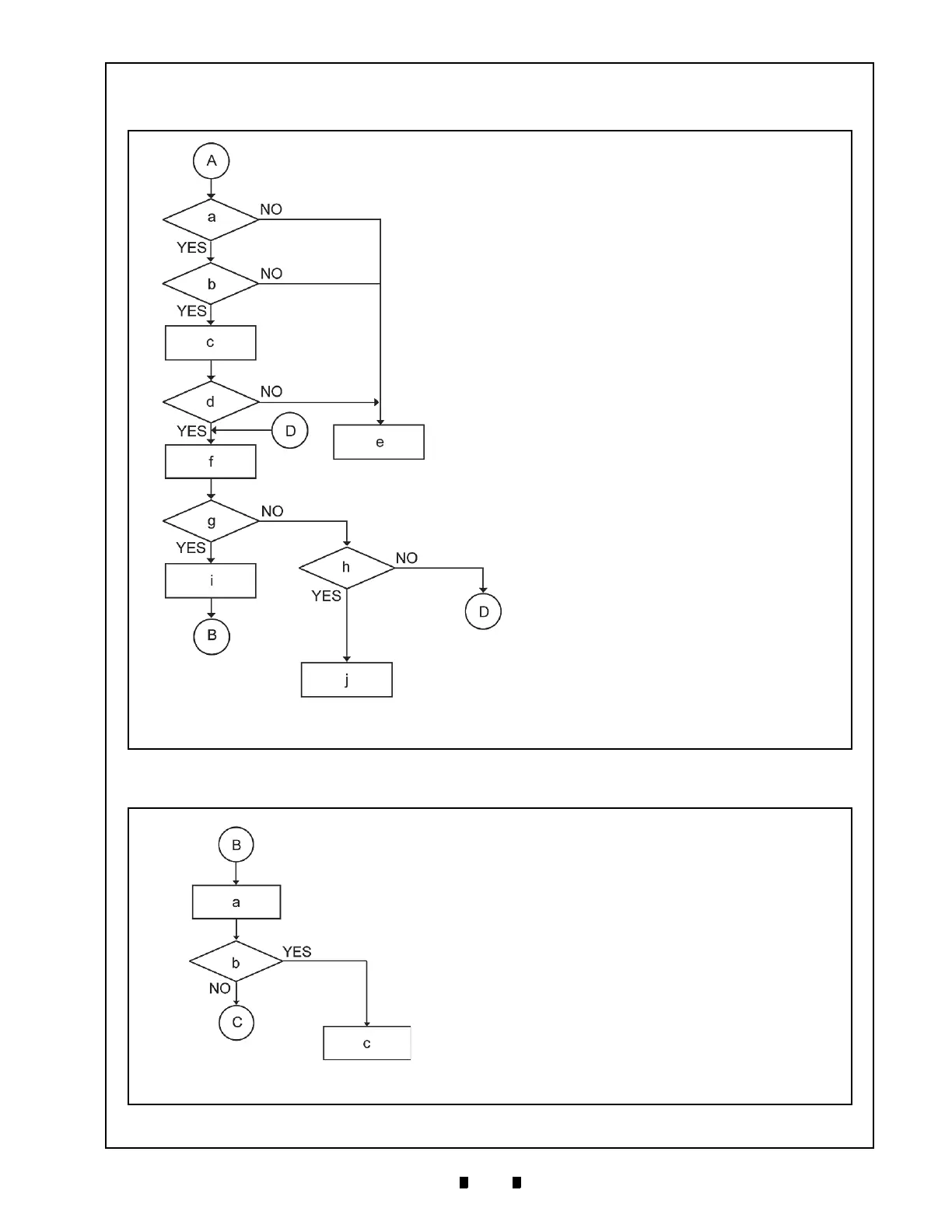

Figure 27 depicts Part Two of a typical EBA-40 Validation Banknote acceptance flow process.
Figure 28 depicts Part Three of a typical EBA-40 Stacking Banknote acceptance flow process.
a) Is the Banknote Authentic?
b) Is the Banknote acceptable?
d) Has STACK Command been received?
D) To “f” function on this chart
e) Return the Banknote
h) Retried Acceptance Operation three times?
i) VEND Signal Output?
j) Stop operation (Abnormal Signal Output)(*1)
A) From “Initialize” Flow (See Figure 26)
c) Denomination Signal Output?
g) Is the Banknote transported to Stacker?
D) To “f” function on this chart
f) Transporting the Banknote
B) To “Stacking” Flow (See Figure 28)
*1). When an abnormal signal is received, remove and reapply Power to the EBA-40 Unit after resolving the problem, or send
a RESET Command from the Host Machine.
Figure 27 EBA-40 Operational Flowchart (Validation)
a) Stack the Banknote
b) Is the Cash Box full?
c) Stop operation (Stacker Full Signal Output)(*2)
B) From “Validation” Flow (See Figure 27)
C) To “Initializing” flow (See Figure 26)
*2). When a “Cash Box Full” Signal is received, retrieve the Banknotes from the Cash Box and re-seat the Cash Box back into
the Unit. The EBA-40 Unit will automatically perform its re-initialization movement operation.
Figure 28 EBA-40 Operational Flowchart (Stacking)
