JCM EBA Series - CONNECTOR PIN ASSIGNMENTS (Continued 4); Table 14 EBA-40 RS232 C Interface Pin Assignments; Table 15 EBA-40 CN13 RS232 C Connector Pin Assignments

P/N 960-000173R_Rev. A {EDP #229278} © 2013, JAPAN CASH MACHINE CO., LTD.
15
EBA
®
Series Banknote Acceptor (EBA-40) Integration Guide
CONNECTOR PIN ASSIGNMENTS (Continued 4)
Table 14 lists the EBA-40 RS232C Interface Pin Assignments.
Table 15 lists the EBA-40 CN13 RS232C Connector Pin Assignments.

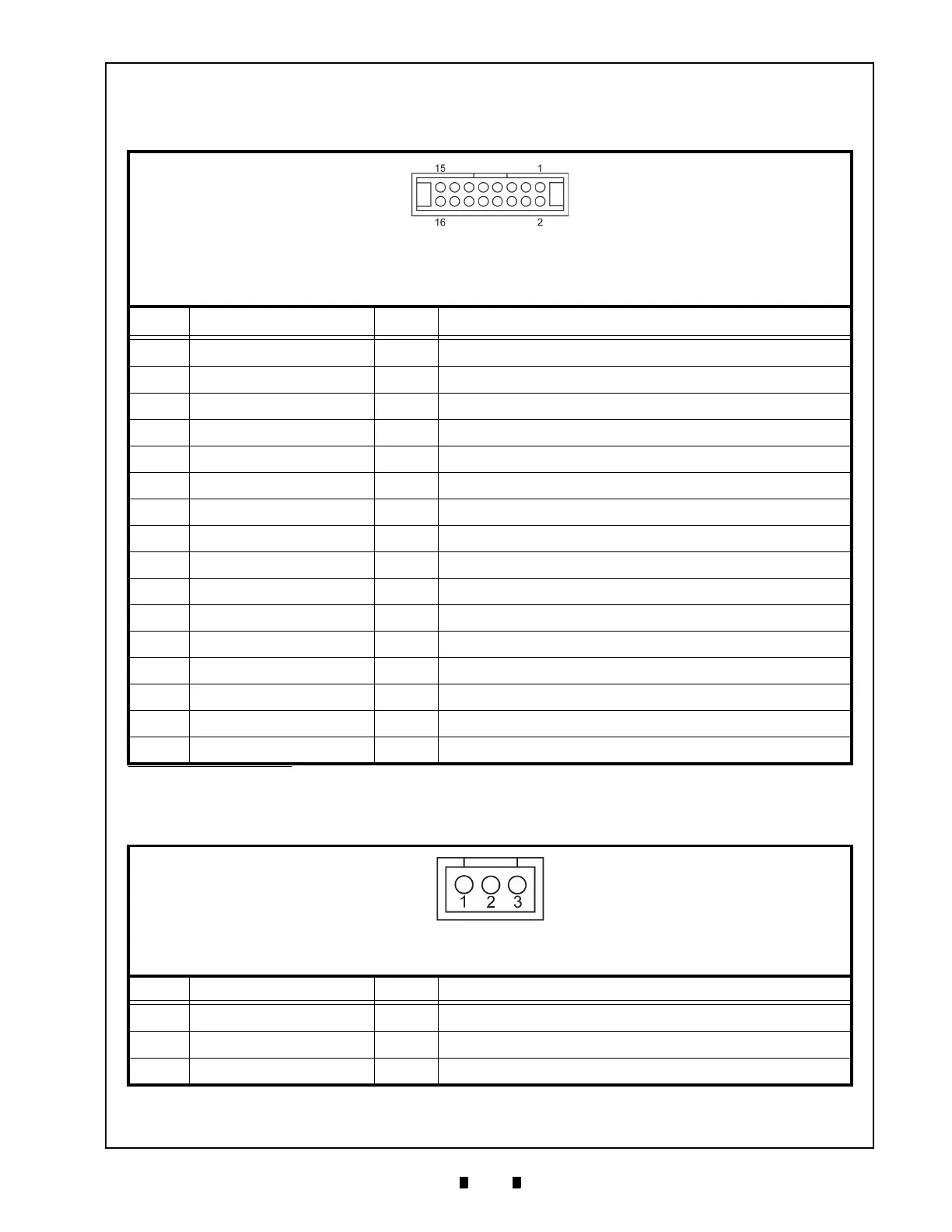

Table 14 EBA-40 RS232C Interface Pin Assignments
Header: XG4C-1634 (OMRON)
Housing: XG5M-1635-N Slit Wire (OMRON)
Recommended Wire: UL1007 AWG#26-28
OR
Housing: XG4M-1630-T Flat Cable (OMRON)
Recommended Wire: UL2651 AWG#28
Pin No. Signal Name
I/O
*
*. I/O (input/output) is the terminal as viewed from the Banknote Acceptor’s backside.
Function
1 +12V/+24V -
Power Supply
2 GND
-
GND
3 +12V/+24V
-
Power Supply
4 GND
-
GND
5 TTL - TXD
OUT
No Connection
6 SG
-
No Connection
7 TTL - RXD
IN
No Connection
8 ccTalk TXD/RXD
IN/OUT
No Connection
9 MDB - TXD
OUT
No Connection
10 MDB - RXD
IN
No Connection
11 MDB COM
-
No Connection
12 I/F 12V No Connection
13 PC - TXD
OUT
No Connection
14 I/F GND
-
No Connection
15 SW - IN
IN
No Connection
16 PC - RXD
IN
No Connection
Table 15 EBA-40
CN13 RS232C Connector Pin Assignments
Header: 53426-0310 (MOLEX)
Housing: 51103-0300 (MOLEX)
Contact: 50351-8000
Recommended Wire: UL1007 AWG#22-28
Pin No. Signal Name I/O Function
1 RS232C - TXD OUT
RS232C Communication Output Signal Line
2 RS232C - RXD
IN
RS232C Communication Input Signal Line
3 SG
-
Signal GND
