JCM EBA Series - CONNECTOR PIN ASSIGNMENTS (Continued 6); Table 17 EBA-40 CN3 Mini-B Connector Pin Assignments; Table 18 EBA-40 CN2 Bezel Connector Pin Assignments

P/N 960-000173R_Rev. A {EDP #229278} © 2013, JAPAN CASH MACHINE CO., LTD.
17
EBA
®
Series Banknote Acceptor (EBA-40) Integration Guide
CONNECTOR PIN ASSIGNMENTS (Continued 6)

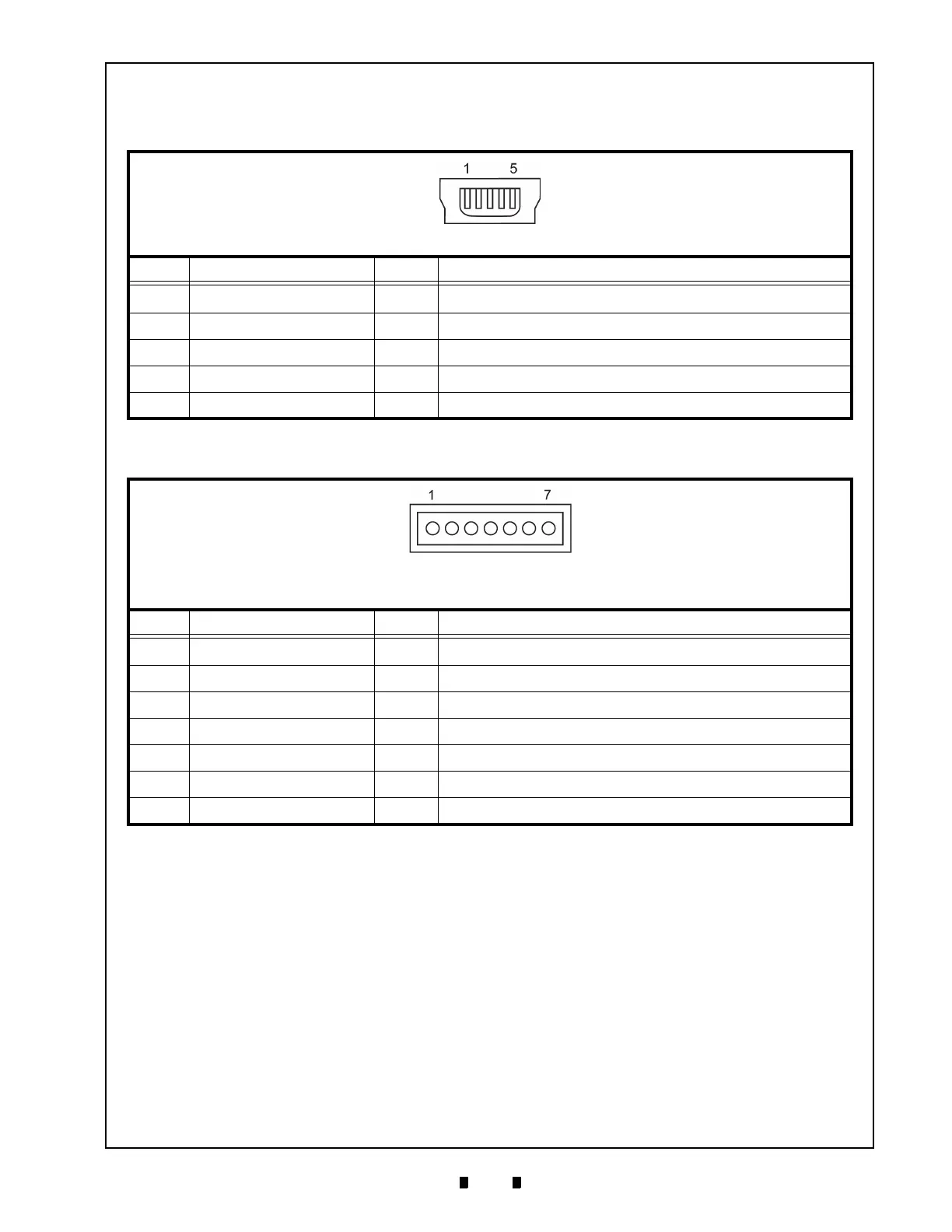

Table 17 lists the EBA-40 CN3 mini-B Connector Pin Assignments.
Table 18 lists the EBA-40 CN2 Bezel Connector Pin Assignments.
Table 17 EBA-40 CN3 mini-B Connector Pin Assignments
Header: MNC20-5K5P10 [USB mini-B Type] (ACON)
Housing: USB mini-A Type
Pin No. Signal Name I/O Function
1 Vbus -
USB Communication Vbus Signal Line
2 D-
-
USB Communication Input/Output Signal Line
3 D+
IN/OUT
USB Communication Input/Output Signal Line
4 -
IN/OUT
No Connection
5 USB GND
-
USB Communication GND
Table 18 EBA-
40 CN2 Bezel Connector Pin Assignments
Header: S7B-ZR-3.4 (JST)
Housing: ZHR-7 (JST)
Contact: SZH-002T-P0.5 (MOLEX)
Recommended Wire: UL1061 AWG#26-28
Pin No. Signal Name I/O Function
1 +12V -
Power Suppl
2 GND
-
GND
3 BZLED_1
-
LED Drive Line (Cathode)
4 BZLED_2
-
LED Drive Line (Cathode)
5 BZLED_3
-
LED Drive Line (Cathode)
6 BZLED_4
-
LED Drive Line (Cathode)
7 BZLED_5
-
LED Drive Line (Cathode)
