Johnson Controls FMS-2000C - Pressure Input Configuration; Parameter and Sensor Type Setup; Max;Min Pressure Input Specification

FMS-2000C
LIT-12013508
23
DIP switch ON or OFF Input or output conguration
S1 position 1 ON AI-1 set as 4 mA to 20 mA input
S1 position 5 OFF
S1 position 2 ON AI-2 set as 4 mA to 20 mA input
S1 position 6 OFF
S1 position 3 ON AI-3 set as 4 mA to 20 mA input
S1 position 7 OFF

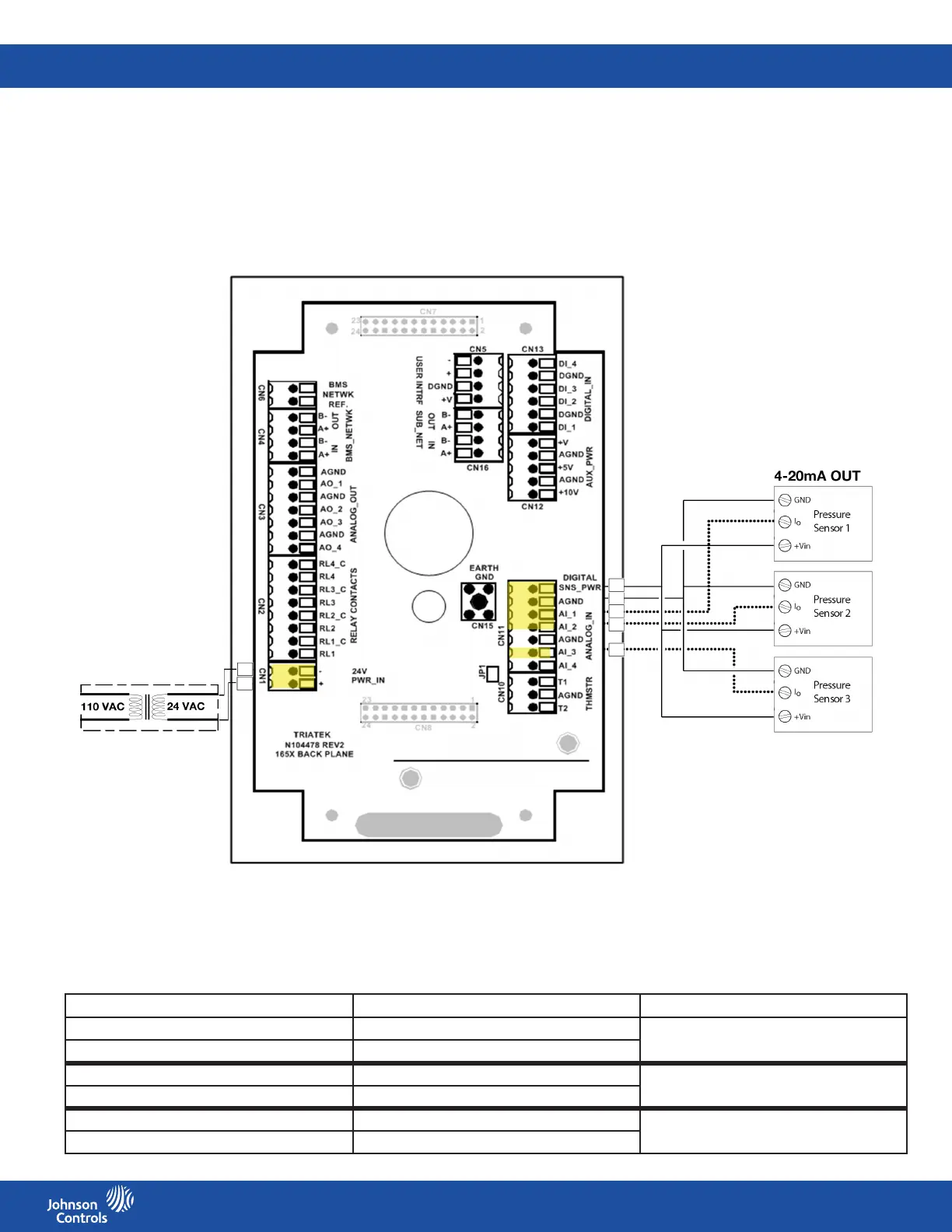

Figure 17: Wiring the analog input to three remote pressure sensors with a 4 mA to 20 mA output signal
Table 10: Controller conguration DIP switch settings
Step Down
Isolation Transformer
