Johnson Controls FMS-2000C Installation Guide

FMS-2000C
LIT-12013508
24
DIP switch ON or OFF Input or output conguration
S1 position 1 ON AI-1 set as 4 mA to 20 mA input
S1 position 5 OFF
S1 position 2 ON AI-2 set as 4 mA to 20 mA input
S1 position 6 OFF
S1 position 3 ON AI-3 set as 4 mA to 20 mA input
S1 position 7 OFF
S1 position 4 ON AI-4 set as 4 mA to 20 mA input
S1 position 8 OFF

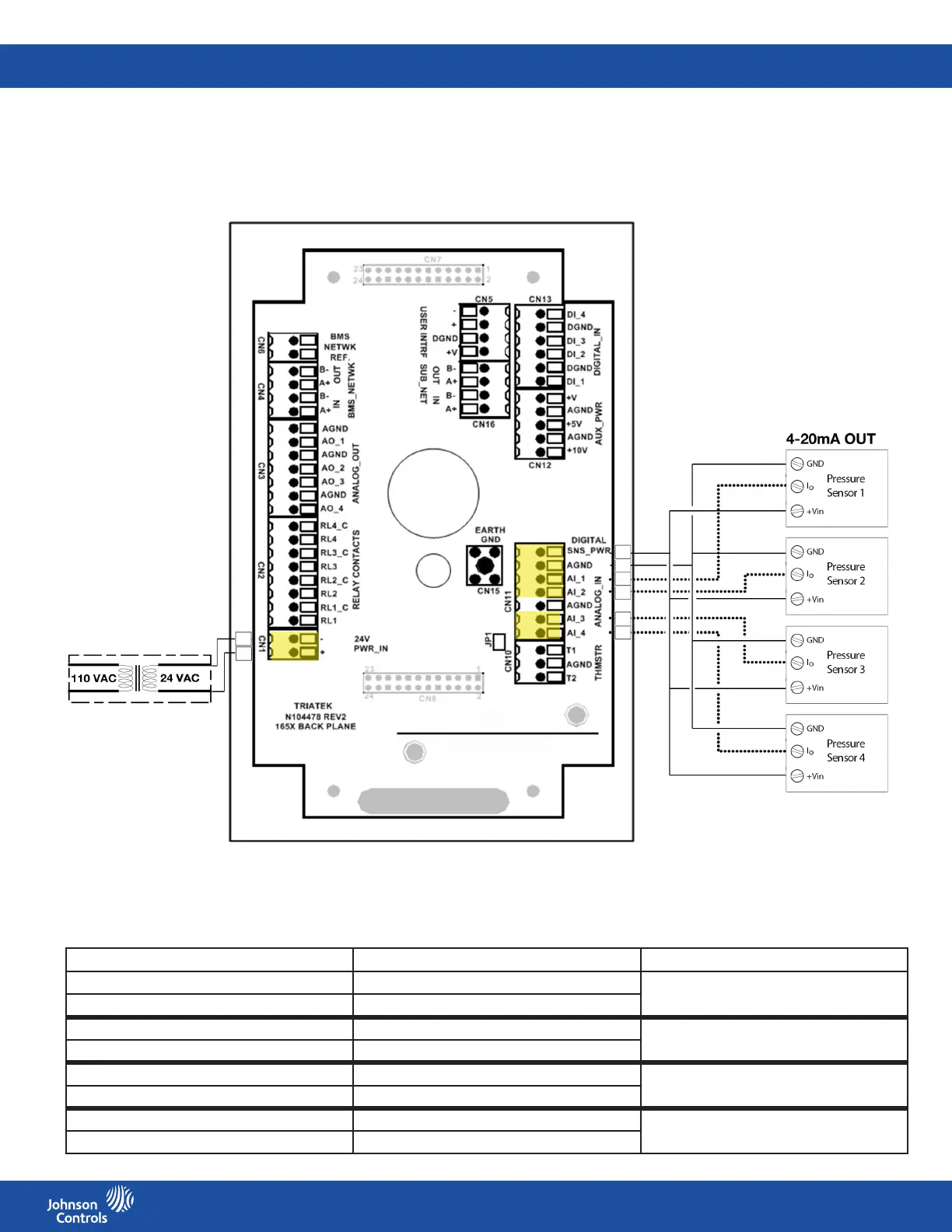

Figure 18: Wiring the analog input to four remote pressure sensors with a 4 mA to 20 mA output signal
Table 11: Controller conguration DIP switch settings
Step Down
Isolation Transformer
