OPTIONAL PARTS
5-8
TC-15001-rev.3
Ɣ6WUXFWXUHRI(DFK+RRG
< Hood for Air Outlet and Rear Side Air Inlet (72,000 Btu/h) >
• Hood for Air Outlet
• Hood for Rear Side Air Inlet
No. Item Qty.
1 Right Side Plate 1
2 Left Side Plate 1
3 Faceplate (1) 1
4 Faceplate (2) 1
5 Faceplate (3) 1
6 Horizontal Plate 1
7 Fixing Plate for Left Side (Front Side) 1
8 Fixing Plate for Left Side (Rear Side) 1
9 Fixing Plate for Right Side (Front Side) 1
10 Fixing Plate for Right Side (Rear Side) 1

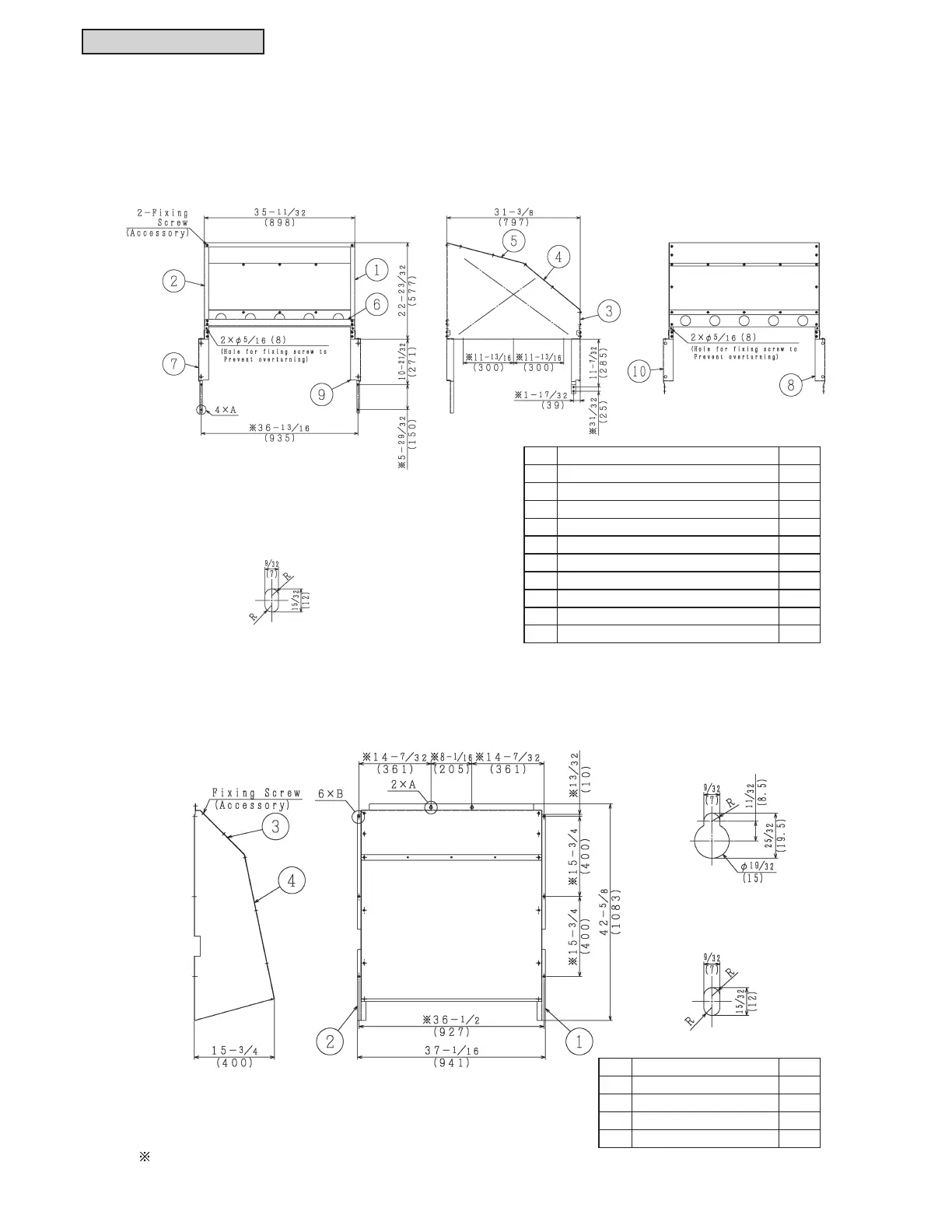

: Installation Dimension
Unit: inch (mm)
No. Item Qty.
1 Right Side Plate 1
2 Left Side Plate 1
3 Faceplate (Top Side) 1
4 Faceplate (Bottom Side) 1
Details of A
Details of A
Details of B
