Hardware Installation—Installing the
IFC-1010/2020
16 Pins
16 Pins
ICA-4L
16-position
Receptacle
16-position Receptacle
ica2lib1
16 Pins

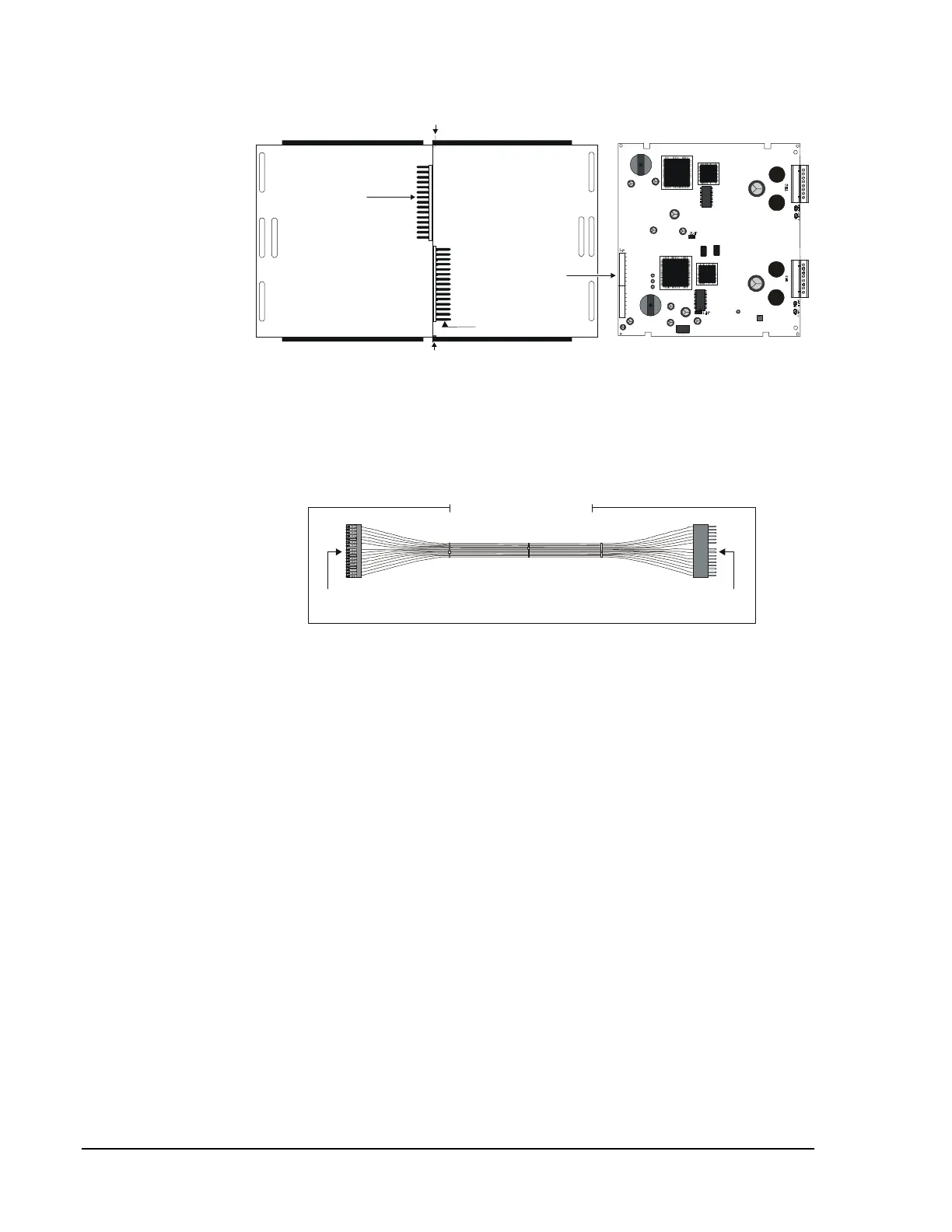

Figure 11: ICA-4L 16-position Receptacle Connections
Expansion power cable, Part Number 75379, is able to mate properly with
the ICA-4L since it consists of a 16-pin plug and a 16-position receptacle
(Figure 12).
Expansion Power Cable
Part Number 75379
16-position
Receptacle
16-position
Plug
cbl75379
Figure 12: Expansion Power Cable, Part Number 75379
