Johnson Controls IFC-1010 User Manual

Hardware Installation—Installing the IFC-1010/2020
23
On Line
Line
Trouble
Phone
Trouble
Page Mode
Page
P5
Audio
P4
AMG
P3
P2 P1
8 7 6 5 4 3 2 1
AUDIO LEVEL
ALL CALL
ON LINE
TROUBLE
ALL
CALL
6 5 4 3 2 1
6 5 4 3 2 1
Voice Telephone Communication Center
Main
Power
Supply
Power Cable
Part Number 75378
Expansion Power Cable
Part Number 75379
ICA-4L
ICA-4L
Ica2cx

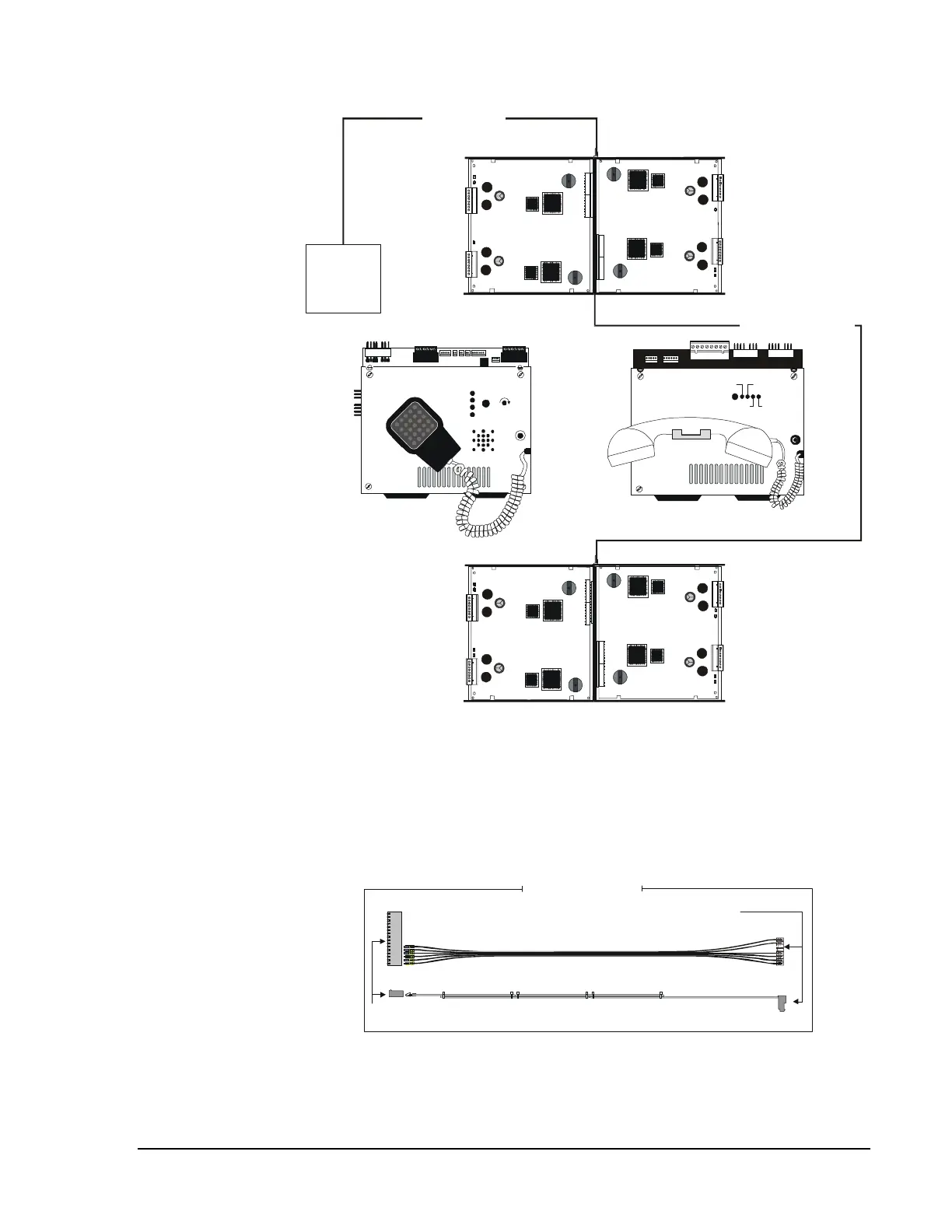

Figure 13: Connecting Two ICA-4Ls Chassis
The power cable, Part Number 75378, (refer to Figure 14) is able to mate
properly with the ICA-4L since it has a 16-position receptacle. The power
cable also has an 8-position receptacle to connect to the main power
supply (refer to Figure 14).
Power Cable
Part Number 75378
16-position
Receptacle
Side View
Top View
cable2
Connects To
Main Power Supply
Figure 14: Power Cable, Part Number 75378
