Hardware Installation—Installing the IFC-1010/2020
Figure 24 depicts a CAB-C3 cabinet used with LIB-400 modules
exclusively, which means it may house a maximum ten loop IFC-2020
system. AN ICA-4L or ICA-4 chassis (neither of which is shown in the
figure) is required for mounting the LIB-400.
lib400pl ex
SIB CPU
MPS-24A
Batteries
CHS-4/4L
A B C D
Loop 1
Loop 5
Loop 10
Loop 3
Loop 8
Loop 7
Loop 2
Loop 9
Loop 4

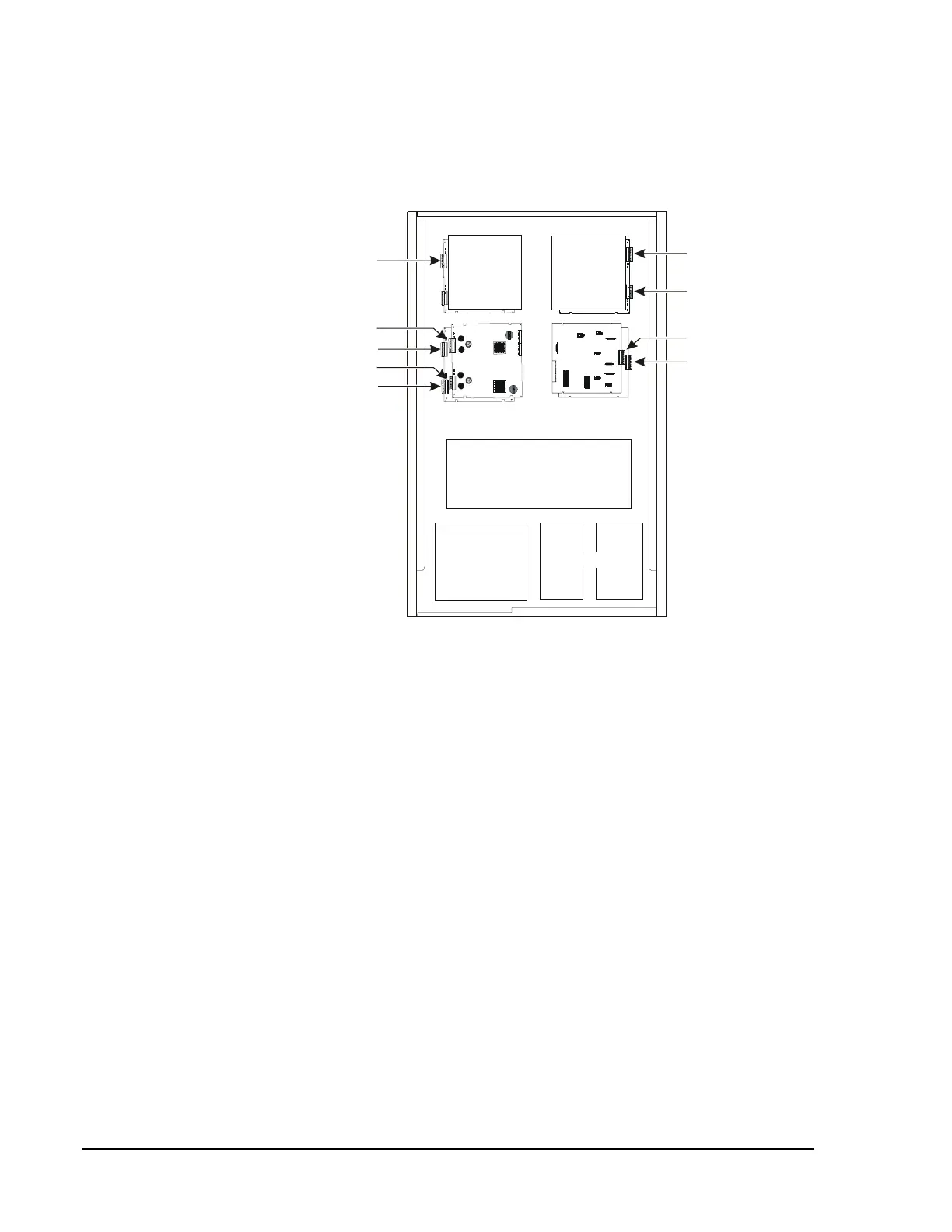

Figure 24: LIB-400 Placement in an IFC-2020
