Hardware Installation—Installing the IFC-1010/2020
33
Figure 25 depicts the IFC-2020 with a combination of LIB-400,
LIB-200A, and LIB-200 modules installed in the first and second rows of a
CAB-C3 cabinet.
N34
Two ICA chassis are required, but are not shown in
the figure. Various combination of LIB boards may be installed (refer to
Figure 23) as long as the following measures are taken:
•
Do not install duplicate loop numbers.
•
When installed in the ICA the LIB-200 always occupies the lower
number address for a given ICA position.
lib400pl
MPS-24A
Batteries
CHS-4/4L
A B C D
Loop 1
(LIB-200A)
Loop 5
Loop 10
Loop 3
Loop 8
(LIB-400)
Loop 7 (LIB-400)
Loop 2 (LIB-400)
Loop 4 (LIB-200)
Loop 6 (LIB-200)
SIB CPUCPU

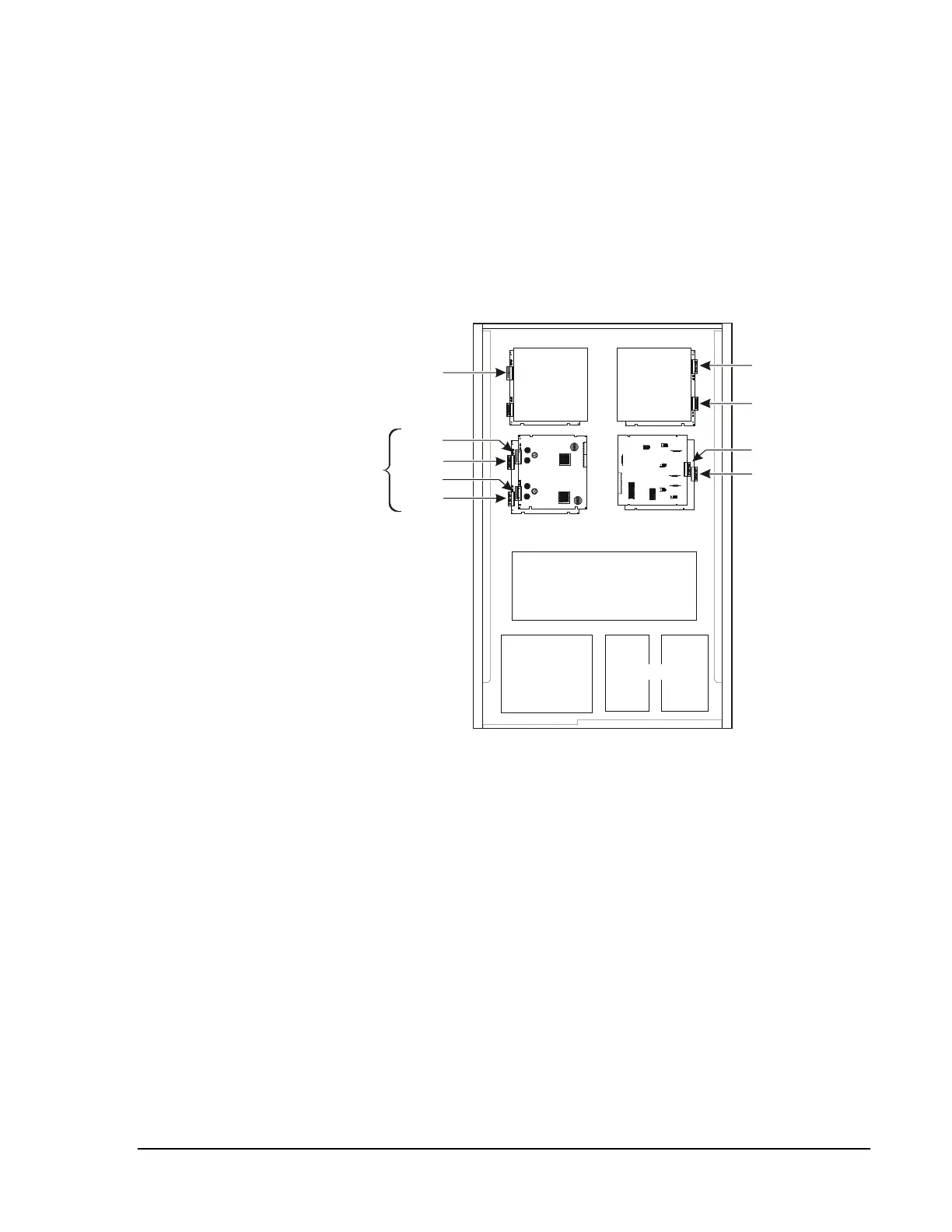

Figure 25: LIB Placement Examples in an IFC-2020
