System Overview Product Diagram
The keyboard/display
assembly is shown in
Figure 2.2. As shown in
Figure 2.3, LEDs on the
keyboard/display are
repeated on the printed
circuit board. This
enables operation and
trouble-shooting when
the panel is used
without the display
assembly.
2.3.1 Main Power Supply
The AMPS-24/E addressable main power supply provides a total of 4.5 A to the CPU. During
normal operation it recharges batteries ranging in capacity from 25 to 200 amp-hours. Refer to the
AMPS-24/E Manual for details.
Refer to Appendix A, “Electrical Specifications” to determine whether your system requires an
auxiliary power supply.
Figure 2.2 JCPU-3030D (Shown with Two Annunciators)
CPU-3030D-ACS.cdr

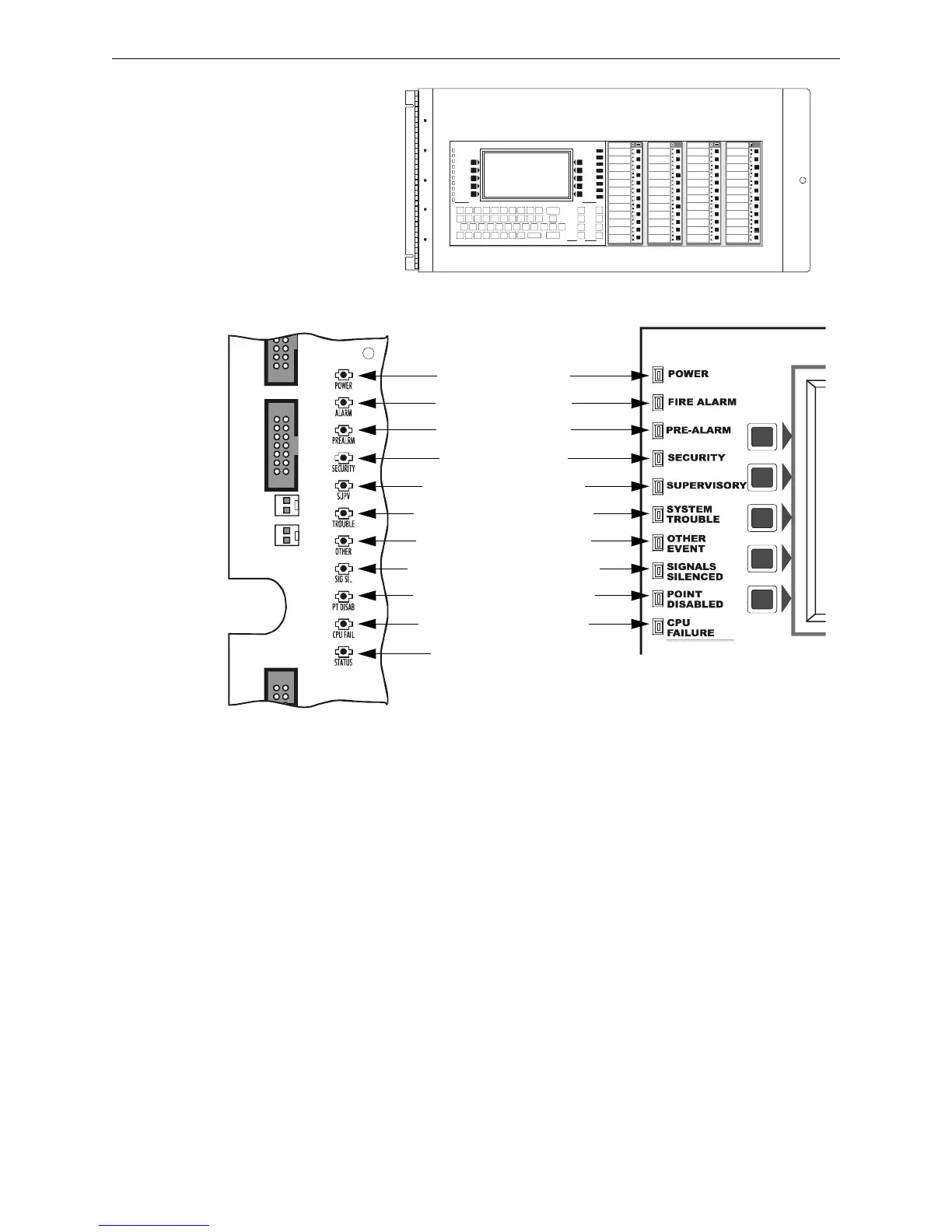

Figure 2.3 Status Indicator LEDs
LED1 Power (Green)
LED3 Fire Alarm (Red)
LED8 Pre-Alarm (Red)
LED7 Security (Blue)
LED9 Supervisory (Yellow)
LED6 System Trouble (Yellow)
LED10 Other Event (Yellow)
LED11 Signals Silenced (Yellow)
LED12 Point Disabled (Yellow)
LED5 CPU Failure (Yellow)
LED4 Factory Use Only
LEDs on Printed Circuit Board LEDs on Keypad
3030-leds.cdr, 3030keypadleds.cdr
