IFC-3030 Installation Manual — P/N 52024:C 08/05/2005 25
Attaching Panel Circuit Modules Installation
5. For the top (fourth) layer of option boards, slide the tab at the bottom of the board into the slots
on the chassis, and lay the board back onto the top of the chassis so that the studs line up with
mounting holes on the option board. Securely fasten all stand-offs with screws provided with
module.
6. If mounting the option board behind a blank module plate in a dress plate or annunciator
backbox, see the BMP-1 Product Installation Drawing for details. This dress plate is suitable
for option boards, which do not need to be visible or accessible when the door is closed.
7. If mounting a pair of loop control/expander modules, see Section 3.14.2 “Loop Control
Module, Loop Expander Module”.
3.7 Attaching Panel Circuit Modules
3.7.1 Overview
If installing panel circuit modules into a CAB-4 Series backbox, mount and connect those boards at
this time. This section contains general instructions for mounting a panel circuit module; see the
sections about individual panel circuit modules for module-specific instructions. For voice alarm/
evacuation applications (VCM-4RK and DCM-4RK), see the Voice Alarm System Manual.
• Mount an optional expander board to the module.
• Install the panel module onto a chassis.
• Connect ribbon cables from CPU.
• Connect ICM-4RK and ICE-4 modules to the power supply.
• Connect NACs, IDCs, and relays; write any non-power-limited relay connections on door
label.
• Field wire the module.
• After powering up the system, program the panel.
• Type your point-programming information onto the slide-in labels provided with your panel
circuit module or create custom labels with LabelEase (available from Notifier); insert these
labels into the slots at the top of the module.

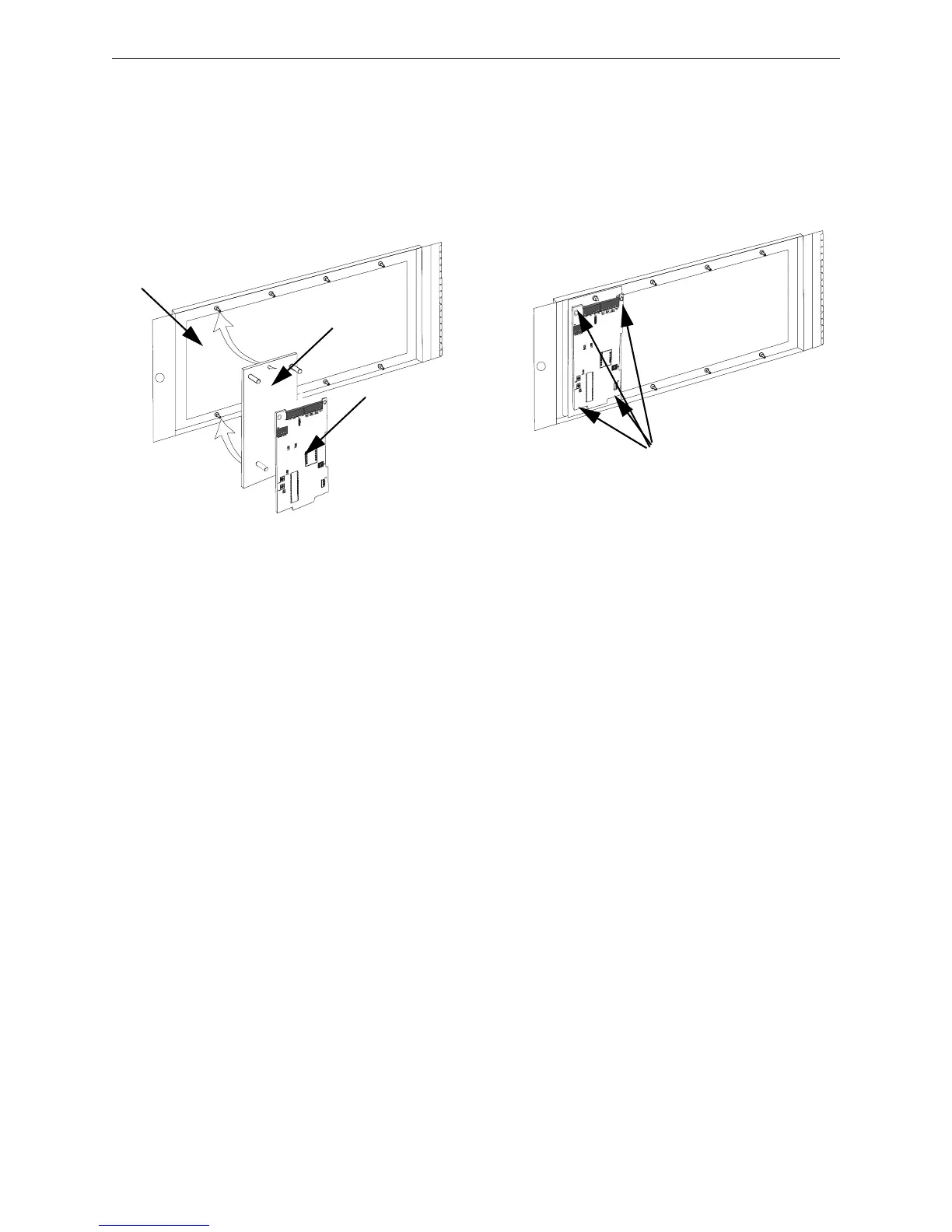

Single-space
blank plate
Fasten option board to the
plate with four screws
(included).
tm4adp4.cdr
Mount option board
onto stand-offs on the
blank plate
Mount single-space blank plate
onto compatible dress panel
Note: Mounting instructions for option boards are the same in various dress panels.
Figure 3.6 Mounting Single-space Blank Plate with Option Board
